Chapter 7 Reduction and Reversing Gear
.::4.:... D;;:;;;is;:::a;;:;ss~e~m::.:b;:.:l,:_Y ___________________________ 3,4]H3(B)(C)E

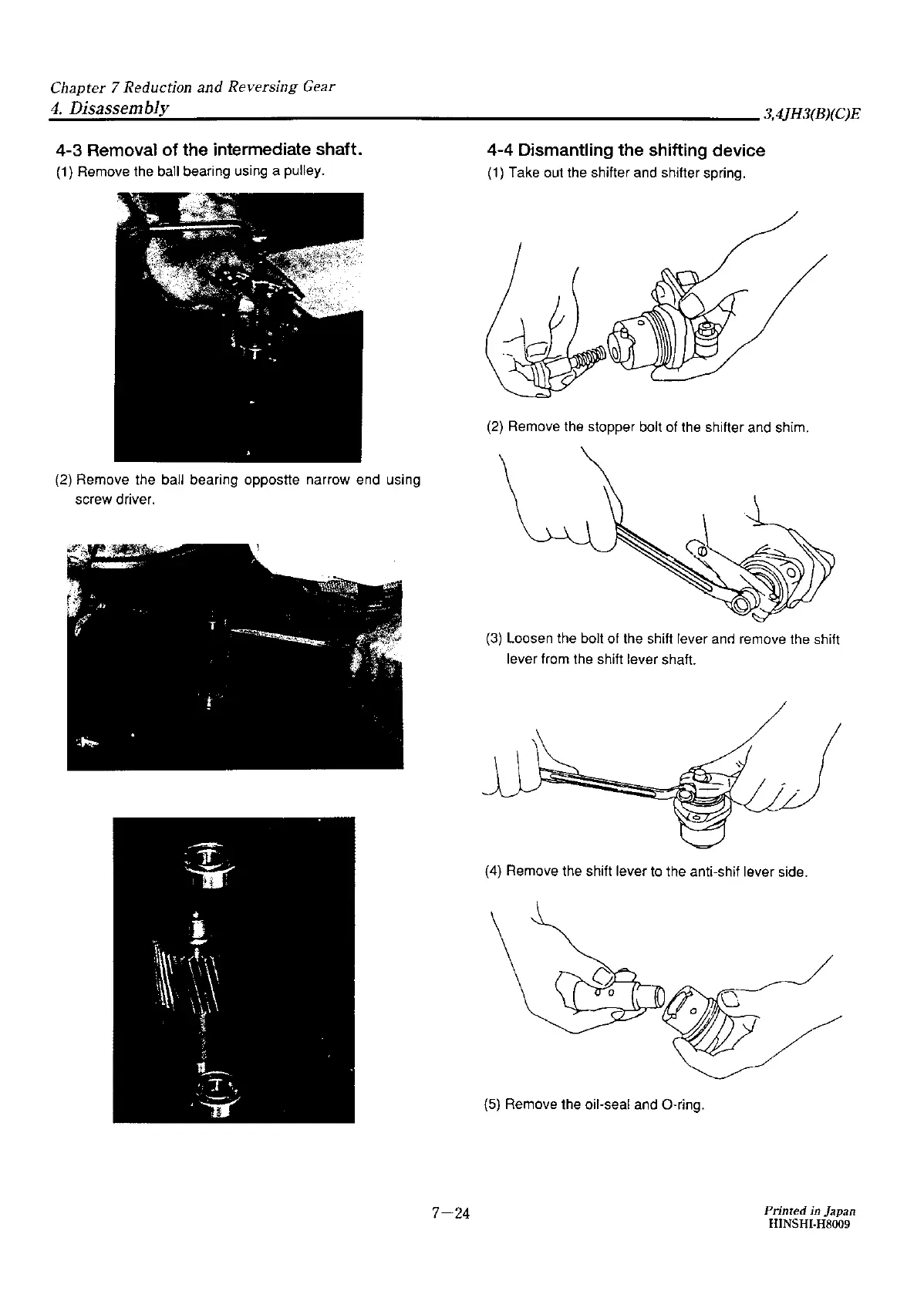

4-3 Removal of the intermediate shaft.
(1) Remove the ball bearing using a pulley.
(2) Remove the ball bearing opposite narrow end using
screw driver.
7-24
4-4 Dismantling the shifting device
(1) Take out the shifter and shifter spring.
(2) Remove the stopper bolt of the shifter and shim.
(3) Loosen the bolt of the shift lever anrl remove the shift
lever from the shift lever shaft.
J
(4) Remove the shift lever to the anti-shit lever side.
(5) Remove the oil-seal and O-ring.
Printed in Japan
IIINSIII-H8009
