Chapter 7 Reduction and Reversing
Gear
_::;4,~D:;;,:.:is:::,a~ss:,:;e:::,m;;.:b;;.lY::,_
__________________________
3,4JH3(B)(C)E
(3)

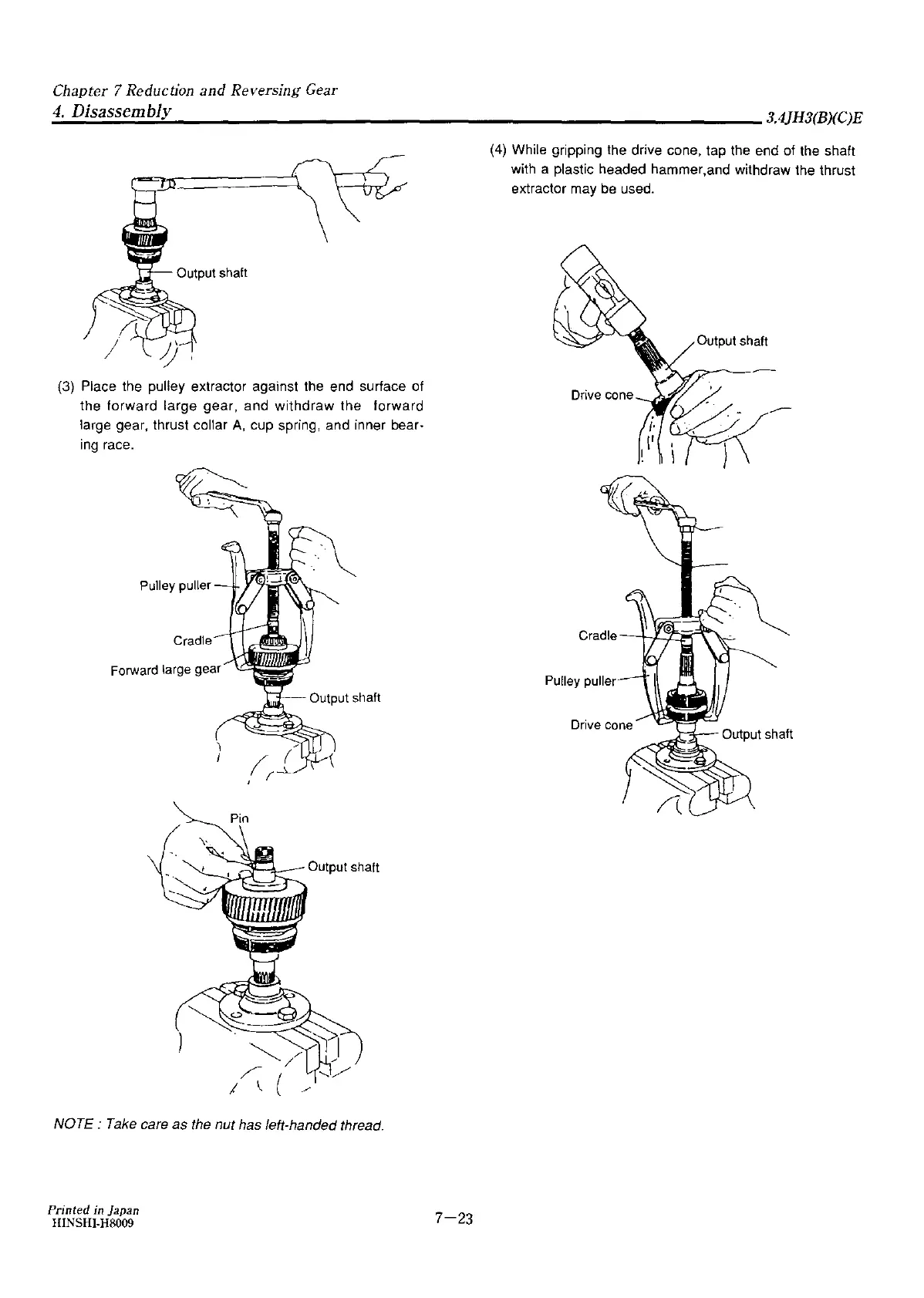

Place the pulley extractor against the end surface of
the forward large gear, and withdraw the forward
large gear, thrust collar
A,
cup spring, and inner bear-
ing
race.
Forward
large
gear
NOTE : Take care
as
the nut has left-handed thread.
Printed
in
Japan
IIINSHI-H8009
7-23
(4)
While gripping the drive cone, tap the end of the shaft
with a plastic headed hammer.and withdraw the thrust
extractor may
be
used.
Output
shaft
