Chapter 7 Reduction and Reversing
Gear
_s_.
R_ea_s_s_em_b
...
ly
___________________________
3,4]H3(B)(C)E

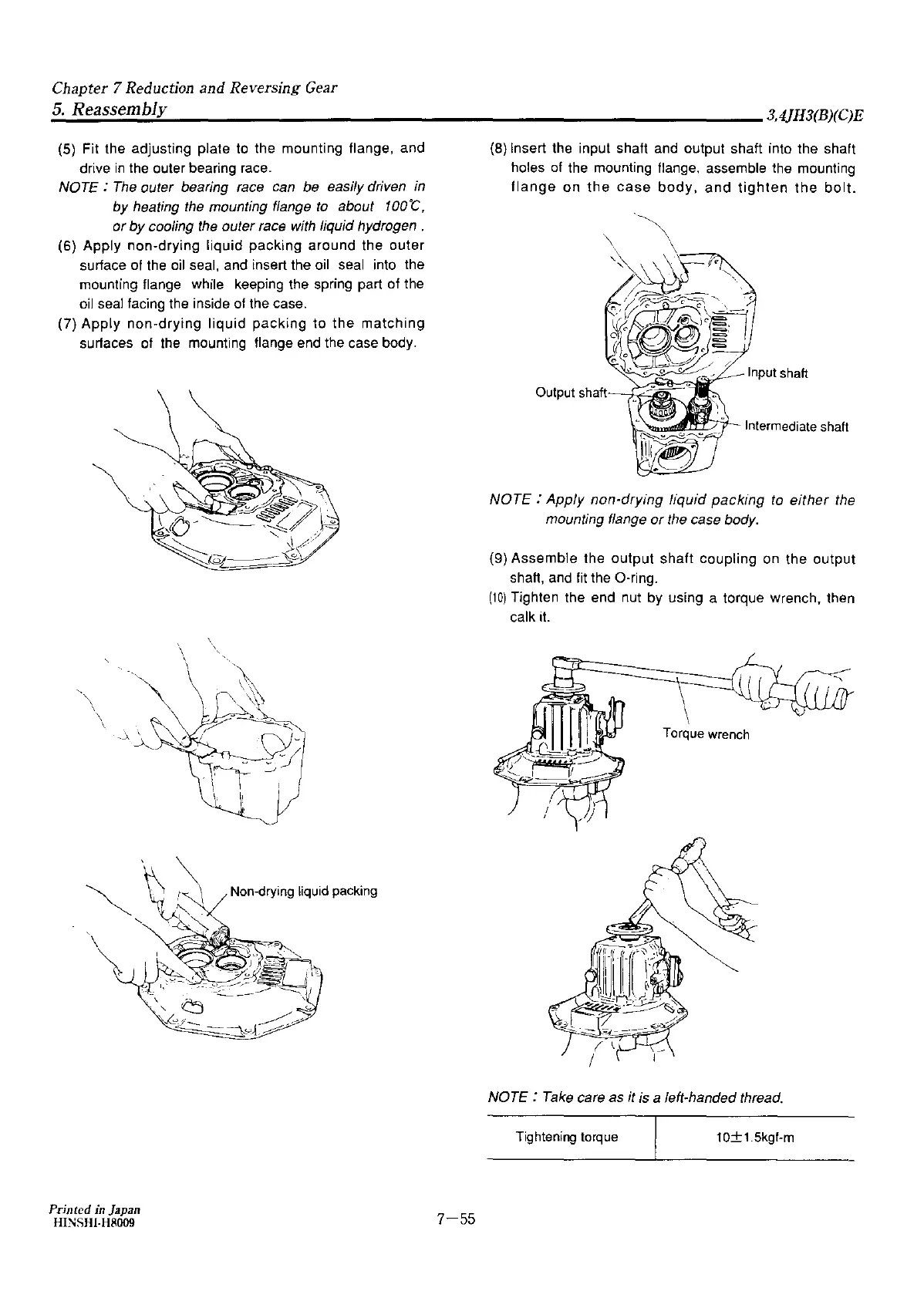

(5) Fit the adjusting plate to the mounting flange, and
drive
in
the outer bearing race.
NOTE :
The
outer bearing race can be easily driven in
by
heating the mounting flange
to
about
100"C,
or
by
cooling the outer race with liquid hydrogen .
(6)
Apply
non-drying
liquid
packing
around
the
outer
surface of the oil seal, and insert the oil seal into the
mounting flange while keeping the spring part
of
the
oil seal facing the inside of the case.
(7)
Apply
non-drying
liquid
packing
to
the
matching
surfaces of the mounting tlange end the case body.
Printed in Japan
HINSHI-H8009
\
\
"'
{w.~----
CL~-~~
·-~
\ \
"<
1/
p
Non-drying liquid packing
7-55
(8) Insert the input shaft and output shaft into the shaft
holes of the mounting flange, assemble the mounting
flange
on
the
case
body,
and
tighten
the
bait.
"\
·-,"\
. \
,\
.
'"
\ . ,
"'··
~-s
---.
~
.
ff!!)
put shaft
NOTE
:
Apply
non-drying
liquid
packing
to
either
the
mounting flange
or
the case body.
(9)
Assemble
the
output
shaft
coupling
on the
output
shaft, and fit the O-ring.
(10)
Tighten the end nut by using a torque wrench, then
calk
1t.
Torque
wrench
w.
~
~~
. 7
-~-d-
~
~
r '
I
NOTE:
Take care as
it
is a left-handed thread.
Tightening torque
10±
1.
Skgl-m
To Next Page
