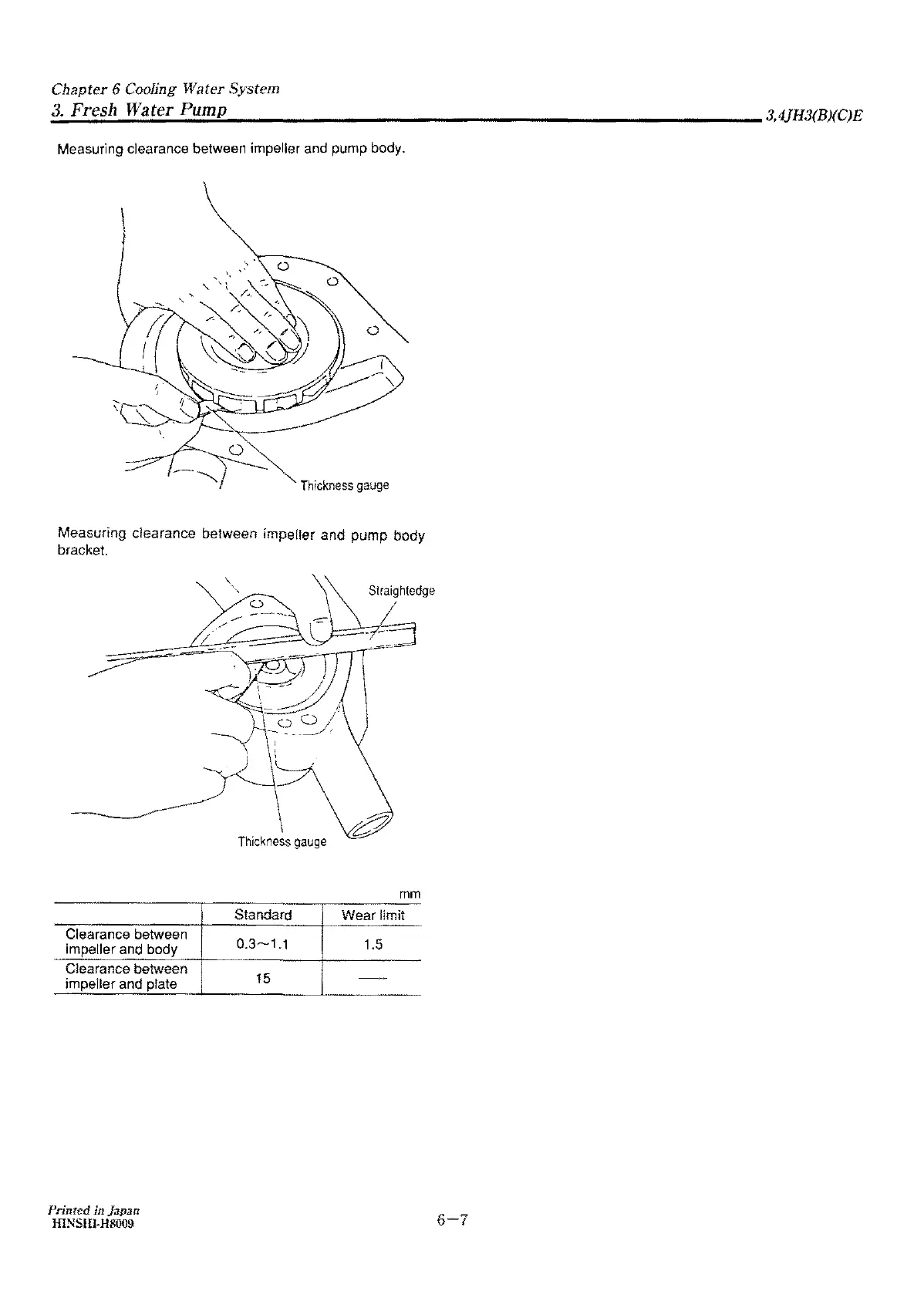

Chapter 6 Cooling Water System
,::.3·:...;F~r~e;;.:;;s.:.:.h...:W.:..a:;;.;t:.:e.:..r.:.P..;;,;u;;;m.:.::p;,_. _______________________ 3,4JH3(B)(C)E
Measuring clearance between impeller and pump body.
Thickness gauge
Measuring clearance between impeller and pump body
bracket.
Clearance between
impeller and body
Clearance between
impeller and plate
Printed in Japan
HINSHI-H8009
Standard
0.3-1.1
15
Straightedge
mm
Wear limit
1.5
--
6-7
