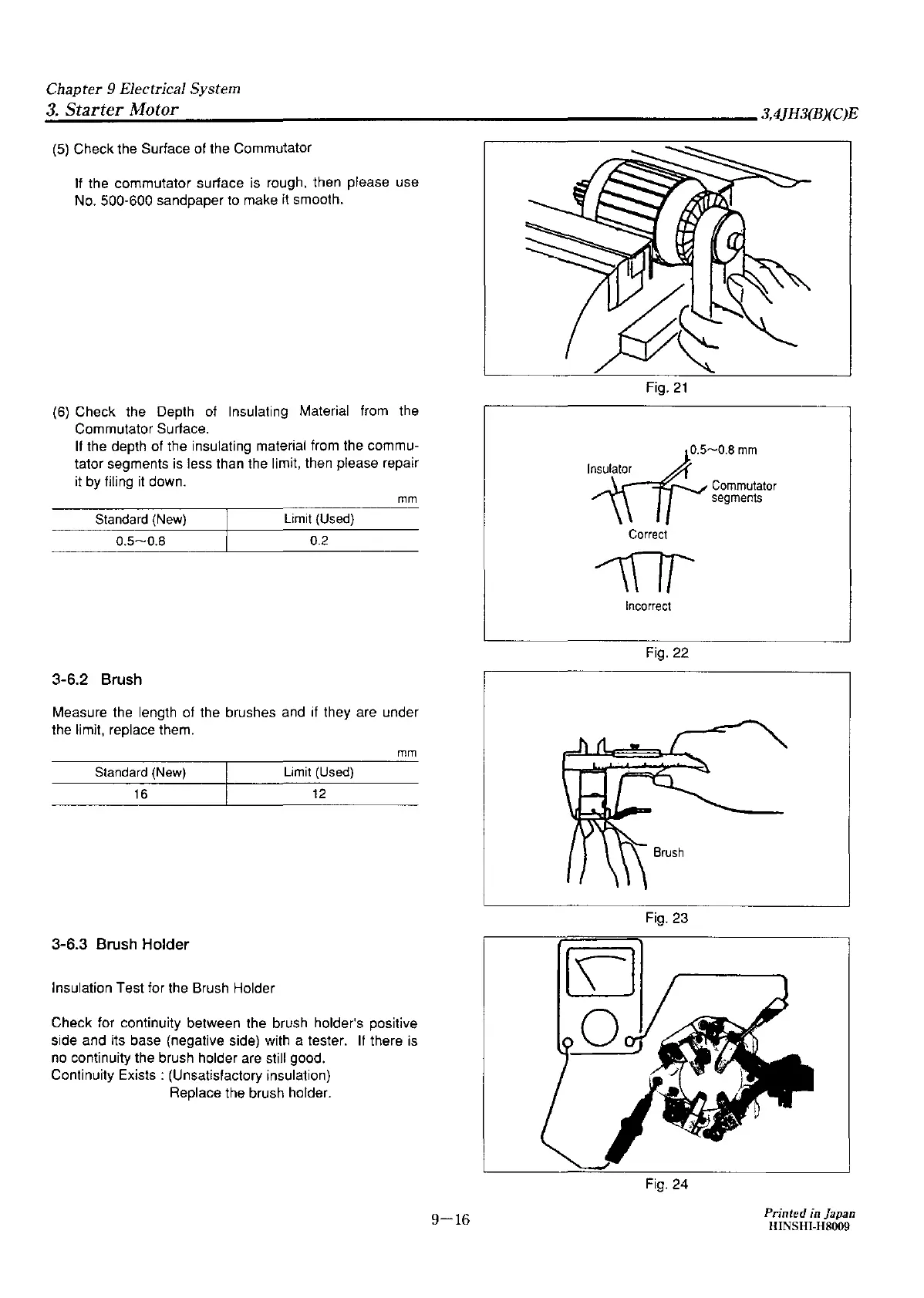

Chapter 9 Electrical
System
.;.3.;..S;;..t;.;;;a.;;.r.;.;;te.;.r...;;M__;_o...;;to_r
__________________________
3,4]H3(B)(C)E
(5) Check the Surface of the Commutator
lf the commutator surface is rough, then please use
No. 500-600 sandpaper to make it smooth.
(6) Check the Depth
of
Insulating Material from the
Commutator Surface.
II
the depth of the insulating material from the commu-
tator segments is less than the limit, then please repair
it by filing
it
down.
mm
Standard (New)
Limit
(Used)
0.5~0.8
0.2
3-6.2
Brush
Measure the length of the brushes and if they are under
the limit, replace them.
mm
Standard
(New)
Limit (Used)
16
12
3-6.3 Brush Holder
Insulation Test for the Brush Holder
Check for continuity between the brush holder's positive
side and its base (negative side) with a tester.
II
there is
no continuity the brush holder are still good.
Continuity Exists : (Unsatisfactory insulation)
Replace the brush holder.
9-16
Fig.
21
05~0.8
mm
In
Correct
Incorrect
Fig.
22
Fig. 23
Fig. 24
Commutator
segments
Printed
in Japan
HINSHI-H8009
To Next Page
