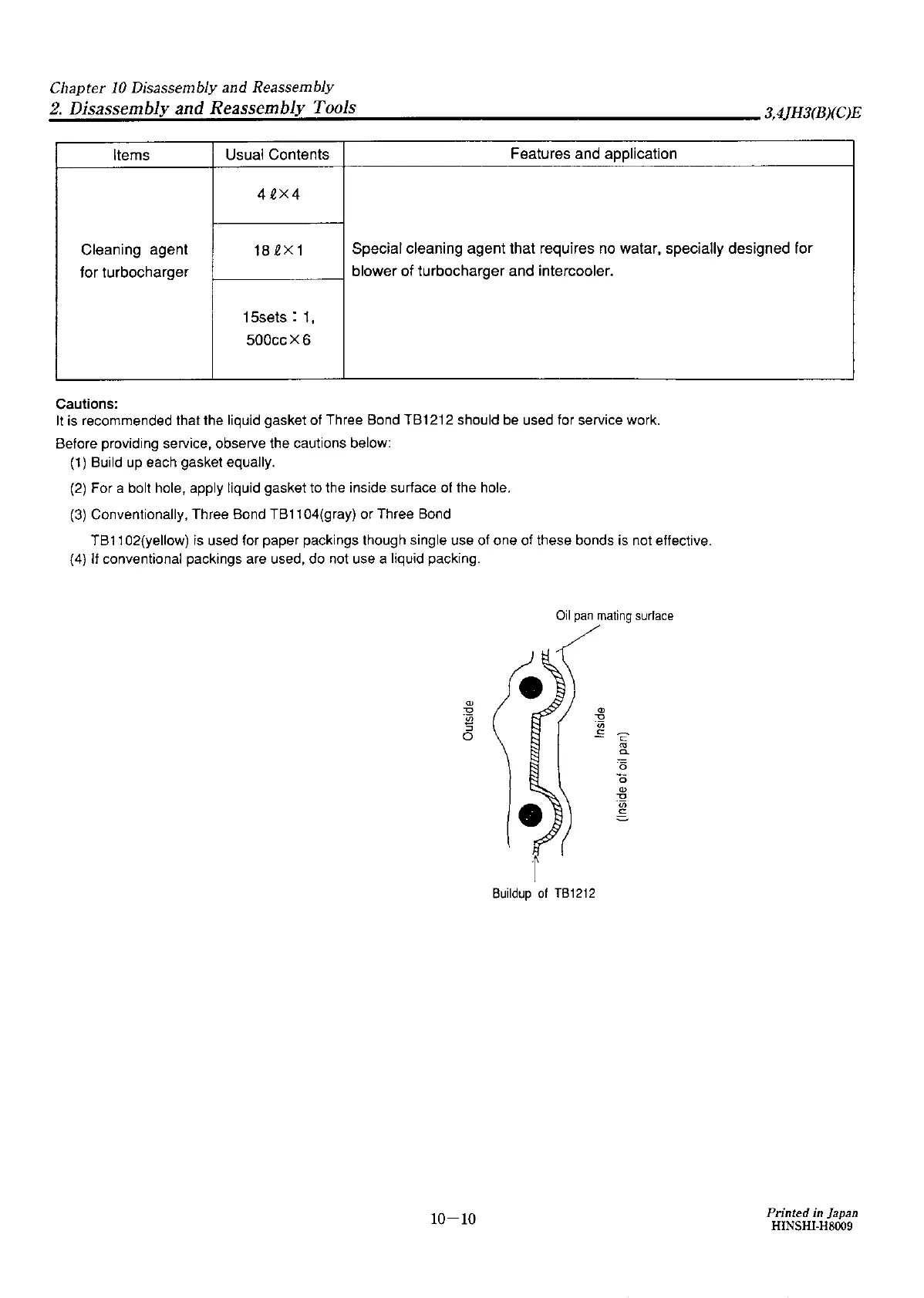

Chapter
10
Disassembly and Reassembly
_2._D_is_a_ss_e_m_b_l.._y_a_n_d_R_e_as_s_e_m_b~ly
__
T_o_o_ls
___________________
3,4JH3(B)(C)E
Items
Usual
Contents
Features
and
application
42X4
Cleaning
agent
18
2X
1
Special
cleaning
agent
that
requires
no
watar,
specially
designed
for
for
turbocharger
blower
of
turbocharger
and
intercooler.
15sets
: 1,
500ccX6
Cautions:
It
is recommended that the liquid gasket of Three Bond TB 1212 should be used for seNice work.
Before providing service, observe the cautions below:
(1) Build up each gasket equally.
(2)
For a bolt hole, apply liquid gasket to the inside surface of the hole.
(3) Conventionally, Three Bond TB 1104(gray) or Three Bond
TB
1102(yellow) is used for paper packings though single use of one of these bonds is not effective.
(4)
If conventional packings are used,
do
not use a liquid packing.
"'
-0
"Ei
:::,
0
10-10
Oil
pan
mating
surface
"'
-0
·.;;
.5
'2
Buildup
of
TB1212
<1J
Cl.
·5
0
11>
-0
·.;;
"'
Printed in Japan
HINSHI-H8009
