Chapter
10
Disassembly and Reassembly
.:;3.:..
D~is;::a;:;:ss~e;:;m::,:b::,:l,t.Y_:;a::,:n~d.;:R~e:;:a:;:s;;;;se:;:m:.:,b:;;l;a::Y
_____________________
3,4]H3(BXC)E

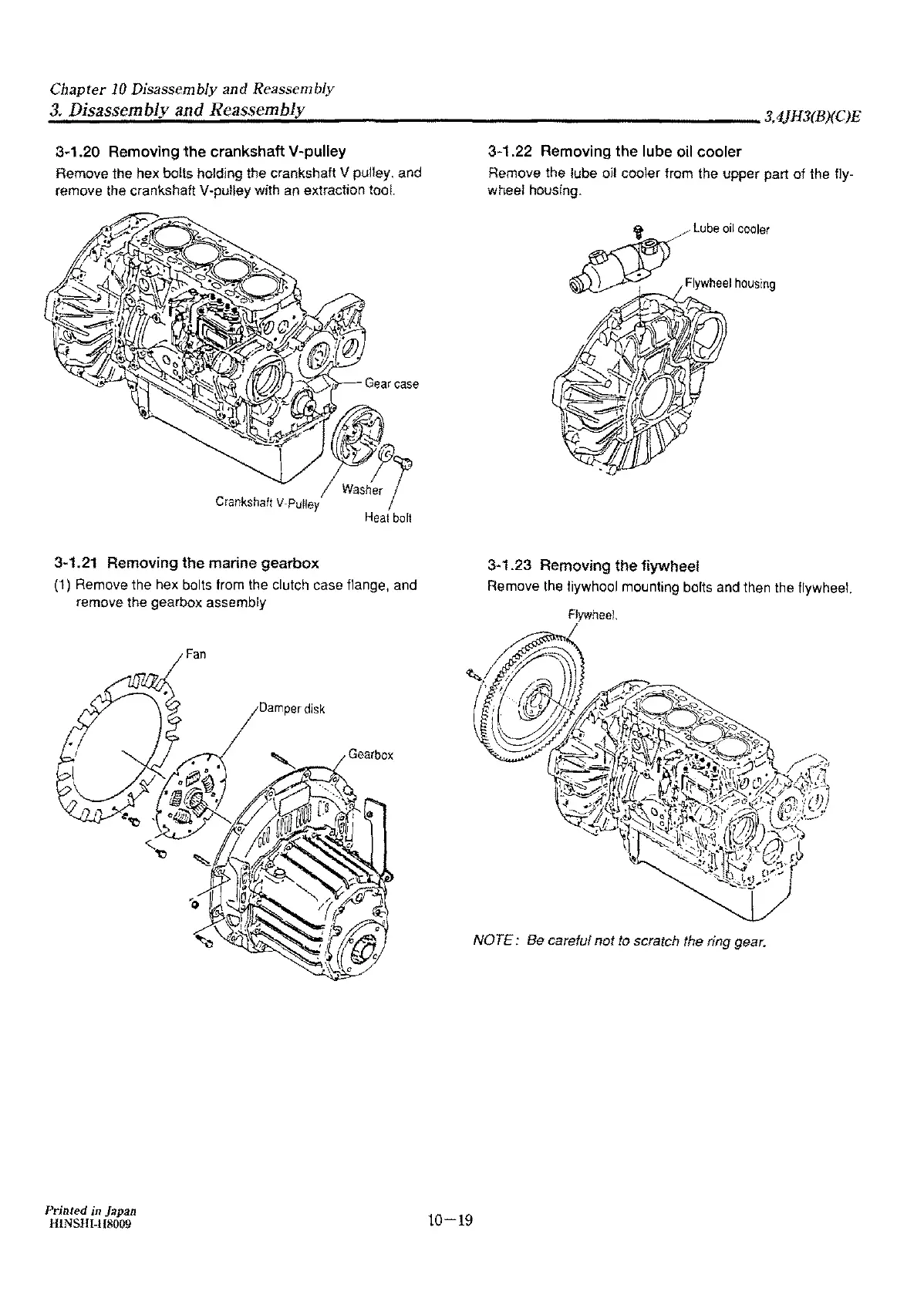

3-1.20 Removing the crankshaft V-pulley
Remove the hex bolts holding the crankshaft V pulley. and
remove the crankshaft V-pulley with an extraction tool.
Crankshaft
V-Pulley
3-1.21 Removing the marine gearbox
(1) Remove the hex bolts from the clutch case flange, and
remove the gearbox assembly
Printed
in
Japan
H!NSH!-H8009
<."
Fan
Damper
disk
iii:
·o/-0--~
'
~it.,
~.'
'
10-19
3-1.22 Removing the lube oil cooler
Remove the lube oil cooler from the upper part of the fly-
wheel housing.
i /
Lube
011
cooler
=
:')
.
Flywheel
housing
3-1.23 Removing the fiywheel
Remove the fiywhool mounting bolts and then the flywheel.
Flywheel.
NOTE:
Be
careful not
to
scratch the ring gear.
To Next Page
