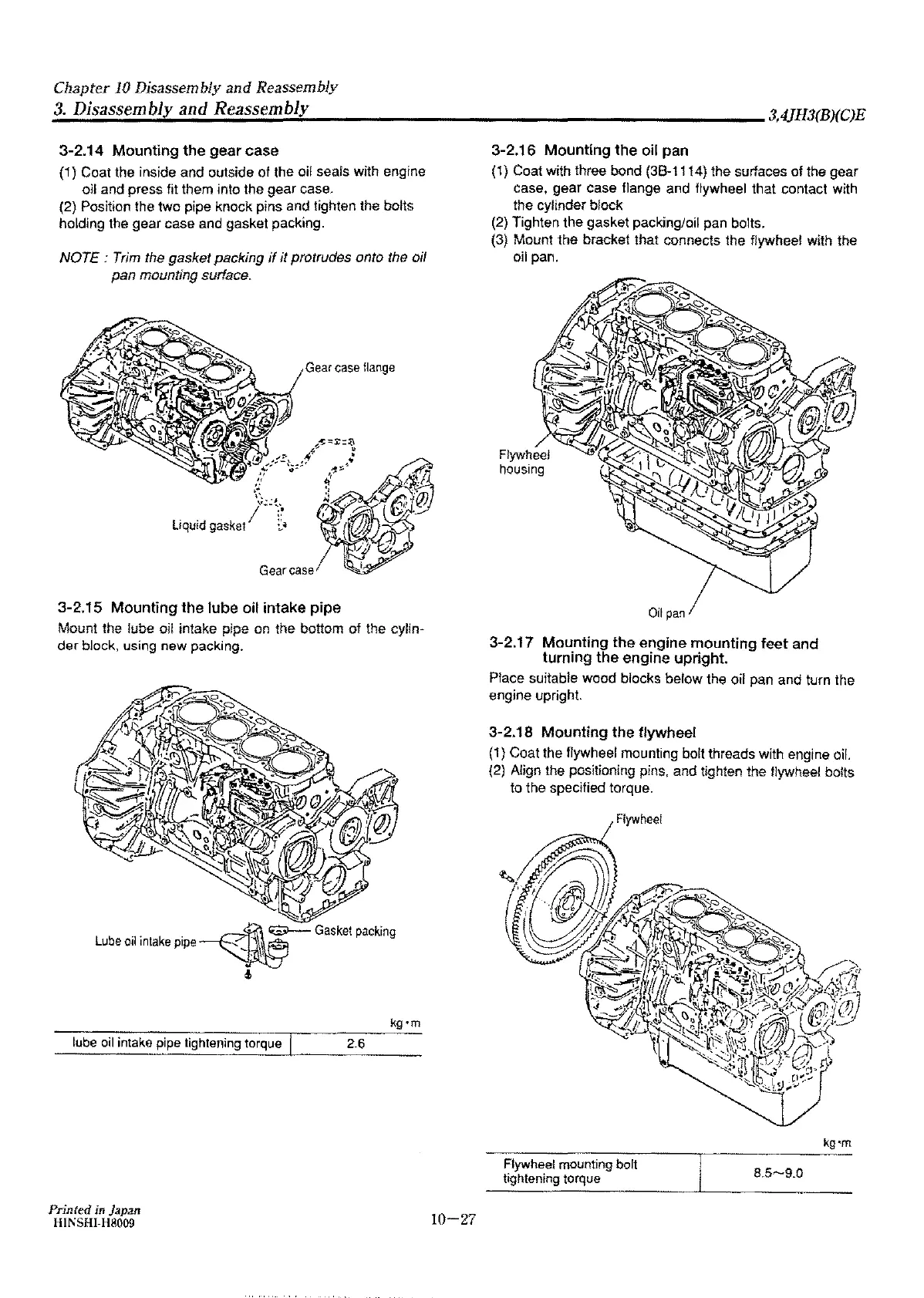

Chapter 10 Disassembly and Reassembly
_3._D_1_·s_as_s_e_m_b...;;ly
___
an_d_R_ea_s_s_em_b
....
ly
____________________
3,4JH3(B)(C)E
3-2.14
Mounting
the
gear
case
{1} Coat the inside and outside of the oil seals with engine
oil and press fit them into the gear case.
(2) Position the two pipe knock pins and tighten the bolts
holding the gear case and gasket packing.
NOTE : Trim the gasket packing
if
it
protrudes onto the oil
pan
mounting surface.
Gear
case
flange
Gear
case
3-2.15
Mounting
the lube oil intake pipe
Mount the lube oil intake pipe on the bottom
of
the cylin-
der
block, using new packing.
-----t::?'ru
~
Gasket
packing
Lube
oil
intake
pipe
~
!,
lube
oil
intake pipe tightening torque
2.6
Printed in Japan
HINSHI-H8009
kg•m
10-27
3-2.16
Mounting
the oil pan
(
1}
Coat with three bond (3B-1114) the surfaces
of
the gear
case,
gear case flange and flywheel that contact with
the
cylinder block
(2)
Tighten the gasket packing/oil pan bolts.
(3) Mount the bracket that connects the flywheel with the
oil pan,
Oil
pan
3-2.17 Mounting
the
engine mounting feet and
turning
the
engine upright.
Place suitable wood blocks below the oil pan and turn the
engine upright.
3-2.18 Mounting the flywheel
(1} Coat the flywheel mounting bolt threads with engine oil,
(2) Align the positioning pins,
and
tighten the flywheel bolts
to the specified torque,
Flywheel
Flywheel mounting bolt
tightening torque
kg
•m
8.5~9.0
