Chapter 10 Disassembly and Reassembly
.;;.l~. ;;,D.;,;is;;.;;a~s.;;.se;.;m;.;;.;;.;,;;b.;;:;lY;..,.;;;;a,;...n.;..d..;;R..;.e;.;a.;.;;s..;.s.;.em __ b..:ly;.....P_r_e_ca_u_t_io_n_s _________________ 3,4JH3(B)(C)E

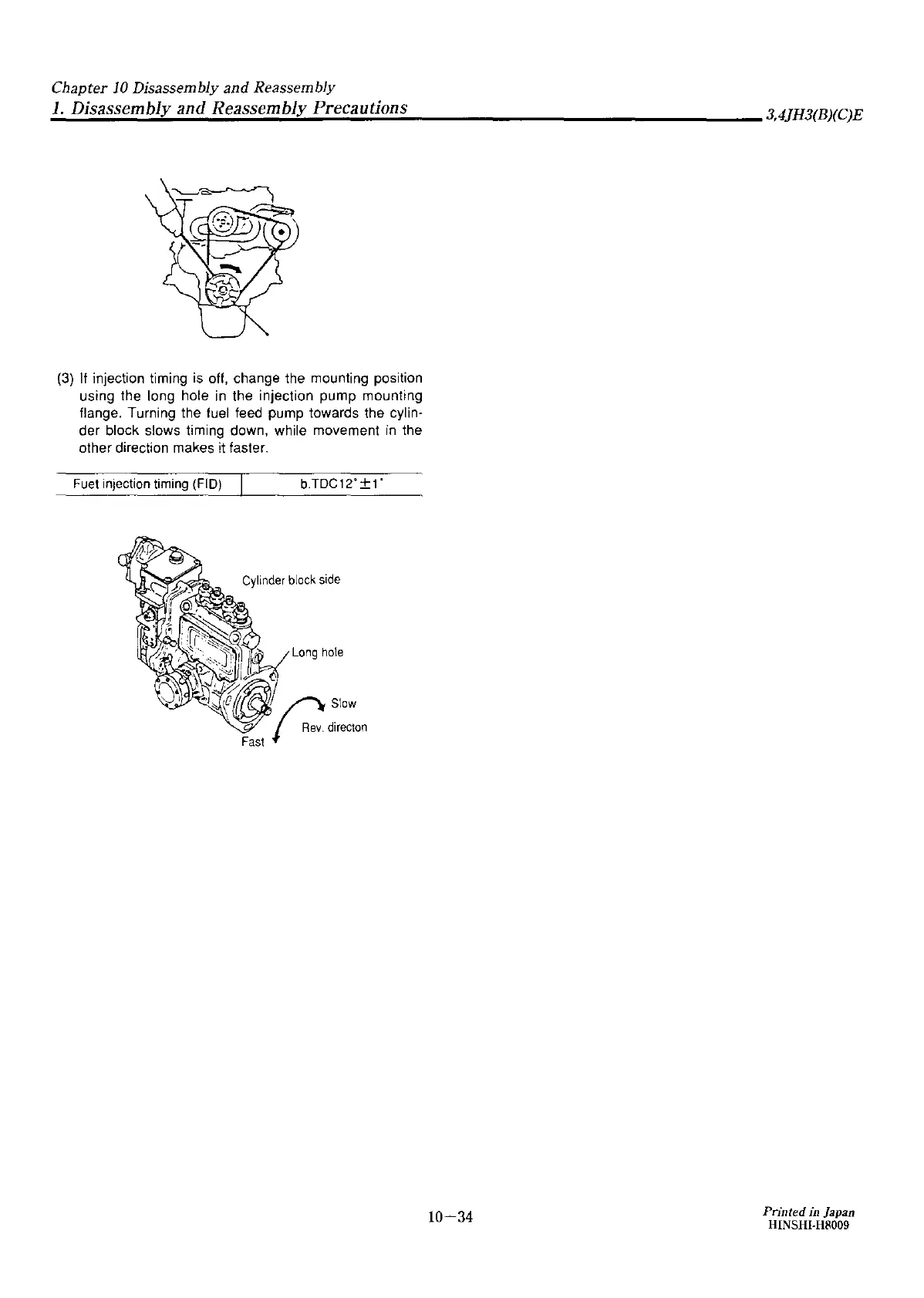

(3) If injection timing is off, change the mounting position
using the long hole
in the injection pump mounting
flange. Turning the fuel feed pump towards the cylin-
der block slows timing down, while movement
in the
other direction makes it faster.
Fuet injection timing
(FID)
b.TDC12"±1"
Cylinder block side
Fast
Long hole
Slow
Rev. di recton
10-34
Printed in Japan
HINSHI-H8009
