Chapter 3 Fuel Injection
Equipment
,:,2:....
;:;:.G,:;:,.ov.:.:e::.:,r,;:.n~or:.,_
___________________________
3,4]H3(B)(C)E
(14)

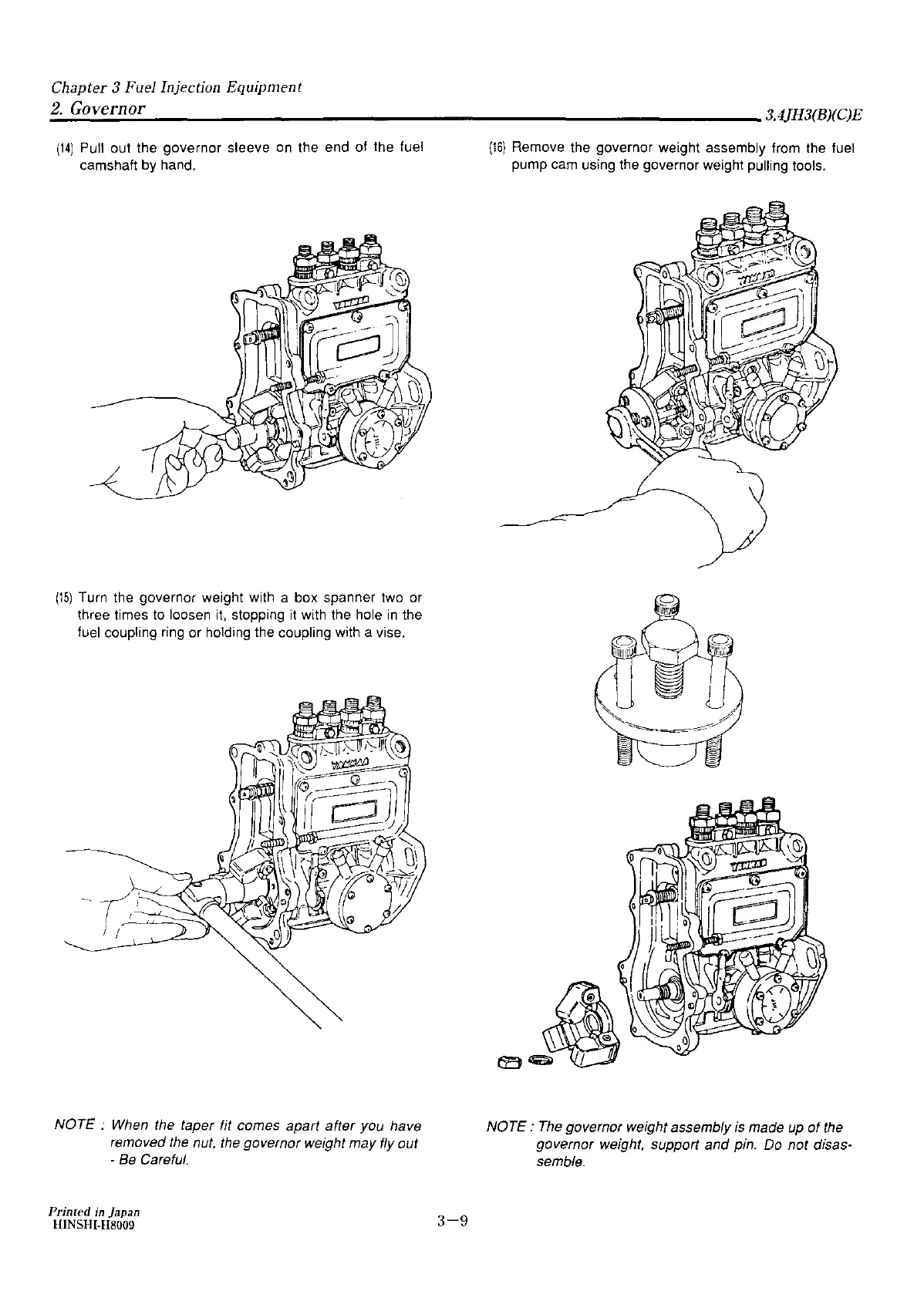

Pull out the governor sleeve
on
the end o! the fuel
camshaft
by
hand.
(15)
Turn the governor weight with a box spanner two or
three times to loosen ii, stopping ii with the hole
in
the
fuel coupling ring
or
holding the coupling with a vise.
NOTE : When the taper fit comes apart after you have
removed the nut, the governor weight may fly out
- Be Careful.
Printed
in
Japan
HINSHI-118009
3-9
(16)
Remove the governor weight assembly from the fuel
pump cam using the governor weight pulling tools.
NOTE:
The governor weight assembly is made up
of
the
governor weight, support
and
pin. Do not disas-
semble.
