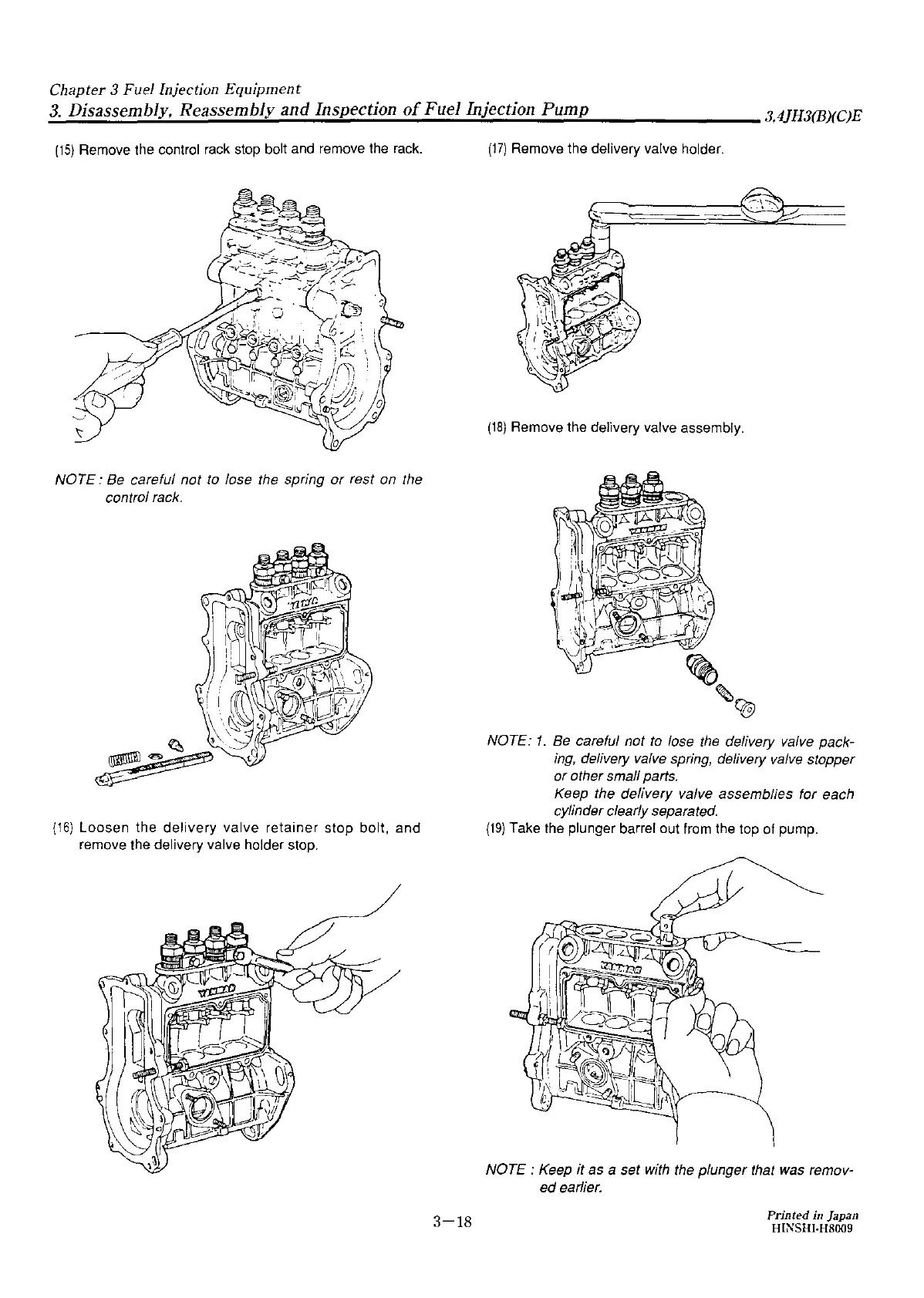

Chapter 3 Fuel Injection
Equipment
::3:...
;:;;D~is;:.:a:,:;:s:;;se:;;m=b.:alY:.:.·..:R.:;e;:.:a:,:;:s:::,se:;;m=b.:.lY:..::an:.:.d;;..;;L:.:.n~sp:.:.e:.:.c:.:.t1:.:.·o:.:.n..;o:.:.f..;F;..;;.ue:.:.l..;L:.:.n:::.je;.;c:.:.t1:.:.·o:.:.n..;P;..;;.um=p'---------
3
·
4
JHJ(B)(C)E
(15)
Remove
1he
control rack stop bolt and remove the rack.
NOTE:
Be careful not to lose the spring
or
rest on the
control rack.
(16)
Loosen
the
delivery
valve
retainer
stop
bolt,
and
remove the delivery valve holder stop.
3-18
(17)
Remove the delivery valve holder.
(18)
Remove the delivery valve assembly.
NOTE:
1.
Be careful not to lose the delivery valve pack-
ing,
delivery valve spring, delivery valve stopper
or
other small parts.
Keep the delivery valve assemblies for each
cylinder clearly separated.
(19)
Take the plunger barrel out from the top of pump.
NOTE : Keep
it
as
a set with the plunger that was remov-
ed
earlier.
Printed in Japan
HINSHI-H8009
