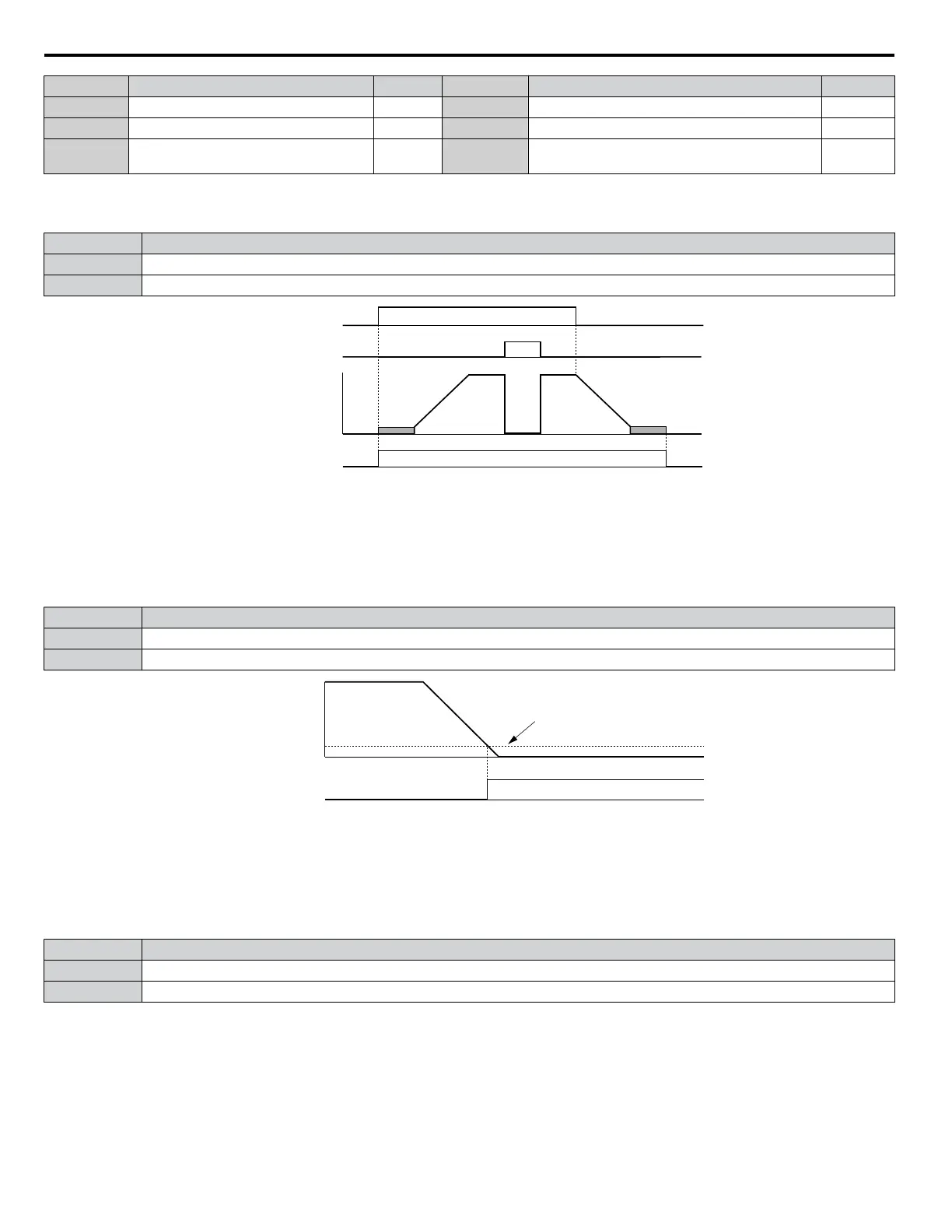

Setting Function Page Setting Function Page
7 DC Bus Undervoltage 106 3C LOCAL/REMOTE Status 107
8 During Baseblock (N.O.) 106 3D During Speed Search 107
B Torque Detection 1 (N.O.) 106 100 to 13D
H2 Parameter Functions Reversed Output
Switching of 0 to 92
107
Setting 0: During Run
Output closes when the drive is outputting a voltage.
Status Description
Open Drive is stopped.
Closed A Run command is input or the drive is during deceleration or during DC injection.
ON
ON
OFF
OFF
ONOFF
Run command
Baseblock
command
Output
frequency
During Run
Figure 5.20 During Run Time Chart
Setting 1: Zero Speed
Terminal closes whenever the output frequency falls below the minimum output frequency set to E1-09.
Status Description
Open Output frequency is above the minimum output frequency set to E1-09
Closed Output frequency is less than the minimum output frequency set to E1-09
OFF
Output frequency
or
motor speed
Zero Speed
ON
E1-09 (Max. Output Frequency)
Figure 5.21 Zero-Speed Time Chart
Setting 2: Speed Agree (f
ref
/f
out
Agree )
Closes whenever the actual output frequency is within the current frequency reference regardless of the direction, plus or
minus 2 Hz.
Status Description
Open Output frequency does not match the frequency reference while the drive is running.
Closed Output frequency is within the range of frequency reference ± 2 Hz.
Note: Detection works in both directions, forward and reverse.
5.6 H: Terminal Functions
104
