YASKAWA J1000 Technical Manual

n

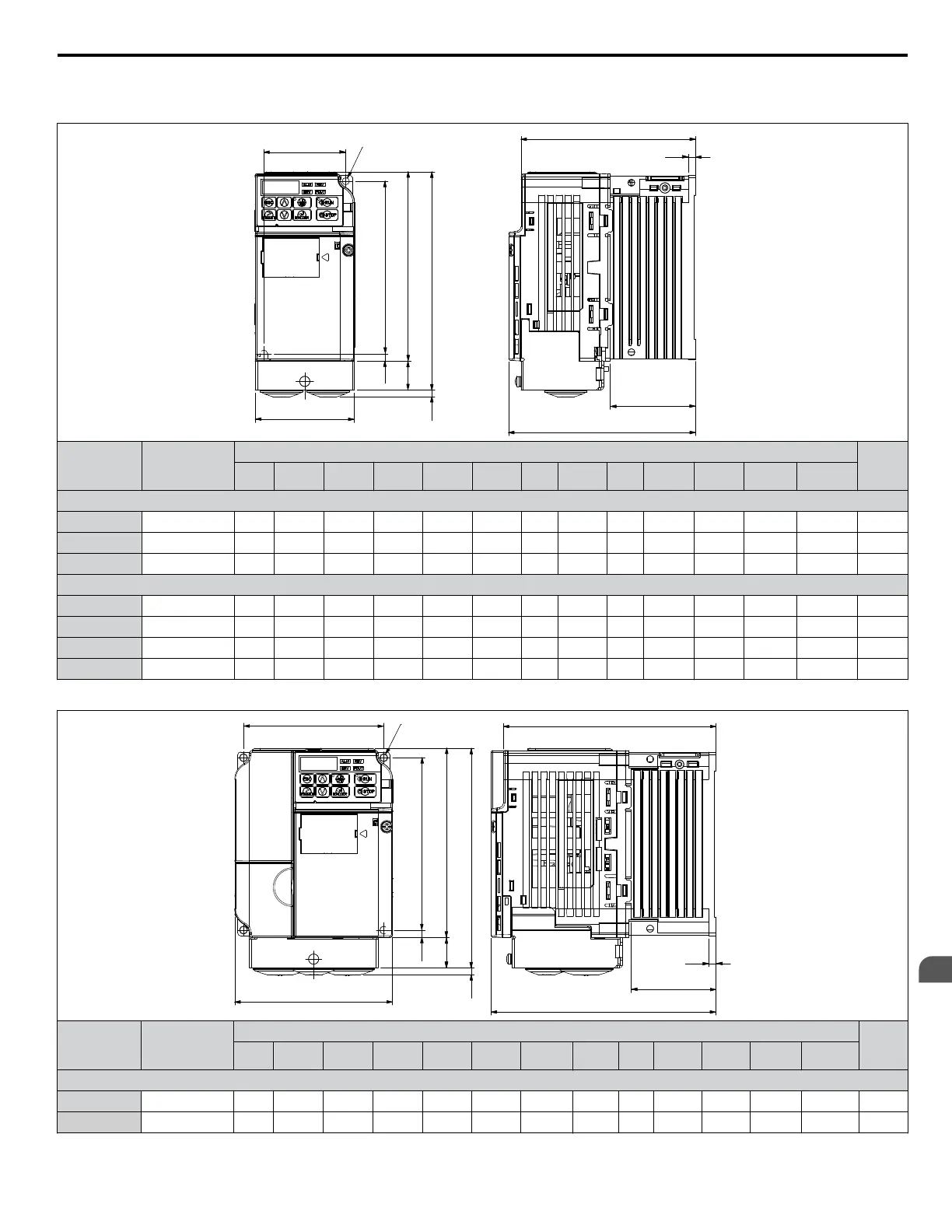

Exterior and Mounting Dimensions for NEMA Type 1 Kit
Table 8.3
IP20/Open-Chassis Design Fitted with the NEMA Type 1 Kit
D1
t1
H1
H
H2
H5 H4
H3
W
D2
D
2-M4W1
Drive Model
CIMR-Jo
NEMA Type 1
Kit Model
EZZ
Dimensions (in)
Wt. (lb)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Single-Phase 200 V Class
BA0001B 020564A 2.7 5.8 3.0 2.2 5.0 4.6 0.2 0.8 0.2 0.06 0.3 2.7 0.1 1.8
BA0002B 020564A 2.7 5.8 3.0 2.2 5.0 4.6 0.2 0.8 0.2 0.06 0.3 2.7 0.1 1.8
BA0003B 020564B 2.7 5.8 4.6 2.2 5.0 4.6 0.2 0.8 0.2 0.06 1.5 4.3 0.2 2.7
Three-Phase 200 V Class
2A0001B 020564A 2.7 5.8 3.0 2.2 5.0 4.6 0.2 0.8 0.2 0.06 0.3 2.7 0.1 1.8
2A0002B 020564A 2.7 5.8 3.0 2.2 5.0 4.6 0.2 0.8 0.2 0.06 0.3 2.7 0.1 1.8
2A0004B 020564A 2.7 5.8 4.3 2.2 5.0 4.6 0.2 0.8 0.2 0.06 1.5 3.9 0.1 2.4
2A0006B 020564A 2.7 5.8 5.0 2.2 5.0 4.6 0.2 0.8 0.2 0.06 2.3 4.7 0.1 2.9
Table 8.4 IP20/Open-Chassis Design Fitted with the NEMA Type 1 Kit
4-M4
W1
W
H5
H2
H4
H
H3
H1
D1
D2
D
t1
Drive Model
CIMR-Jo
NEMA Type 1
Kit Model
EZZ
Dimensions (in)
Wt. (lb)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Single-Phase 200 V Class
BA0006B 020564C 4.3 5.9 5.4 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.1 0.2 4.2
BA0010B 020564D 4.3 5.9 6.1 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.7 0.2 4.4
8.4 Installing Peripheral Devices
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
173
8
Peripheral Devices & Options
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
