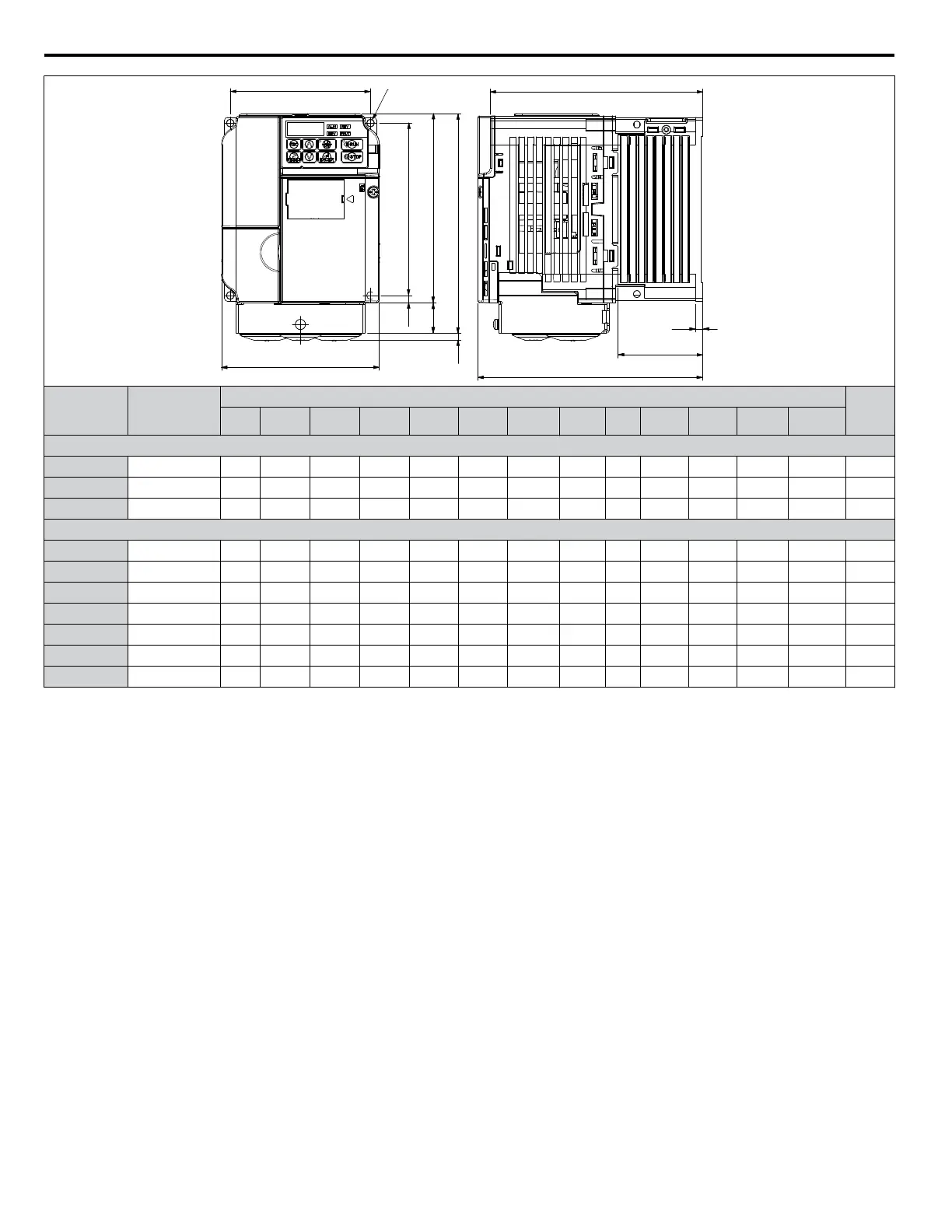

YASKAWA J1000 Technical Manual

4-M4
W1
W
H5
H2
H4
H
H3
H1
D1
D2
D
t1
Drive Model
CIMR-Jo
NEMA Type 1
Kit Model
EZZ
Dimensions (in)
Wt. (lb)
W H D W1 H1 H2 H3 H4 H5 H6 D1 D2 t1
Three-Phase 200 V Class
2A0010B 020564G 4.3 5.9 5.1 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 4.7 0.2 4.2
2A0012B 020564C 4.3 5.9 5.4 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.1 0.2 4.2
2A0020B 020564H 4.3 5.9 5.6 5.0 5.0 0.18 0.2 0.8 0.2 0.2 2.6 5.3 0.2 5.7
Three-Phase 400 V Class
4A0001B 020564G 4.3 5.9 3.2 3.8 5.0 0.18 0.2 0.8 0.2 0.06 0.4 2.9 0.2 2.6
4A0002B 020564G 4.3 5.9 3.9 3.8 5.0 0.18 0.2 0.8 0.2 0.06 1.1 3.6 0.2 3.1
4A0004B 020564C 4.3 5.9 5.4 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.1 0.2 4.2
4A0005B 020564J 4.3 5.9 6.1 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.7 0.2 4.2
4A0007B 020564J 4.3 5.9 6.1 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.7 0.2 4.2
4A0009B 020564J 4.3 5.9 6.1 3.8 5.0 0.18 0.2 0.8 0.2 0.06 2.3 5.7 0.2 4.2
4A0011B 020564H 4.3 5.9 5.6 5.0 5.0 0.18 0.2 0.8 0.2 0.2 2.6 5.3 0.2 5.7
8.4 Installing Peripheral Devices
174
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
