YASKAWA J1000 Technical Manual

A
B
D
E
C
M
U/T1
V/T2
W/T3
U
V
W
A – Drive
B – 20 m max cable length between
drive and motor
C – Motor
D – Metal conduit
E – Ground wire should be as short as
possible.

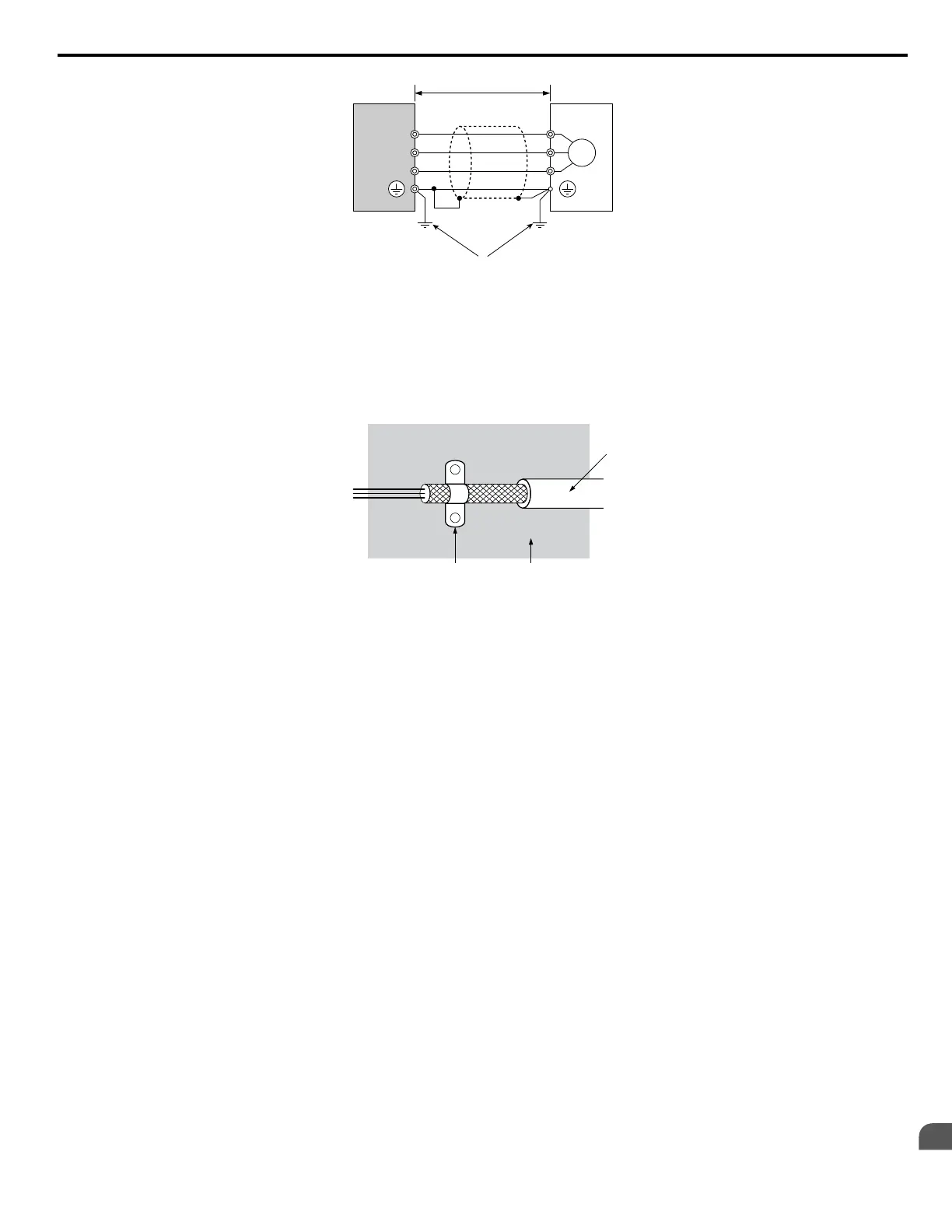

Figure D.2 Installation Method
5.
Ground
the largest possible surface area of the shield to the metal conduit when using braided shield cable. Yaskawa
recommends using a cable clamp.
C
B
A
A – Braided shield cable
B – Metal panel
C – Cable clamp (conductive)
Figure D.3 Ground Area
D.2 European Standards
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
237
D
Standards Compliance
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
