Three-Phase 200 V / 400 V Class
B
C
D
E
D
F
A
G
J
I
H
L3
L2
L1
E
L1
PE
L3
L2
PE
A – Ground the cable shield
B
– Enclosure panel
C – Metal plate
D – Grounding surface (remove any
paint or sealant)
E – Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short as
possible
J – EMC noise filter

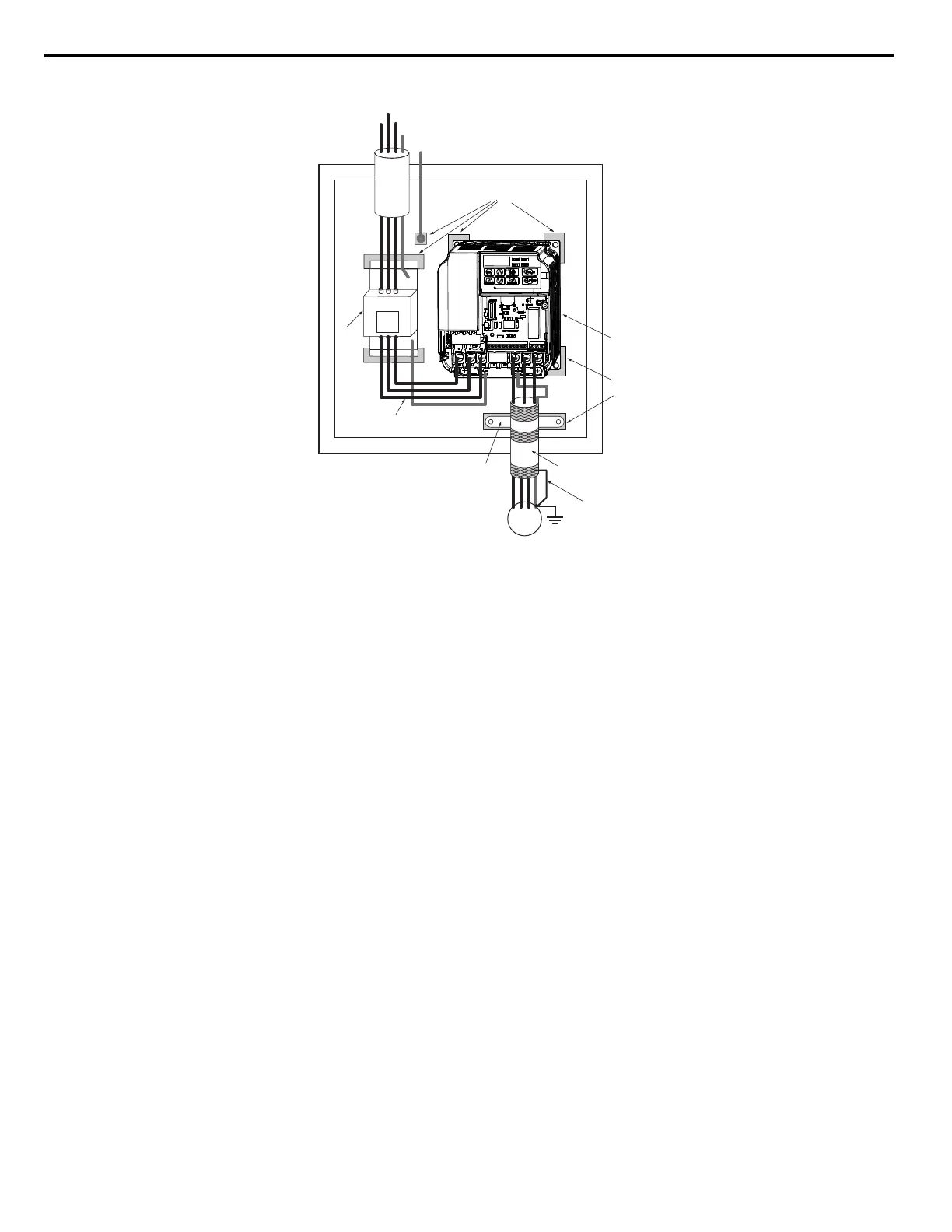

Figure D.4 EMC Filter and Drive Installation for CE Compliance
(Three-Phase 200 V / 400 V Class)
