Single-Phase 200 V Class
B
C
D
E
D
F
A
H
G
J
I
N
L1
E
N
L1
PE
PE
A – Ground the cable shield
B
– Enclosure panel
C – Metal plate
D – Grounding surface (remove any
paint or sealant)
E – Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short as
possible
J – EMC noise filter

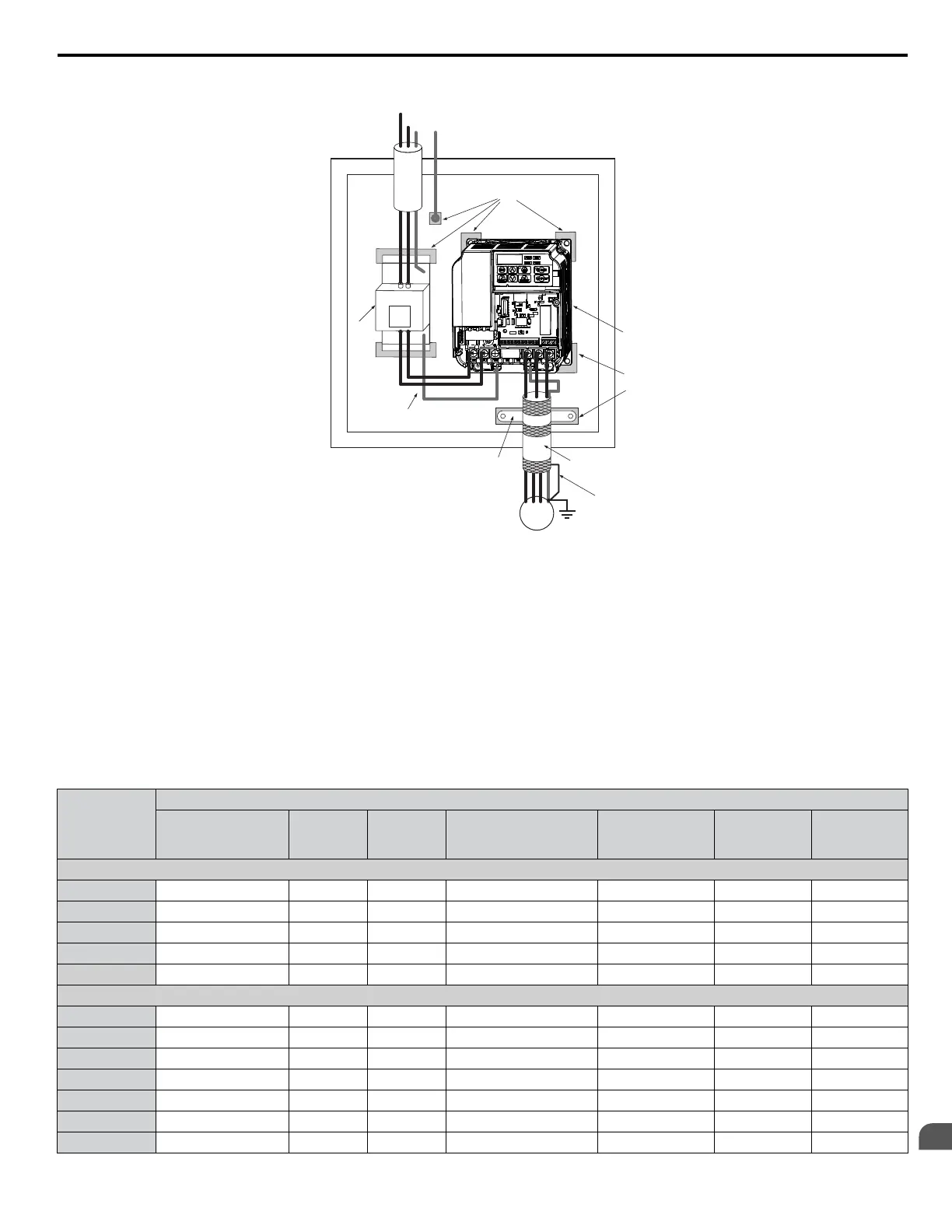

Figure D.5 EMC Filter and Drive Installation for CE Compliance (Single-Phase 200 V Class)
n
EMC Filters
The drive should be installed with the EMC filters listed below in order to comply with the EN 61800-3, category C1
requirements.
Table D.1
EN 61800-3 Category C1 Filters
Drive
CIMR-Jo
Filter Data (Manufacturer: Schaffner)
Type
Rated
Current
(A)
Weight
(lb)
Dimensions
[W x L x H] (in)
Mounting
Dimensions
[Y x X] (mm)
Drive
Mounting
Screw A
Filter
Mounting
Screw
200 V Single-Phase Units
BA0001 FS23638-10-07 10 0.97 2.8 x 6.7 x 1.8 2.0 x 6.1 M4 M5
BA0002 FS23638-10-07 10 0.97 2.8 x 6.7 x 1.8 2.0 x 6.1 M4 M5
BA0003 FS23638-10-07 10 0.97 2.8 x 6.7 x 1.8 2.0 x 6.1 M4 M5
BA0006 FS23638-20-07 20 1.65 4.4 x 6.7 x 2.0 3.6 x 6.1 M4 M5
BA0010 FS23638-20-07 20 1.65 4.4 x 6.7 x 2.0 3.6 x 6.1 M4 M5
200 V Three-Phase Units
2A0001 FS23637-8-07 7.3 0.88 2.8 x 6.7 x 1.6 2.0 x 6.1 M4 M5
2A0002 FS23637-8-07 7.3 0.88 2.8 x 6.7 x 1.6 2.0 x 6.1 M4 M5
2A0004 FS23637-8-07 7.3 0.88 2.8 x 6.7 x 1.6 2.0 x 6.1 M4 M5
2A0006 FS23637-8-07 7.3 0.88 2.8 x 6.7 x 1.6 2.0 x 6.1 M4 M5
2A0010 FS23637-14-07 14 1.28 4.4 x 6.7 x 1.8 3.6 x 6.1 M4 M5
2A0012 FS23637-14-07 14 1.28 4.4 x 6.7 x 1.8 3.6 x 6.1 M4 M5
2A0020 FS23637-24-07 24 1.98 5.7 x 6.9 x 2.0 4.7 x 6.1 M4 M5
D.2 European Standards
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
239
D
Standards Compliance
