STOP
Frequency reference
display at power up
Press to select LOCAL
Press until the frequency
reference becomes 6 Hz
Press to select the
digit to the right

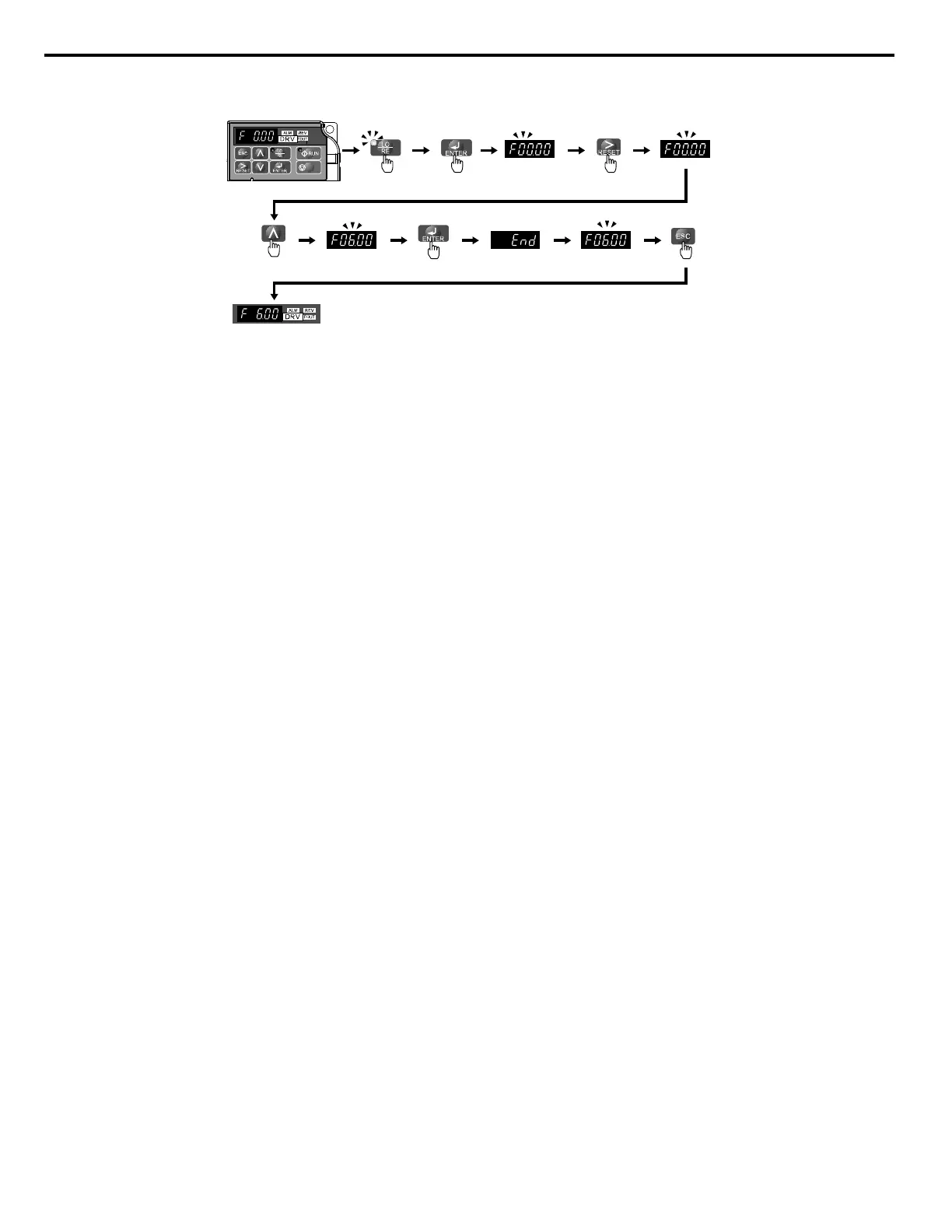

Figure 4.4 Setting the Frequency Reference while in Drive Mode
Note: The drive will not accept a frequency reference set value unless the ENTER key is pressed after the frequency reference is entered. This
feature prevents accidental setting of the frequency reference. By setting o2-05 (Frequency Reference Setting Method Selection) to 1
(Enabled), the drive will accept the frequency reference while it is being adjusted on the digital operator.
n
Programming Mode Details
The following actions are possible in the programming mode:
Verify Function: Verify parameter setting changes from original default values.
Setup Group: Access a list of commonly used parameters to simplify setup.
Parameter Setting Mode: Access and edit all parameter settings.
The Setup Group within the Programming Mode
In Setup Group, the user can access the minimum group of parameters required to operate the application.
Note: Setup Group parameters are listed in Table 4.4.
Figure 4.5 illustrates the keys to press to enter the Setup Group.
In this example, the source of the frequency reference is changed from the control circuit terminals to the LED Operator (i.e.,
b1-01 is changed from 1 to 0).
4.3 The Drive and Programming Modes
64
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
