YASKAWA NX100 Maintenance Manual

10.1 LED Indicator on NCP 01 Circuit Board
10-1
10 LED Indicator on Circuit Board
10.1 LED Indicator on NCP 01 Circuit Board

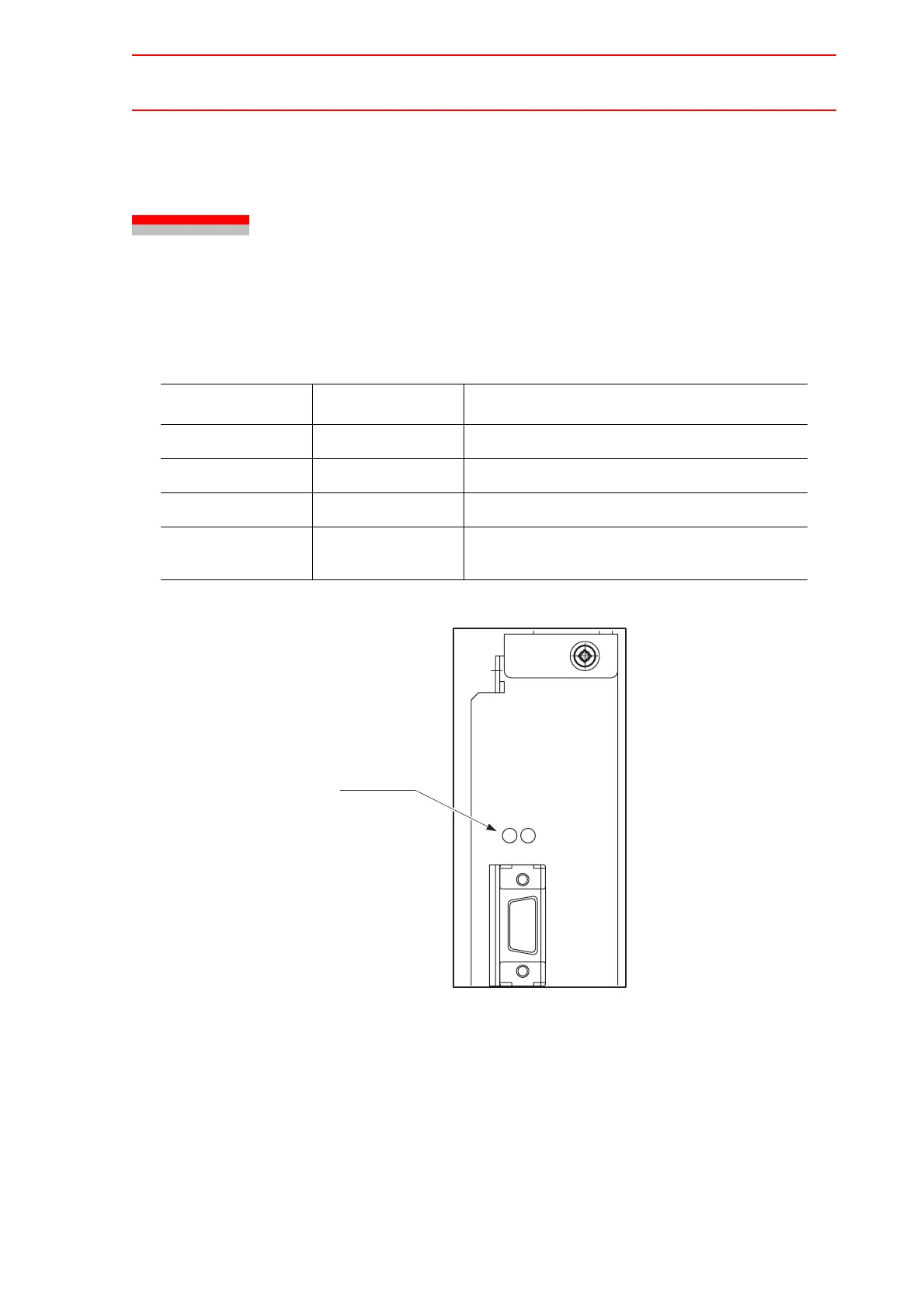

The LED indicators: LED0/LED1 on the NCP01 circuit board show the statuses as in the fol-
lowing table. The LED indicators show the operating statuses for the single NCP01 circuit
board.
LED0 KED1 Status
OFF OFF The power is not turned ON.
ON OFF Before the BIOS starts
OFF ON The BIOS starts.
ON ON The BIOS initialization has been completed./
OS boot starts.
CPU
DATE
0
REV
1
TYPE JANCD-NCP01
LED
VIDEO
LED0 / LED1

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
