7.3 Input/Output Status
7-13
Direct Search on the Universal/Specified Input/Output Window

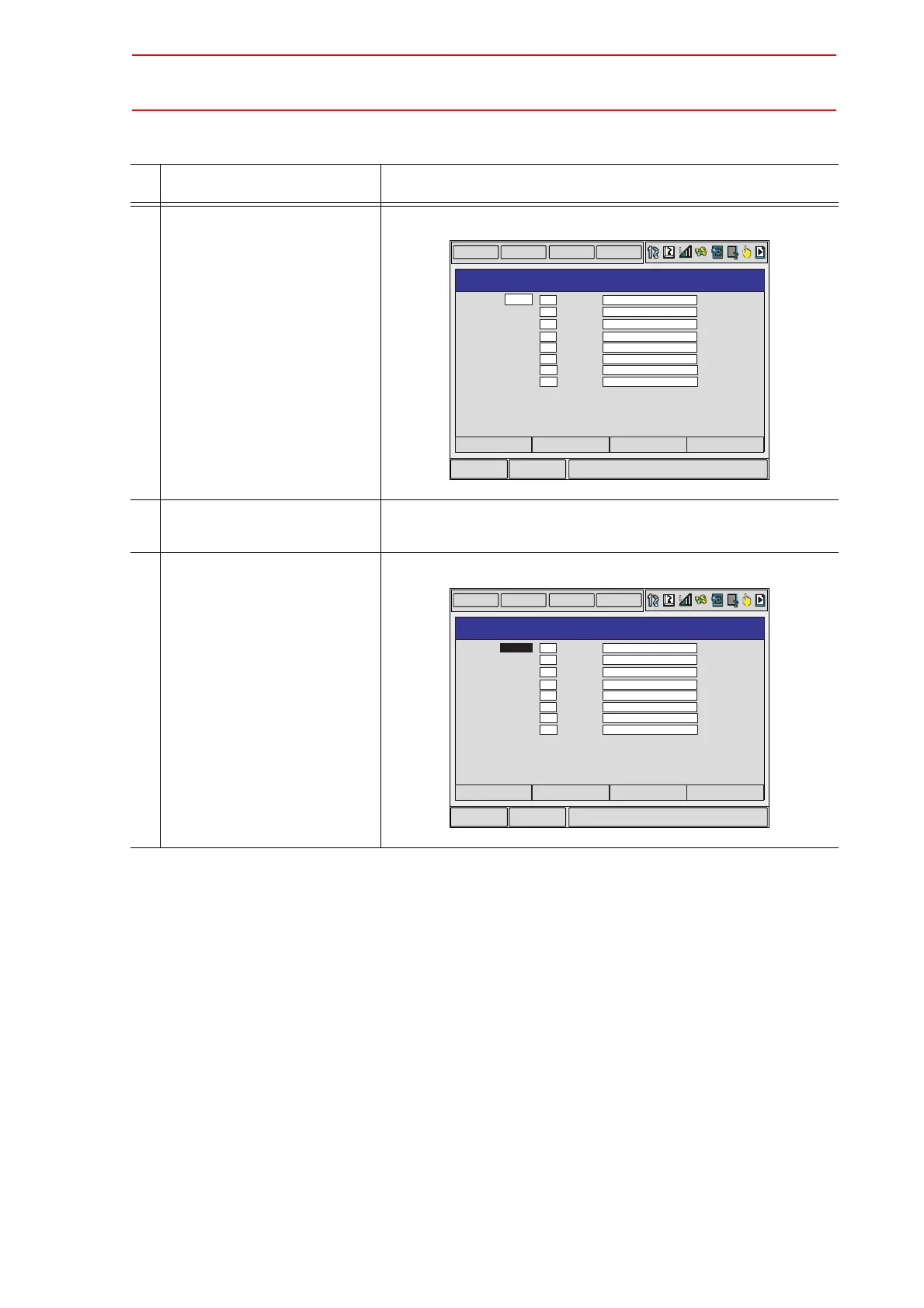

Operation Explanation
1 Move the cursor to a relay
number in the UNIVERSAL/
SPECIFIED INPUT/OUT-
PUT window, and press
[SELECT].
Numeric values can now be entered.
2 Enter the relay number to be
searched.
Type the relay number in the number input line.
3 Press [ENTER] to start the
search.
The page where the relay number exists appers.
IG#01
123 : 10
7b : 16
DATA
EDIT
DISPLAY
UTILITY
Main Menu
Short Cut
T
PAGE
UNIVERSAL INPUT
GROUP
IG#001
0:DEC. 00:HEX.
IN#0001
IN#0002 #00011
IN#0003 #00012
IN#0004 #00013
IN#0005 #00014
IN#0006 #00015
IN#0007 #00016
IN#0008 #00017
IG#01
123 : 10
7b : 16
DATA
EDIT
DISPLAY
UTILITY
Main Menu
Short Cut
T
PAGE
UNIVERSAL INPUT
GROUP
IG#005
0:DEC. 00:HEX.
IN#0033 #00050
IN#0034 #00051
IN#0035 #00052
IN#0036 #00053
IN#0037 #00054
IN#0038 #00055
IN#0039 #00056
IN#0040 #00057
