YASKAWA NX100 Maintenance Manual

10.2 LED Indicator on Robot I/F Unit
10-2
10.2 LED Indicator on Robot I/F Unit
The 7-segment LED indicator and battery alarm LED lamp are located on the robot I/F unit
(JZNC-NIF01).
See " 10.3 7 SEG-LED Indicator " for details displayed by the 7-segment LED indicator.
The battery alarm LED lamp is lit when the battery runs out. See " 5.1.1 Replacing Parts of
the CPU Unit " to replace the battery.
JZNC-
NIF
01
-1
PEV.
DS1
S1
F1
F2
CN12

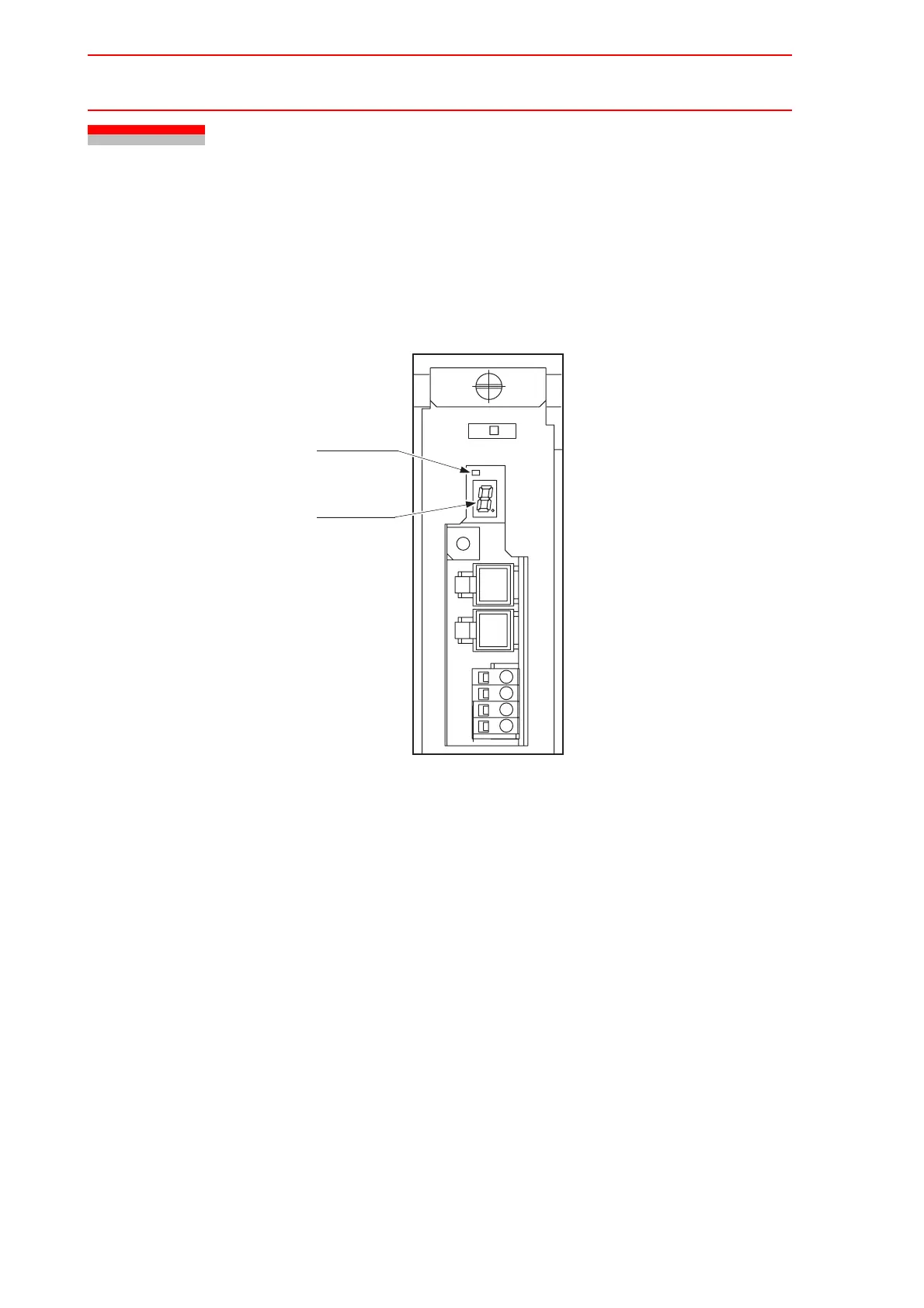

Battery alarm
LED lamp
7-segment
LED indicator

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
