7.3 Input/Output Status
7-10
Direct Search on the Universal/Specified Input/Output Window

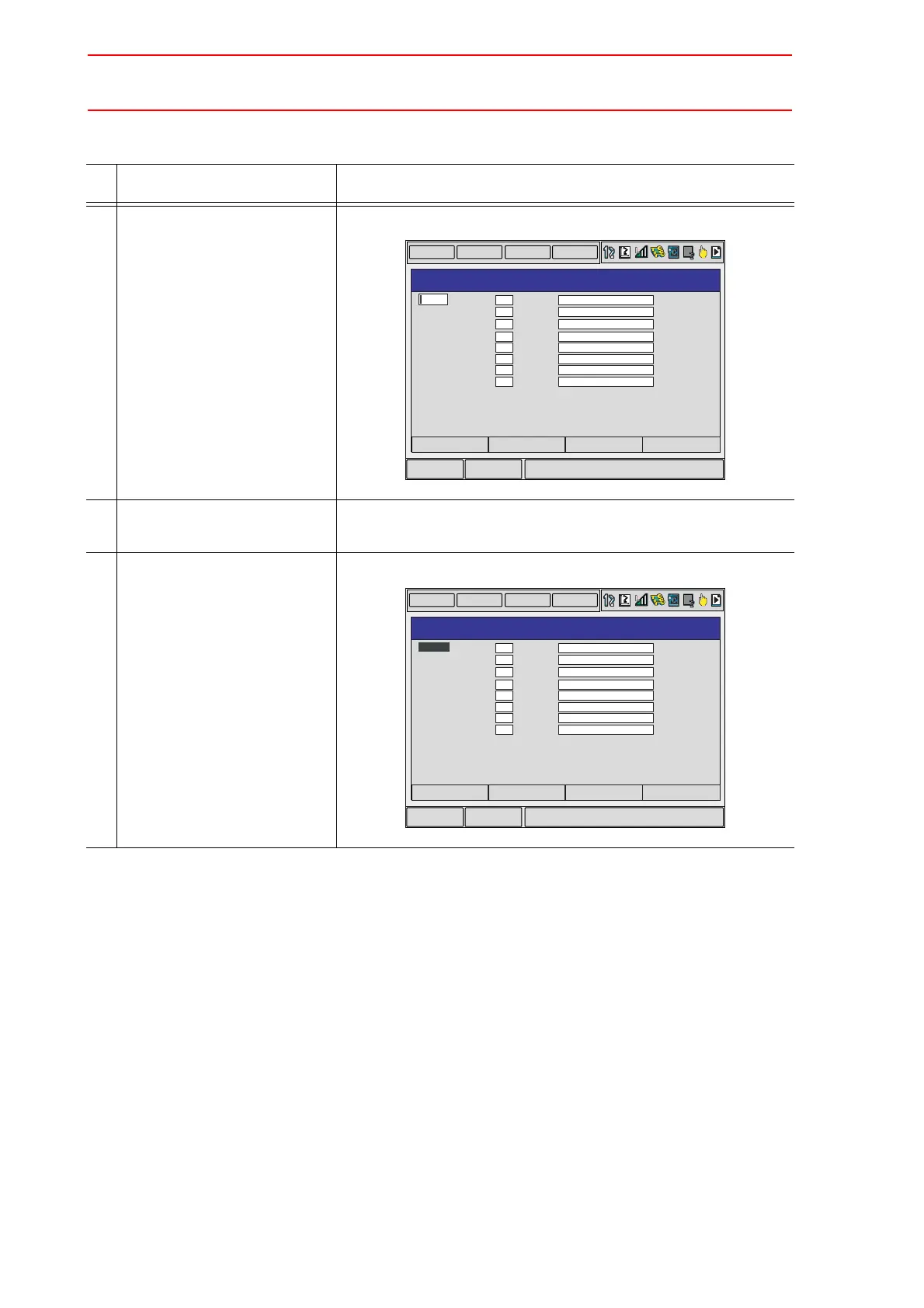

Operation Explanation
1 Move the cursor to a signal
number in the UNIVERSAL/
SPECIFIED INPUT/OUT-
PUT window, and press
[SELECT].
Numeric values can now be entered.
2 Enter the signal number to be
searched.
Type the signal number in the number input line.
3 Press [ENTER] to start the
search.
The page where the signal number exists appers.
IG#01
123 : 10
7b : 16
DATA
EDIT
DISPLAY
UTILITY
Main Menu
Short Cut
T
PAGE
UNIVERSAL INPUT
GROUP
IG#001
0:DEC. 00:HEX.
#00010
IN#0002 #00011
IN#0003 #00012
IN#0004 #00013
IN#0005 #00014
IN#0006 #00015
IN#0007 #00016
IN#0008 #00017
IG#01
123 : 10
7b : 16
DATA
EDIT
DISPLAY
UTILITY
Main Menu
Short Cut
T
PAGE
UNIVERSAL INPUT
GROUP
IG#006 0:DEC. 00:HEX.
IN#0041 #00060
IN#0042 #00061
IN#0043 #00062
IN#0044 #00063
IN#0045 #00064
IN#0046 #00065
IN#0047 #00066
IN#0048 #00067
To Next Page
