7.3 Input/Output Status
7-16

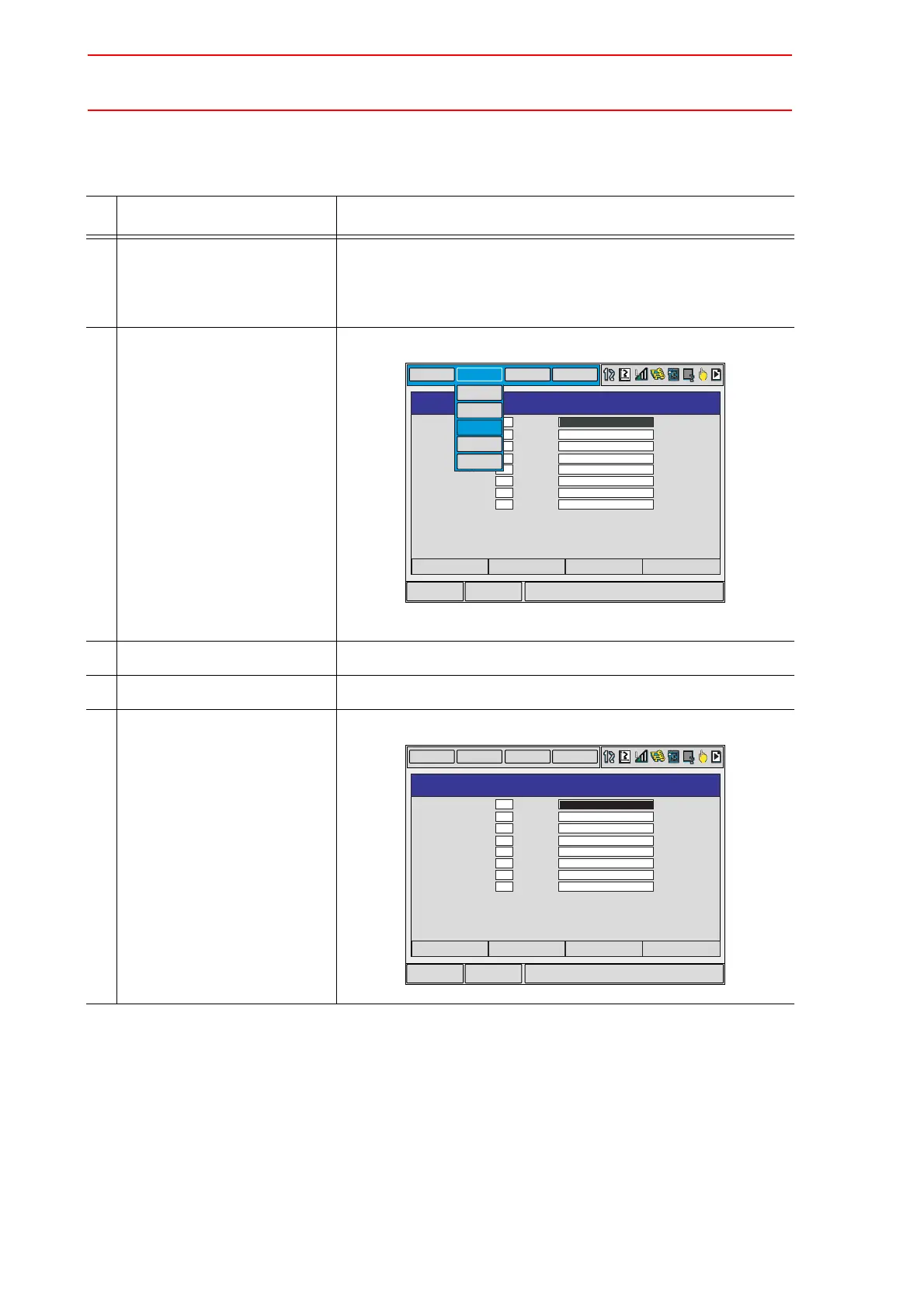

Modification from the Menu
Operation Explanation
1 Move the cursor to the signal
name to be modified in the
UNIVERSAL/SPECIFIED
INPUT/OUTPUT window.
2 Select {EDIT} under the
menu.
The pull-down menu appears.
3 Select {RENAME}. The window for character input appears.
4 Enter the signal name.
5 Press [ENTER]. New signal name is registered.
