YASKAWA NX100 Maintenance Manual

5.3 Supplied Parts List
5-18

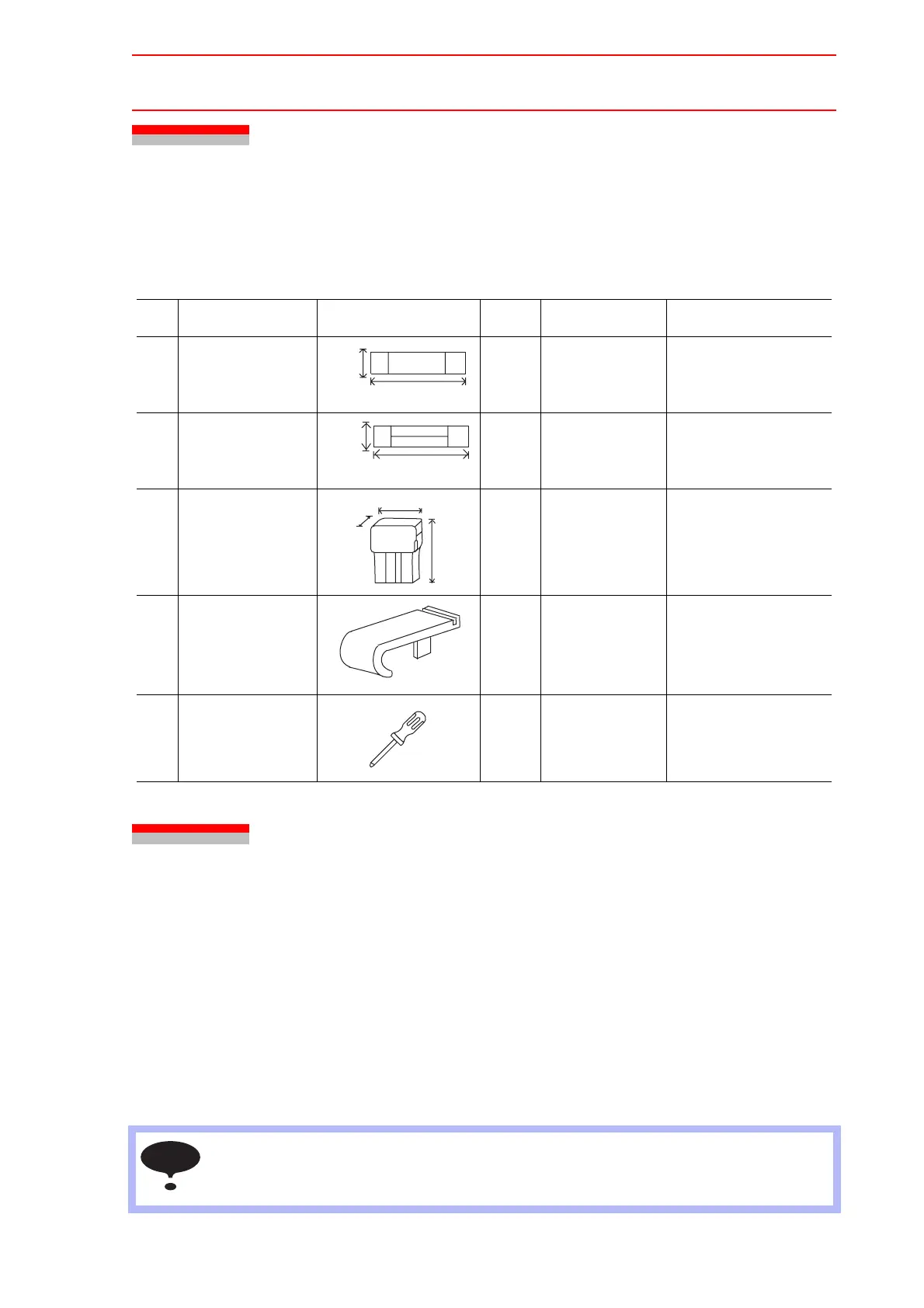

5.3 Supplied Parts List
The supplied parts of NX100 is as follows.
Parts No.1 to 3 are used for fuse for replacement and No.4 and 5 are used as a tool for con-
necting the I/O.
5.4 Recommended Spare Parts
It is recommended that the following parts and components be kept in stock as spare parts for
the NX100. The spare parts list for the NX100 is shown below. Product performance can not
be guaranteed when using spare parts from any company other than Yaskawa. To buy the
spare parts which are ranked B or C, inform the manufacturing number (or order number) of
NX100 to Yaskawa representative. The spare parts are ranked as follows:
• Rank A: Expendable and frequently replaced parts
• Rank B: Parts for which replacement may be necessary as a result of frequent operation
• Rank C: Drive unit
No Parts Name Dimensions Pcs Model Application
1
10A
Ceramic fuse
2
326010
10A 250V
(Littelfuse)
JZRCR-NTU
1FU, 2FU
2
3.15A
Glass-Tube fuse
2
2173.15P
3.15A 250V
(Littelfuse)
JZNC-NIF01
F1, F2
3
5A
Alarm fuse
2
SDP50
5A 125V
(Daito Commu-
nication Appa-
ratus Co., Ltd.)
JZRCR-NTU
3FU
4
WAGO
Connector wiring
tool
2 231-131
(WAGO Com-
pany of Japan,
Ltd.)
JZRCR-NTU-
CN06, 07
CPS-420F-CN02
JZNC-NIF01-CN12
5
WAGO
Terminal block
wiring tool
1 210-119SB
(WAGO Com-
pany of Japan,
Ltd.)
MXT
For replacing parts in Rank B or Rank C, contact your Yaskawa representative.
