7.3 Input/Output Status

7-3

7.3 Input/Output Status

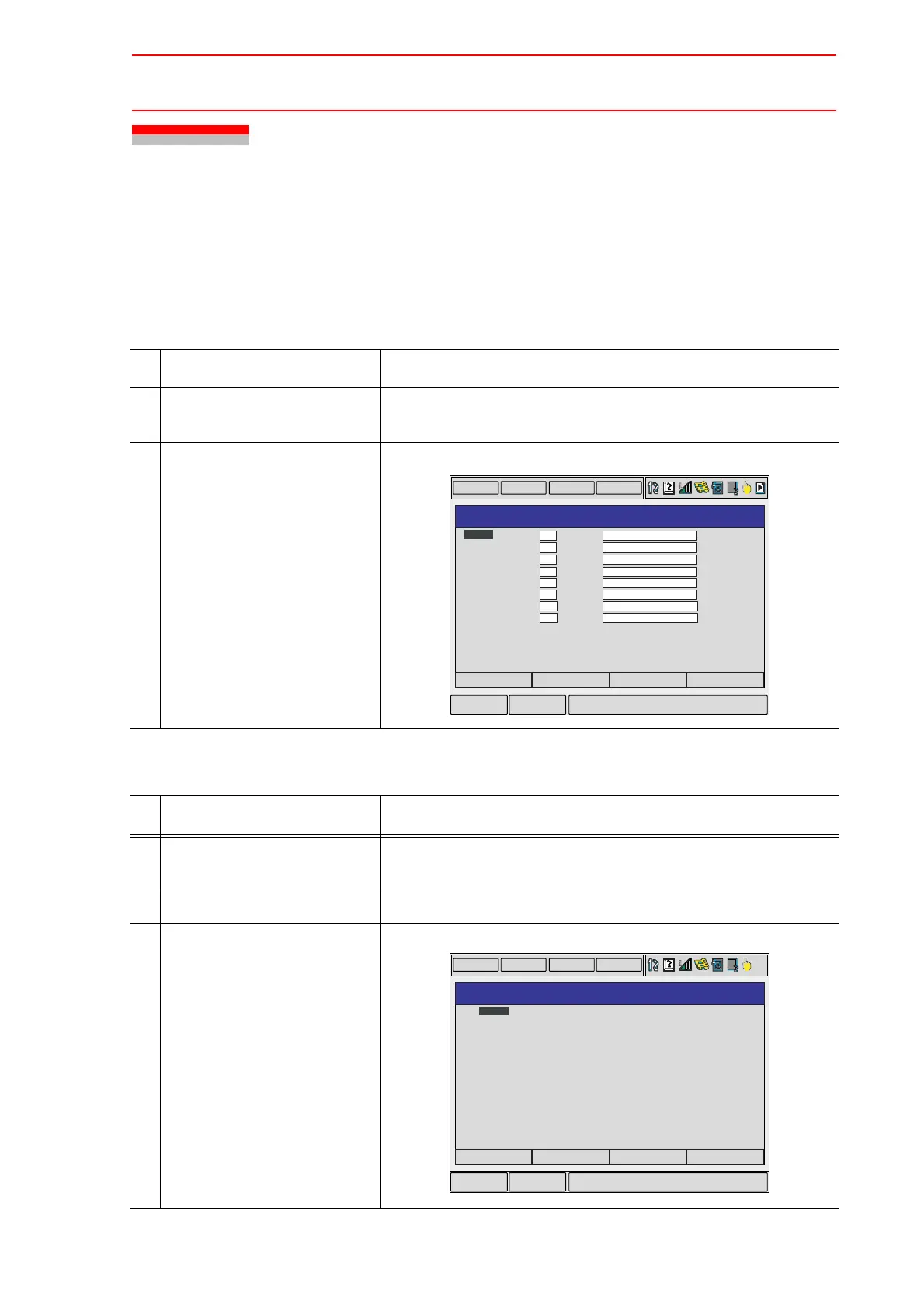

7.3.1 Universal Input

The status of input signal which is referred to by input instruction of a job can be confirmed.

 Universal Input Window

 Universal Input Simple Window

Operation Explanation

1 Select {IN/OUT} under the

main menu.

2 Select {UNIVERSAL INPUT}. The UNIVERSAL INPUT window appears.

Operation Explanation

1 Select {IN/OUT} under the

main menu.

2 Select {UNIVERSAL INPUT}. The UNIVERSAL INPUT window appears.

2 Select {SIMPLE} from the

pull-down menu of {DIS-

PLAY}.

The UNIVERSAL INPUT simple window appears.

DATA

EDIT

DISPLAY

UTILITY

Main Menu

Short Cut

PAGE

UNIVERSAL INPUT

GROUP

IG#001

0:DEC. 00:HEX.



IN#0001 #00010

IN#0002 #00011

IN#0003 #00012

IN#0004 #00013

IN#0005 #00014

IN#0006 #00015

IN#0007 #00016

IN#0008 #00017

DATA

EDIT

DISPLAY

UTILITY

Main Menu Short Cut

UNIVERSAL INPUT

NO.

7654_3210

0000_0000

0000_0000

#0001X

#0002X

#0003X

#0004X

#0005X

#0006X

#0007X

#0008X

#0009X

#0010X

#0011X

#0012X

#0013X
