6.1 Home Position Calibration
6-4

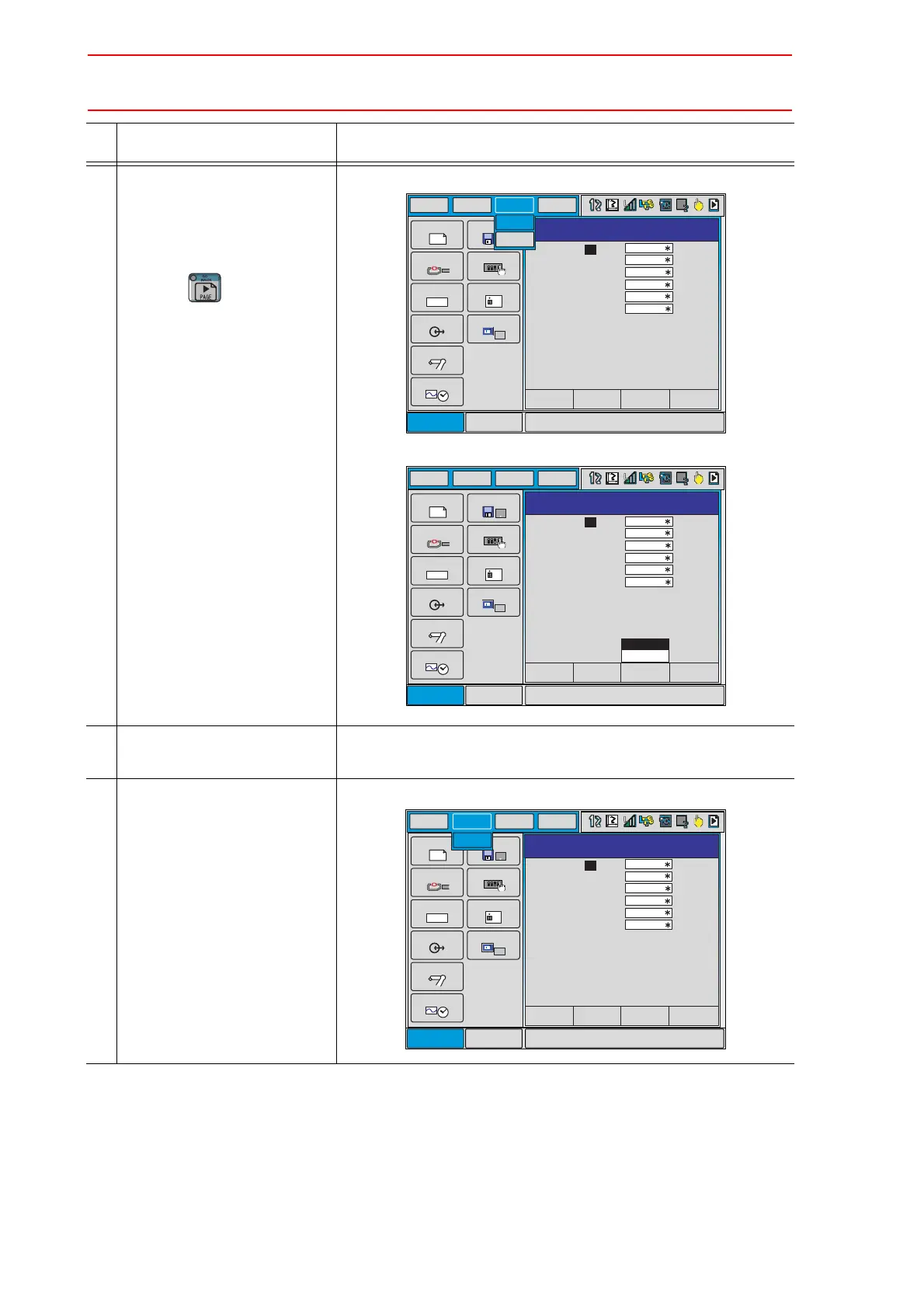

3 Select {DISPLAY} under the
menu,
or select "PAGE" to display
the selection window for the
control group,
or press .
The pull-down menu appears.
4 Select the desired control
group.
5 Select {EDIT} under the
menu.
The pull-down menu appears.
