2 - 3
IM 4H3B1-01E
2. BEFORE OPERATION
2.2.2 Removing Packings
The internal assembly is secured in position by packings to safeguard against damages
during transit. When you unpack the recorder, remove the packings as follows:
Open the µR1800 front door and swing open the display by grabbing the tabs located at
the lower right and left side of the display and pulling these tabs up. See figure 2.2a.

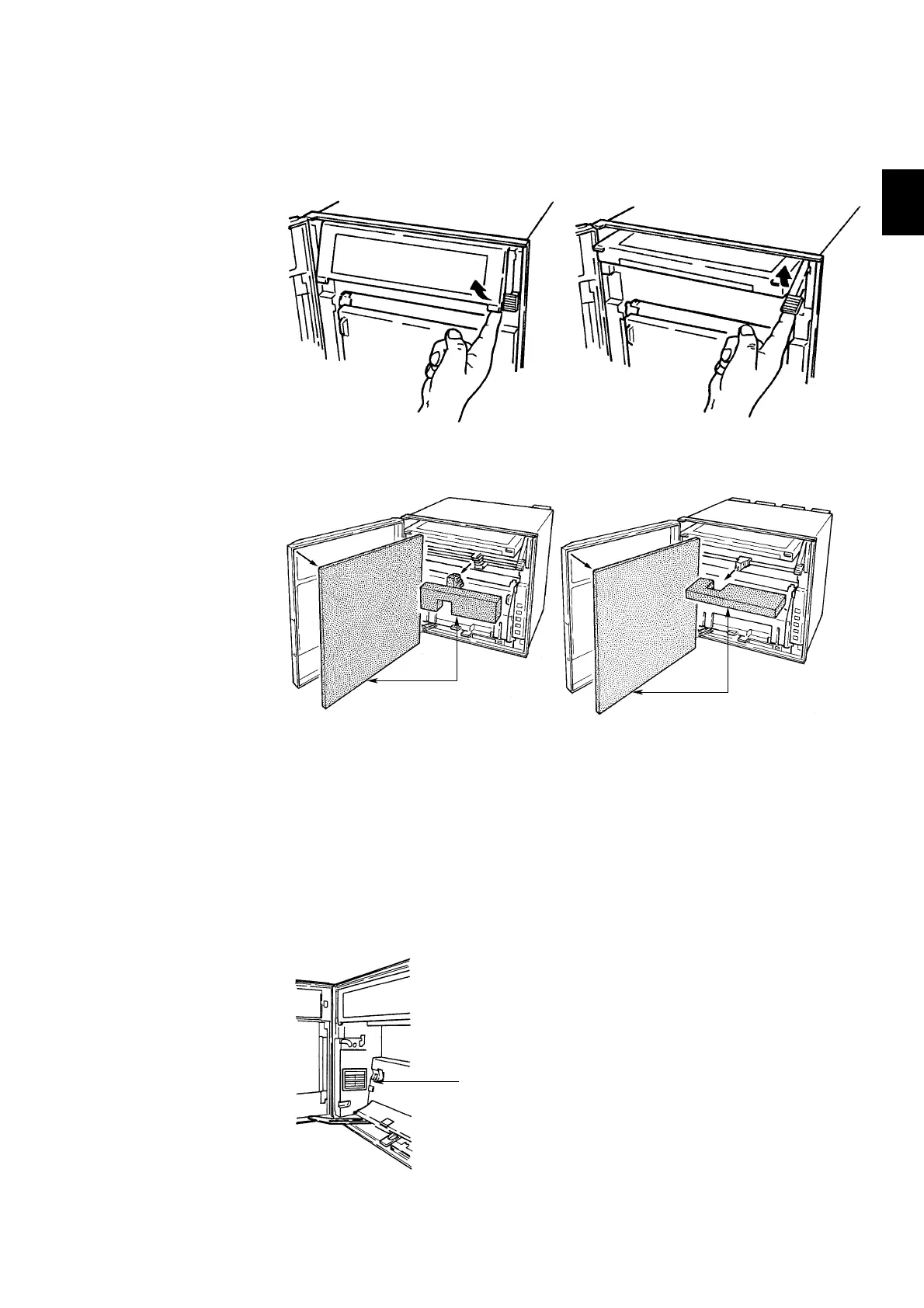

Figure 2.2a Swinging Up the Display Figure 2.2b Closing the Display
Then remove all the packings as shown in figure 2.3.
After having removed the packings, close the display by pulling the 'release'-handle
until this handle is at the same level as the display. Then push the display back into
its normal position until the tabs click shut. See figure 2.2b.
2.2.3 Checking Model Code
When you receive your µR1800, check the information on the nameplate to make sure
that it is as specified by your order. If you open the front door and remove the chart
cassette, you will find the model code mentioned on the nameplate located as shown in
figure 2.4. Please check if model code (MODEL) is correct.
Figure 2.4 Checking Model Code
2.2 Checking the Contents
Nameplate
Packings
Figure 2.3a Removing Packings in
case of Pen Model
Figure 2.3b Removing Packings in
case of Dot Model
Packings
To Next Page
