YOKOGAWA µR1800 User Manual

8 - 8 IM 4H3B1-01E
-key
-key
ABCDEFGHI J
KLMNOPQRST
UVWXYZ
abcd
ef ghi j
kl mn
opqr st
uvwx
yz
01 234
567
8
9
#%
()
+–
*
/
.°µ
Ω
Ω
01
02
03
04
RANGE
ALARM
UNIT
CHART
CLOCK
COPY
AUX
ZONE
PART
PRINT
TAG
MSG
CHART 2
TAG
TAG 1

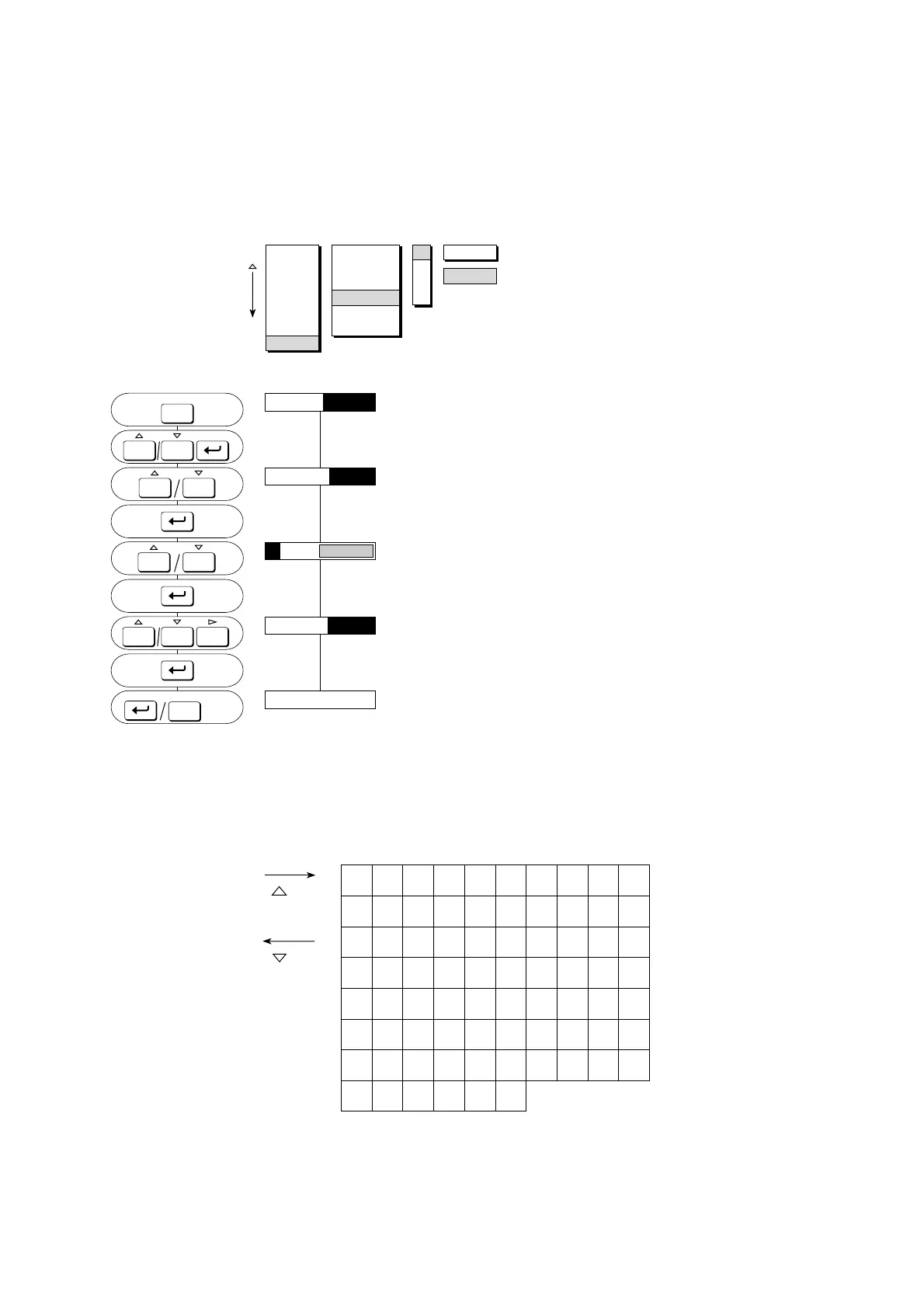

8.2.2 How to Set a Tag
The following setting enables you to set tags to be recorded instead of the usual channel
numbers. Tags will appear on the display, in the periodic printout, manual printout and
in the alarm printout. One tag can be set for every channel. The maximum length is
seven characters.
To set a tag, proceed as follows:
MENU:
SETTING PROCEDURE:
Press the MENU-key for three seconds to enter the SET mode.
Select the ‘SET=AUX’ display using the UP/DOWN-keys, and
press the ENT-key.
Select the ‘MODE=TAG’ display using the UP/DOWN-keys.
Then press the ENT-key.
Select the desired channel using the UP/DOWN-keys, and press
the ENT-key.
Enter the desired characters using the UP/DOWN and the RIGHT-
keys. Then press the ENT-key. Refer to table 8.1.
The setting is completed. Press the ENT-key to return to the
‘01:TAG=...’ display, or press the ESC-key to go to the
‘SET=AUX’ display; or press the MENU-key for three seconds to
return to the Operation mode.
NOTE It is also necessary to set the CH/TAG-setting in the SET UP Mode to get this tag
display and printout. See 9.4.1.
Table 8.1 Characters
MENU
ESC
PRINT
ALARM
ACK
PRINT
ALARM
ACK
SET=AUX
PRINT
ALARM
ACK
FEED
MODE=TAG
:TAG=
01:TAG=
3sec
SET OK
**
MENU
ESC
3sec
PRINT
ALARM
ACK
TAG 1
01
