YOKOGAWA µR1800 User Manual

9 - 7
IM 4H3B1-01E
9. CHANGING INITIAL SETTINGS
9.1.6 How to Set the Sampling Interval for Rate-of-change Alarms
You can change the sampling interval for rate-of-change alarms by the following setting
(common for all alarms).
The initial value is ‘01’ sample (the actual time depends on the model and A/D
frequency; see also table 9.1 on page 9-9).

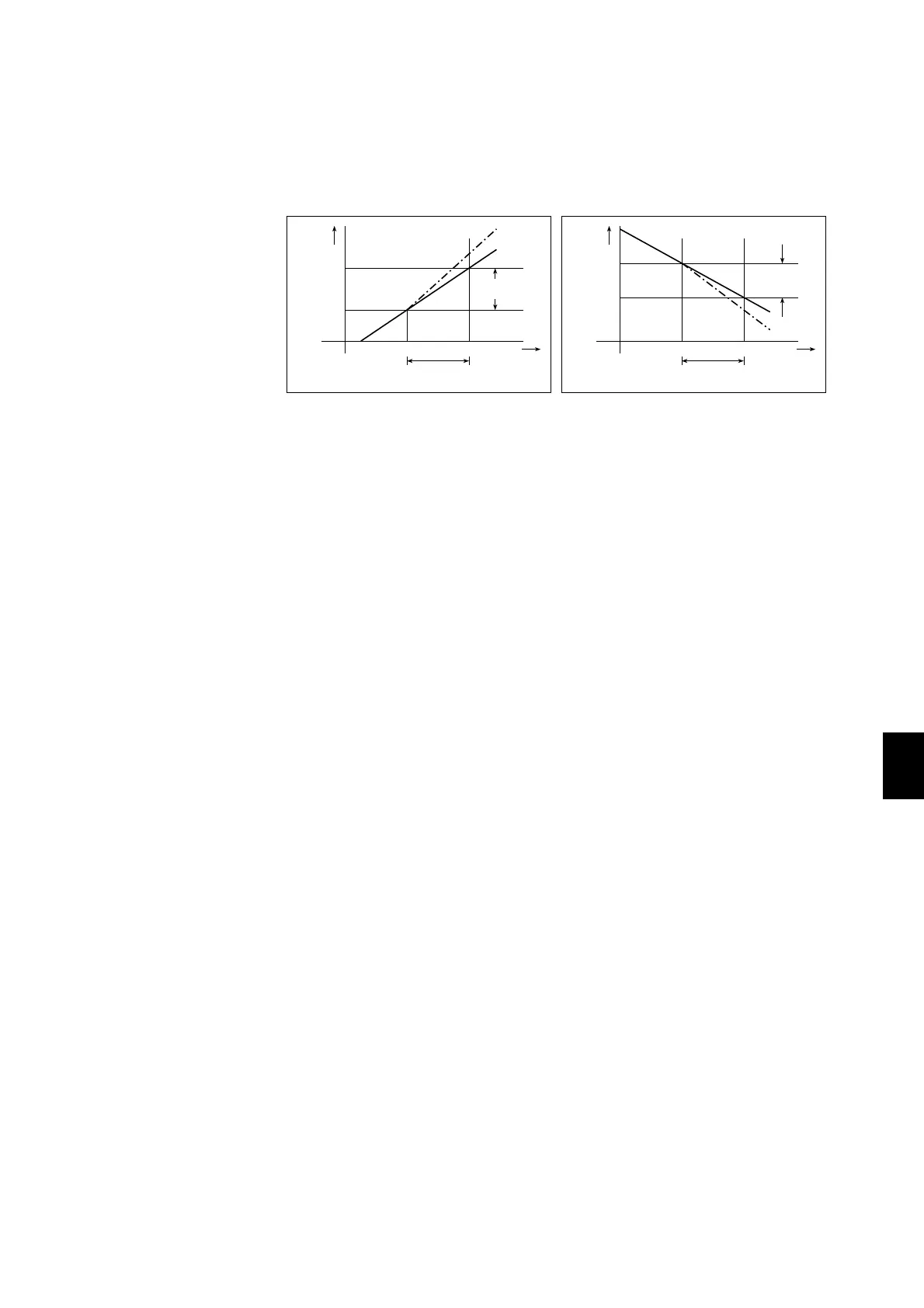

Figure 9.4
If you want to change the sampling interval for rate-of-change on increasing signal:
SETTING PROCEDURE:
Enter the SET UP Mode by turning ‘ON’ the power while pressing and holding the
ENT-key until the SET UP display appears.
Use the UP/DOWN-keys to select the display ‘SETUP=ALARM’. Press the ENT-key.
Press the ENT-key until the display ‘R_TIME=1’ appears. Select the sampling interval
(min. is 1 sample interval, max. is 15 sample interval). After selection, press the ENT-
key.
The setting has been completed, but has not been stored yet.
Before leaving the SET UP Mode, you have to store your new settings. Proceed with the
alarm settings until the display ‘*ALARM SET*’ appears. Press the ESC-key to return
to the ‘SETUP=ALARM’ display and then select the ‘SETUP=END’ display.
Press the ENT-key. Select ‘END=STORE’ to keep your new settings or
‘END=ABORT’ and press the ENT-key. After a few seconds, the Operation Mode will
appear.
If you want to change the sampling interval for rate-of-change on decreasing signal:
SETTING PROCEDURE:
Enter the SET UP Mode by turning ‘ON’ the power while pressing and holding the
ENT-key until the SET UP display appears.
Use the UP/DOWN-keys to select the display ‘SETUP=ALARM’. Press the ENT-key.
Press the ENT-key until the display ‘r_TIME=1’ appears. Select the sampling interval
(min. is 1 sample interval, max. is 15 sample interval). After selection, press the ENT-
key.
The setting has been completed, but has not been stored yet.
Before leaving the SET UP Mode, you have to store your new settings. Proceed with the
alarm settings until the display ‘*ALARM SET*’ appears. Press the ESC-key to return
to the ‘SETUP=ALARM’ display and then select the ‘SETUP=END’ display.
Press the ENT-key. Select ‘END=STORE’ to keep your new settings or
‘END=ABORT’ and press the ENT-key. After a few seconds, the Operation Mode will
appear.
9.1 How to Change Initial Settings for the Alarm Function
Measured
value
R alarm
T
Time
Sampling interval
1
T
2
t
1
t
2
Variation
T –T
21
Measured
value
r alarm
T
Time
Sampling interval
2
T
1
t
1
t
2
Variation
T –T
21
