7.1.3 Thermocouple and Resistance Temperature Detector Setting
(TC, RTD Setting)
In the case that the measured signal is a TC (Thermocouple) or RTD (Resistance
Temperature Detector) the range can be set the same way as if it were a DC-voltage.
MENU:

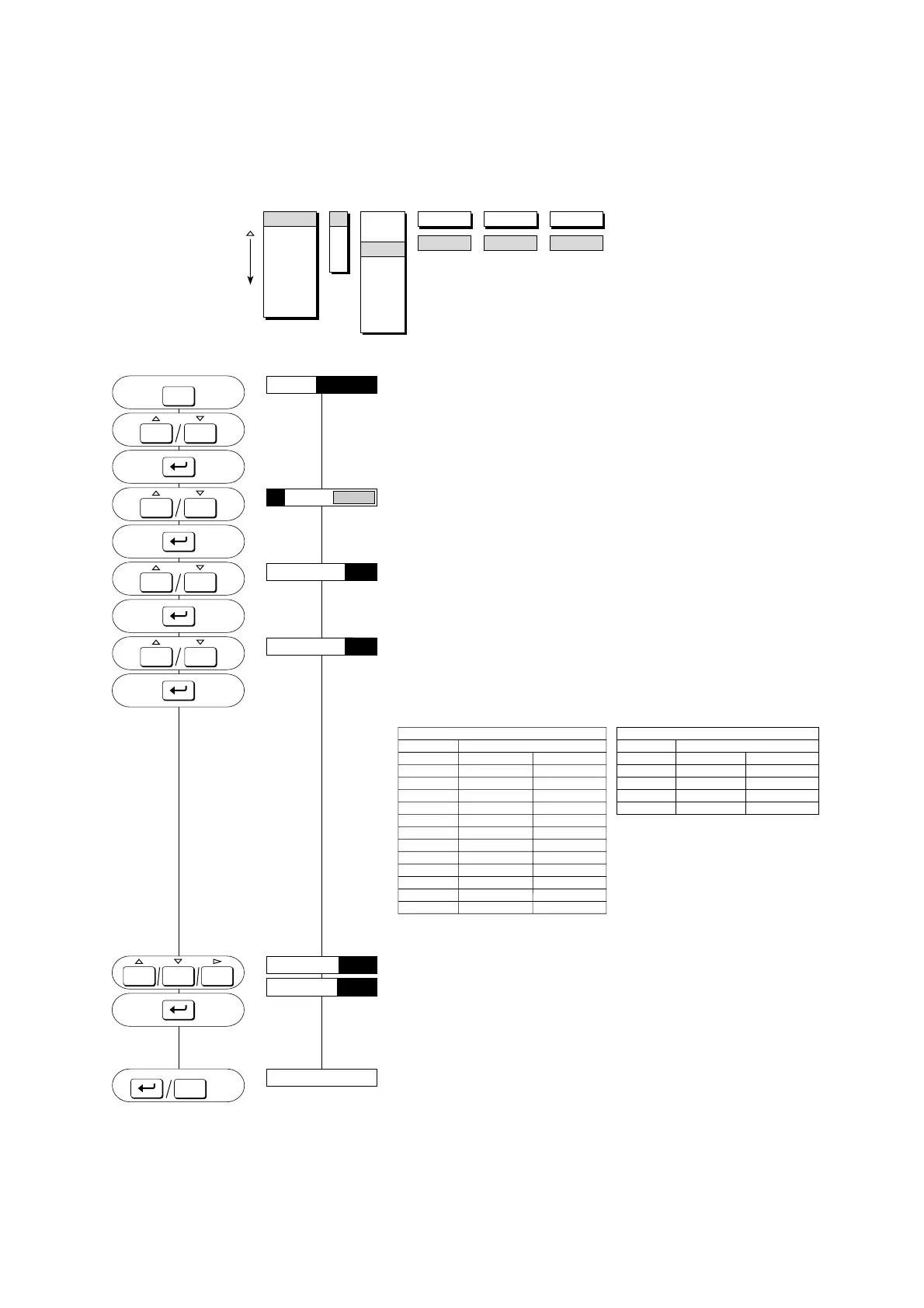

SETTING PROCEDURE:
Press the MENU-key for three seconds to enter the SET mode.
Select the ‘SET=RANGE’ display by using the UP/DOWN-keys.
Then press the ENT-key.
Use the UP/DOWN-keys to select the desired channel.
Press the ENT-key.
Use the UP/DOWN-keys to select ‘TC’, or ‘RTD’.
Press the ENT-key.
Select the desired type (R, S, B, K, E, J, T, N, W, L, U in case of
TC, or PT, JPT in case of RTD) using the UP/DOWN-keys and
press the ENT-key.
Table 7.2 TC Type Description and RTD Type Description
Select the desired minimum value (LEFT) and maximum value of
the recording span (RIGHT) in the same way as described under
‘VOLT setting’.
Note that the recording span cannot be beyond the input range, nor
can LEFT be equal to RIGHT.
The setting is completed.
Press the ENT-key to return to the ‘01:MODE=TC’ display; or
press the ESC-key to go to the ‘SET=RANGE’ display; or press
the MENU-key for three seconds to return to the Operation mode.
NOTE There is no need to set the temperature unit in case of TC or RTD input, since °C will
be automatically provided. To change the setting of the temperature unit, which can
only be changed in the SET UP Mode, see 9.6.
R
S
B
K
E
J
T
N
W
L (Fe-CuNi)
U (Cu-CuNi)
PLT (PRATINEL)*1
PR (PR40-20)*1
*1: For /N1 model
0.0 to 1760.0°C
0.0 to 1760.0°C
0.0 to 1820.0°C
–200.0 to 1370.0°C
–200.0 to 800.0°C
–200.0 to 1100.0°C
–200.0 to 400.0°C
0.0 to 1300.0°C
0.0 to 2315.0°C
–200.0 to 900.0°C
–200.0 to 400.0°C
0.0 to 1400.0°C
0.0 to 1900.0°C
32 to 3200°F
32 to 3200°F
32 to 3308°F
–328 to 2498.0°F
–328.0 to 1472.0°F
–328.0 to 2012.0°F
–328.0 to 752.0°F
32 to 2372°F
32 to 4199°F
–328.0 to 1652.0°F
–328.0 to 752.0°F
32 to 2552°F
32 to 3452°F
TC Type Description
PT (pt100 )
JPT (Jpt100 )
JP50 (JPt50 )*1
CU1 to 6 (Cu10 )*2
CU25 (Cu25 )*2
*1: For /N3 model
*2: For /N1 model
The Pt and JPt type can’t be set together with the Cu types.
Cu1: Cu10 GE
Cu2: Cu10 L&N
Cu3: Cu10 WEED
Cu4: Cu10 BAILAY
Cu5: Cu10 α=0.0392 at 20°C
Cu6: Cu10 α=0.0393 at 20°C
Cu25: Cu25 α=0.00425 at 0°C
–200.0 to 600.0°C
–200.0 to 550.0°C
–200.0 to 600.0°C
–200.0 to 300.0°C
–200.0 to 300.0°C
–328.0 to 1112.0°F
–328.0 to 1022.0°F
–328.0 to 1112.0°F
–328.0 to 572.0°F
–328.0 to 572.0°F
RTD Type Description
Range
Range
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
Ω
TYPE
N
LEFT
0.0
RIGHT
800.0
RANGE
ALARM
UNIT
CHART
CLOCK
COPY
AUX
01
02
03
04
SKIP
VOLT
TC
RTD
DI
DELT
SCL
SQRT
