7.3 How to Assign Units
When you are using scaling (SCL) or the square root setting (SQRT), it is possible to
assign a different unit to the scales. Up to six characters can be set. Note that only four
characters will be shown on the display when tags are specified.
The initial value is all spaces. To set, proceed as follows:
MENU:

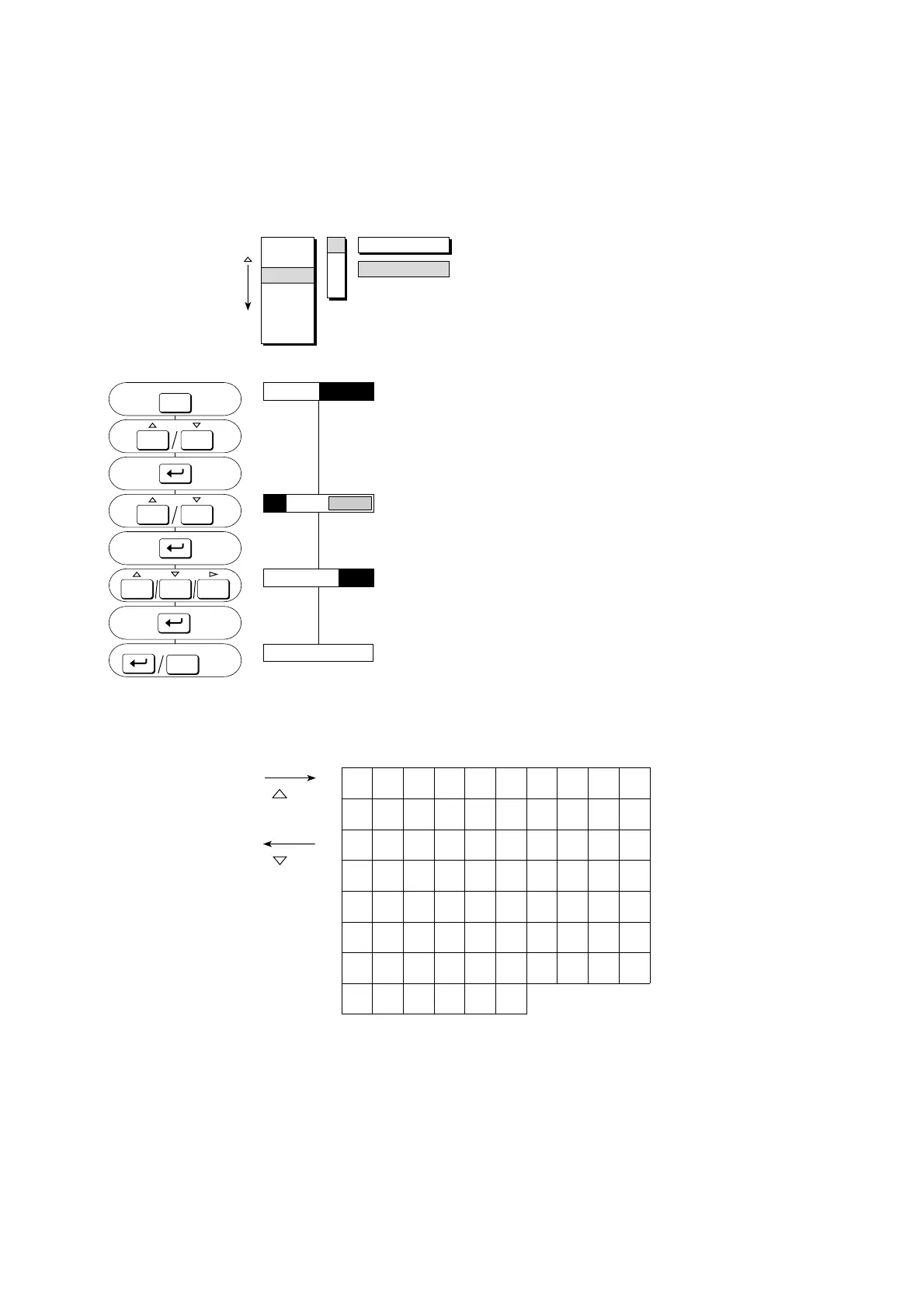

SETTING PROCEDURE:
Press the MENU-key for three seconds to enter the SET mode.
Select the ‘SET=UNIT’ display by using the UP/DOWN-keys.
Then press the ENT-key.
Use the UP/DOWN-keys to select the desired channel, and press
the ENT-key. If the selected channel is not of the SCL or SQRT-
type, data entry will be ignored.
Enter the desired unit (up to six characters) using the UP/DOWN
and RIGHT-keys. Then press the ENT-key. Refer to table 7.3.
The setting is completed.
Press the ENT-key to return to the ‘01:UNIT=Kg’ display; or
press the ESC-key to go to the ‘SET=UNIT’ display; or press the
MENU-key for three seconds to return to the Operation mode.
Table 7.3 Characters
MENU
ESC
PRINT
ALARM
ACK
PRINT
ALARM
ACK
SET=UNIT
01:UNIT=
01:UNIT=Kg
SET OK
**
3sec
MENU
ESC
3sec
PRINT
ALARM
ACK
FEED
-key
-key
ABCDEFGHI J
KLMNOPQRST
UVWXYZ
abcd
ef ghi j
kl mn
opqr st
uvwx
yz
01 234
567
8
9
#%
()
+–
*
/
.°µ
Ω
Ω
