9 - 6 IM 4H3B1-01E
9.1.5 How to Select the Alarm Indicator to be of HOLD/NON-HOLD Type
You can select whether or not to hold the indicator until reset.
The initial value is ‘NON-HOLD’, and common for all alarms.
NON-HOLD:
Indicator turns ON and OFF together with alarm.
HOLD:
Once flashing, the indicator remains flashing even if the alarm turns OFF. The indicator
shows the current alarm status by pressing the ACK-key (in alarm = ON, alarm
recovered = OFF).
SETTING PROCEDURE:
Enter the SET UP Mode by turning ‘ON’ the power while pressing and holding the
ENT-key until the SET UP display appears.
Use the UP/DOWN-keys to select the display ‘SETUP=ALARM’. Press the ENT-key.
Press the ENT-key until the display ‘IND=NONHOLD’ appears. Select HOLD or
NONHOLD. After selection, press the ENT-key.
The indicator HOLD/NONHOLD setting has been completed, but has not been stored
yet. Before you can adjust other settings in the SET UP Mode, you have to finish the
alarm settings until the ‘*ALARM SET*’ display appears.
Before leaving the SET UP Mode, you have to store your new settings. Proceed with the
alarm settings until the display ‘*ALARM SET*’ appears. Press the ESC-key to return
to the ‘SETUP=ALARM’ display and then select the ‘SETUP=END’ display.
Press the ENT-key. Select ‘END=STORE’ to keep your new settings or
‘END=ABORT’ and press the ENT-key. After a few seconds, the Operation Mode will
appear.

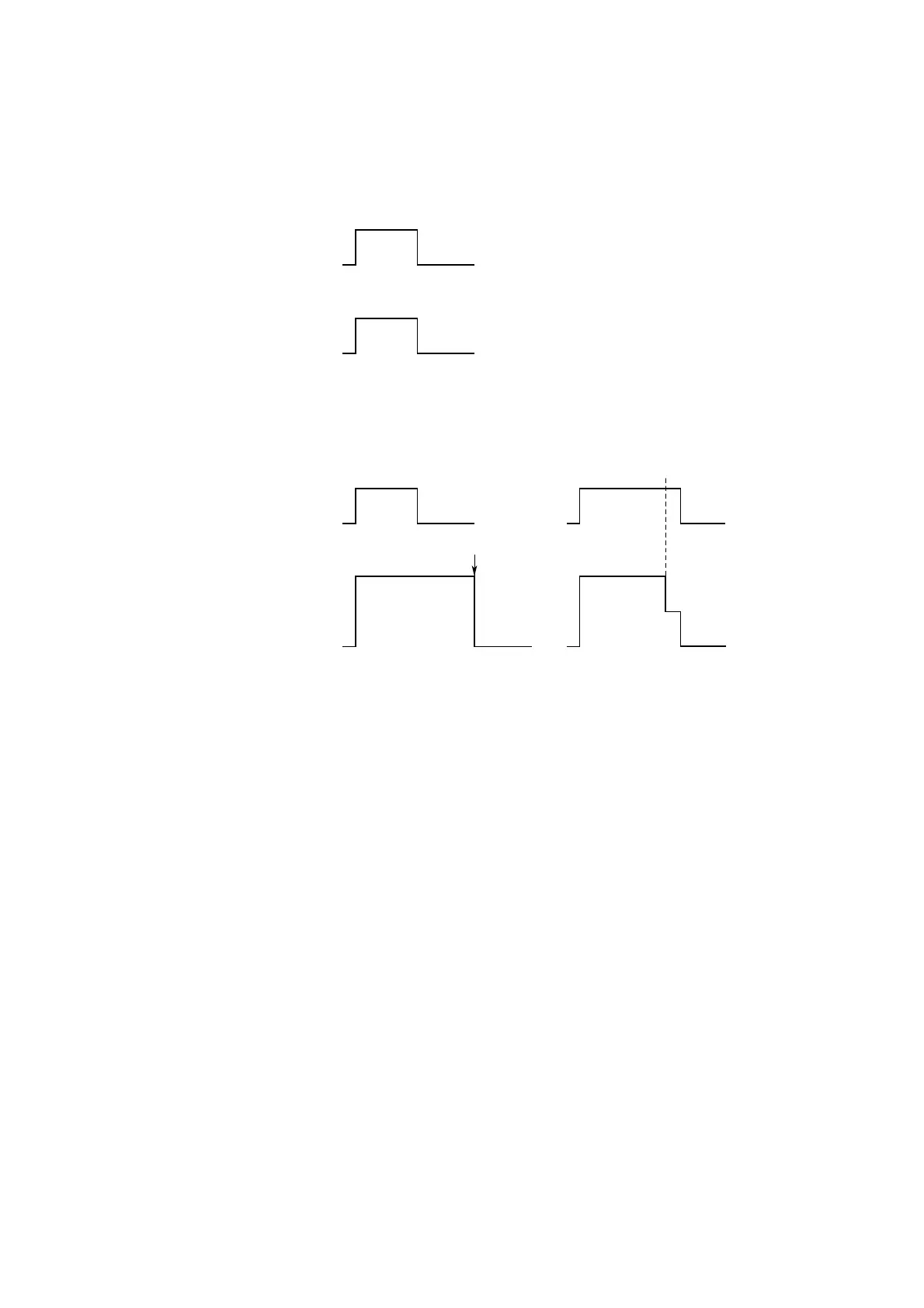

Alarm ON
Alarm OFF
Ind. OFF
Ind. ON
Alarm ON
Alarm OFF
Ind. flash
Ind. ON
Press ACK-key
Ind. OFF
Press ACK-key
