5. DAILY OPERATION
5.3 Basic Operation (Operation Mode)
5.3.1 How to Start/Stop the Recording
Pressing the RCD-key will cause the recording to start or stop. However, if the Start/
Stop function is controlled by remote control, this key will not work.
(For the status of the initial recording settings, see 6.5)
5.3.2 How to Feed the Chart
The paper can be fed by operating the FEED-key. The paper will be fed as long as the
FEED-key is pressed.
5.3.3 How to Get a Manual Printout
A manual printout contains:
• date & time
• channel number or tag / type of occured alarm / latest measured values / units (for all
channels)
To get a manual printout, press the PRINT-key, select ‘MANUAL_PRINT_START’
using the PRINT-key and press the ENT-key.
When the writing of this printout starts, the display will return to the previous one.
When the writing of this printout is finished, the manual printout function is cancelled
automatically and the µR1800 returns to the recording previously in progress.
When you want to cancel the manual printout function while in progress, press the
PRINT-key again, and the display ‘MANUAL_PRINT_STOP’ will appear. Press the
ENT-key, and the instrument returns to the recording previously in progress.
During the writing of the manual printout, the analog recording will stop. However,
scanning of the input and detection of alarms will still continue. When alarms occur
during the manual printout, the printing of these alarms will be done after the analog
recording (re)starts.

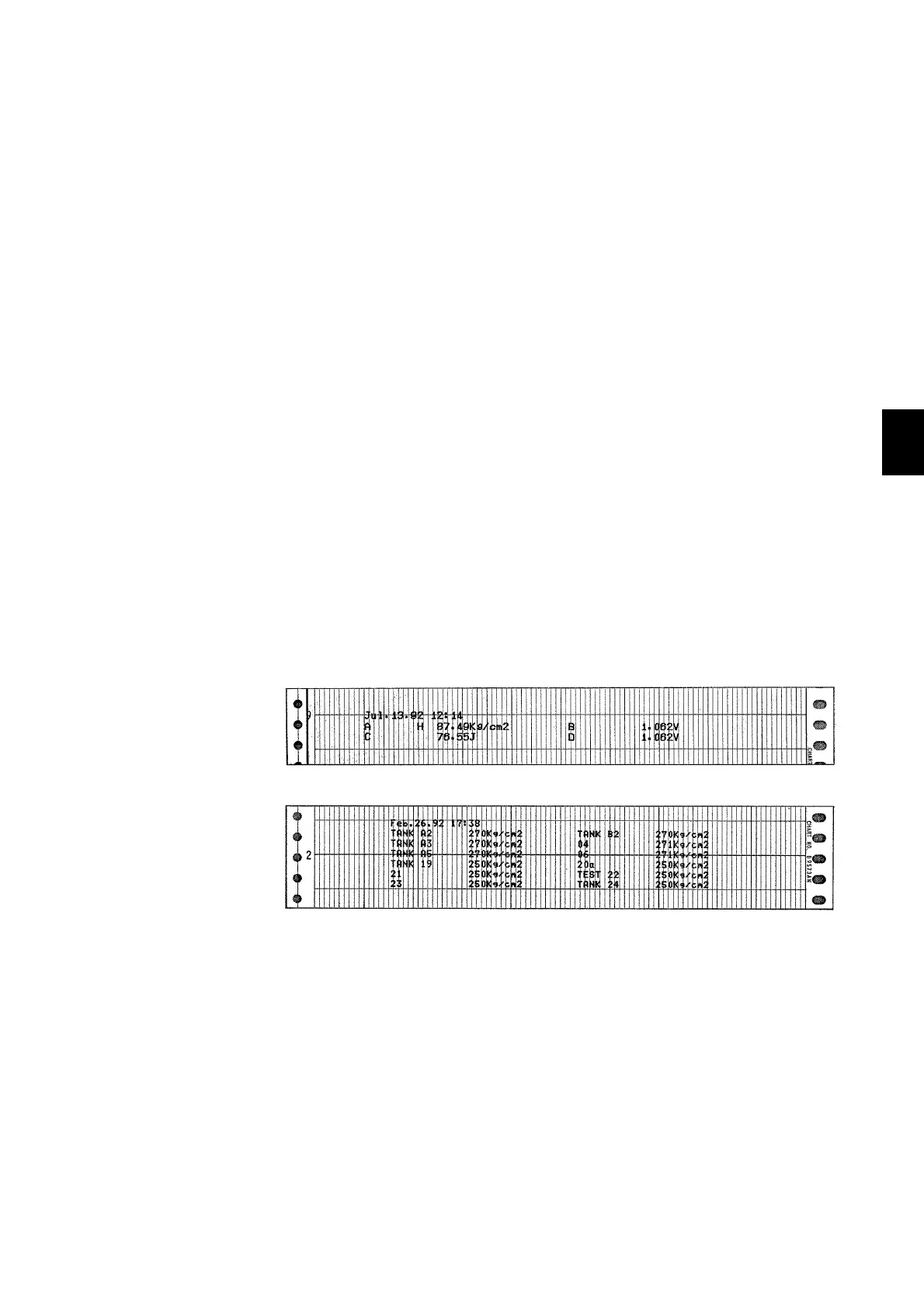

Figure 5.10a Manual Printout Example in case of the Pen Model (two columns appear when tags are
set, three columns appear in case of channel numbers)
5.3 Basic Operation (Operation Mode)
Figure 5.10b Manual Printout Example in case of the Dot Model (two columns appear when tags are
set, three columns appear in case of channel numbers)
