YOKOGAWA µR1800 User Manual

7 - 3
IM 4H3B1-01E
7.1 How to Set Input Range and Recording Span
7. BASIC SETTINGS
7.1.2 Voltage Measurement Setting (VOLT Setting)
In the case that the measured signal is a DC-voltage, the range can be set as follows:

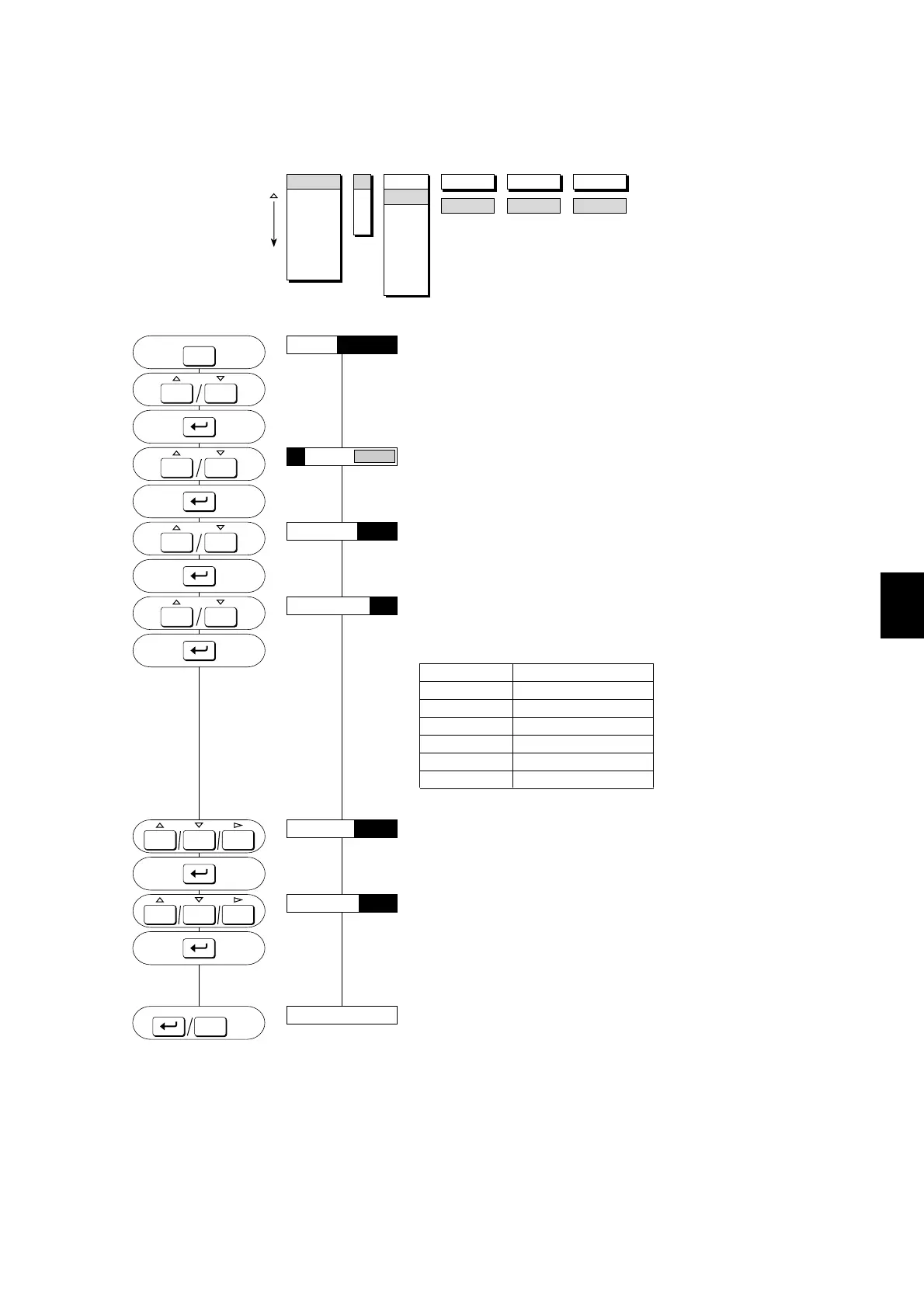

MENU:
SETTING PROCEDURE:
Press the MENU-key for three seconds to enter the SET mode.
Select the ‘SET=RANGE’ display by using the UP/DOWN-keys.
Then press the ENT-key.
Use the UP/DOWN-keys to select the desired channel.
Press the ENT-key.
Use the UP/DOWN-keys to select ‘VOLT’.
Press the ENT-key.
Select the desired range using the UP/DOWN-keys and press the
ENT-key.
Select the minimum value of the recording span (LEFT) using the
UP/DOWN and RIGHT-keys. Then press the ENT-key.
The display which appears will allow you to enter the maximum
value of the recording span (RIGHT). Select it the same way as for
the minimum value and press the ENT-key.
Note that the recording span cannot be beyond the input range, nor
can LEFT be equal to RIGHT.
The setting is completed.
Press the ENT-key to return to the ‘01:MODE=VOLT’ display; or
press the ESC-key to go to the ‘SET=RANGE’ display; or press
the MENU-key for three seconds to return to the Operation mode.
20mV
60mV
200mV
2V
6V
20V
–20.00 to 20.00mV
–60.00 to 60.00mV
–200.0 to 200.0mV
–2.000 to 2.000V
–6.000 to 6.000V
–20.00 to 20.00V
Display
Range
Table 7.1 VOLT Input Ranges
RANGE
2V
LEFT
0.000
RIGHT
2.000
RANGE
ALARM
UNIT
CHART
CLOCK
COPY
AUX
SKIP
VOLT
TC
RTD
DI
DELT
SCL
SQRT
01
02
03
04
:MODE=
01:MODE=VOLT
SET=RANGE
MENU
ESC
PRINT
ALARM
ACK
PRINT
ALARM
ACK
PRINT
ALARM
ACK
01:RIGHT=2.000
01:RANGE=2V
01:LEFT=0.000
3sec
SET OK
**
MENU
ESC
3sec
PRINT
ALARM
ACK
FEED
PRINT
ALARM
ACK
FEED
PRINT
ALARM
ACK
01
