Page 4-80 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 4 Maintenance

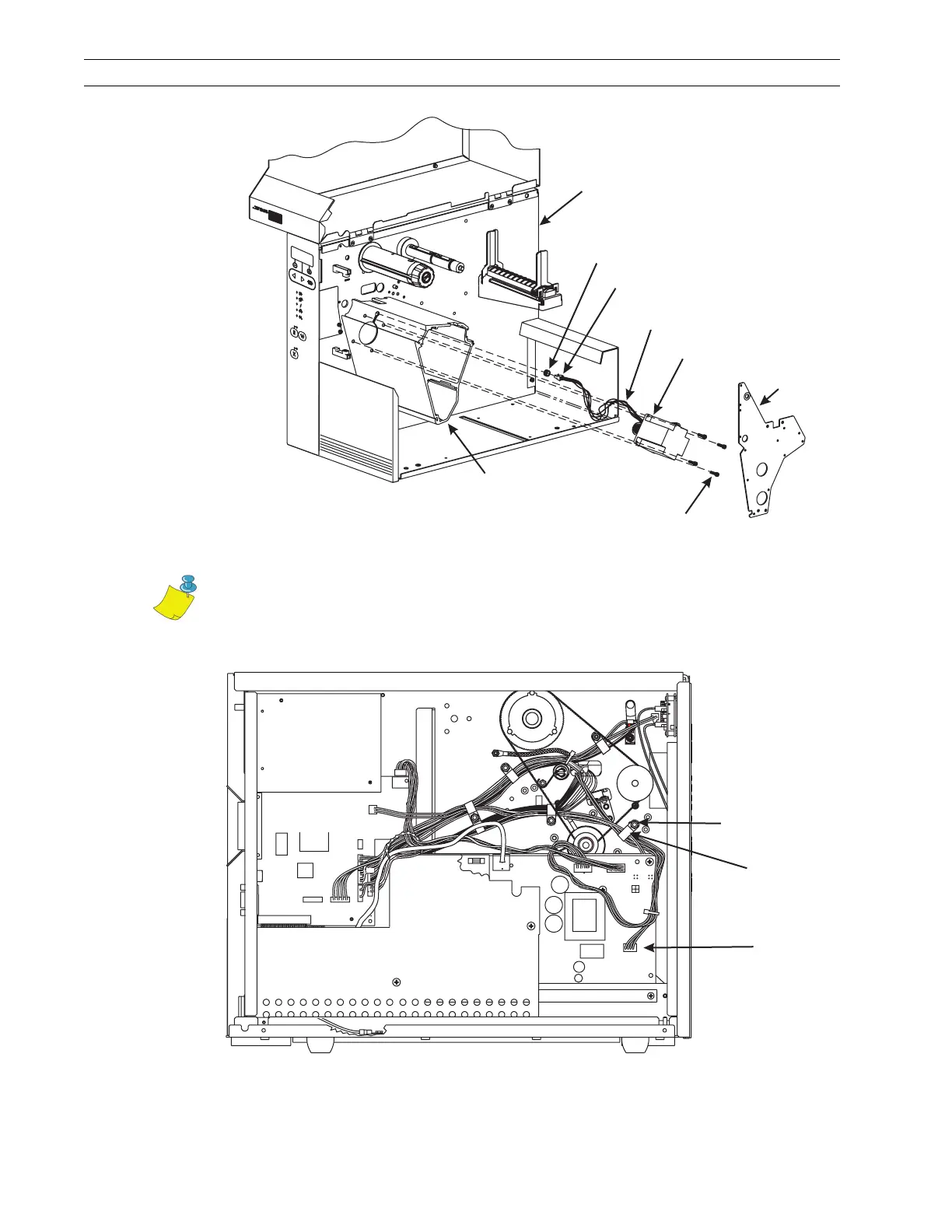

Figure 4-53. Remove and Install the DC Stepper Motor
10. Remove the side plate.
Figure 4-54. Stepper Motor Connection
11. Refer to Figure 4-54. Remove the nut and open the cable clamp securing the stepper
motor wires. Disconnect the stepper motor connector from the power supply, J2.
Main Frame
Grommet
Connector
Stepper Motor
Electrical Lead
Stepper Motor
Screws
POWER
TAKELABEL
ERROR
CHECKRIBBON
CANCEL
FEED
PAPER OU T
PAUSE
DATA
PREVIOUS
NEXT/SAVE
SETUP/EXIT
Stepper Motor Housing
Side
Plate
Note • When removing the side plate, the dancer assembly, upper media
sensor bracket, and media guide plate will remain attached to the main frame.
PCMCIA
Option Board
AC/DC
Power
PCB
P6
P25
P27
P8
P2
P1
P3
P32
P31
P19
P5
P10
Main Logic
PCB
Nut
Cable
Clamp
Stepper
Motor
Connector
To Next Page
