Use TFTP Server. This parameter determines the source of the TFTP server address. When set to
From DHCP, the phone obtains the TFTP server address from the DHCP server. When set to Fixed
address, the phone uses the TFTP address that you enter in this panel. Section 8.5.2.8 on page 107
describes the equivalent menu command.
TFTP Server Address. When Use TFTP Server is set to Fixed Address, this parameter provides the
TFTP Server address to the phone. Section 8.5.2.9 on page 108 describes the equivalent menu
command.
DSCP Setting. This parameter configures DiffServ (layer 3 QoS) setting. All voice packets (RTP)
leaving the phone will have the ToS byte in the IP header set to this value. Valid settings range
from 0 to 63. Section 8.5.2.10 on page 108 describes the equivalent menu command.
E.6.1.1 IP Communications
The IP Communications panel, as shown in figure E-17, displays the parameters needed by the
phone to communicate with the network. The IP Communications panel displays the
configuration options for the following parameters:
DHCP. This option allows you to enable or disable DHCP. Section 8.5.2.1 on page 105 describes
the equivalent menu command.
When DHCP is enabled, the DHCP server should provide the following information:
— IP address for the phone
— domain name
— subnet mask
— address of the default gateway

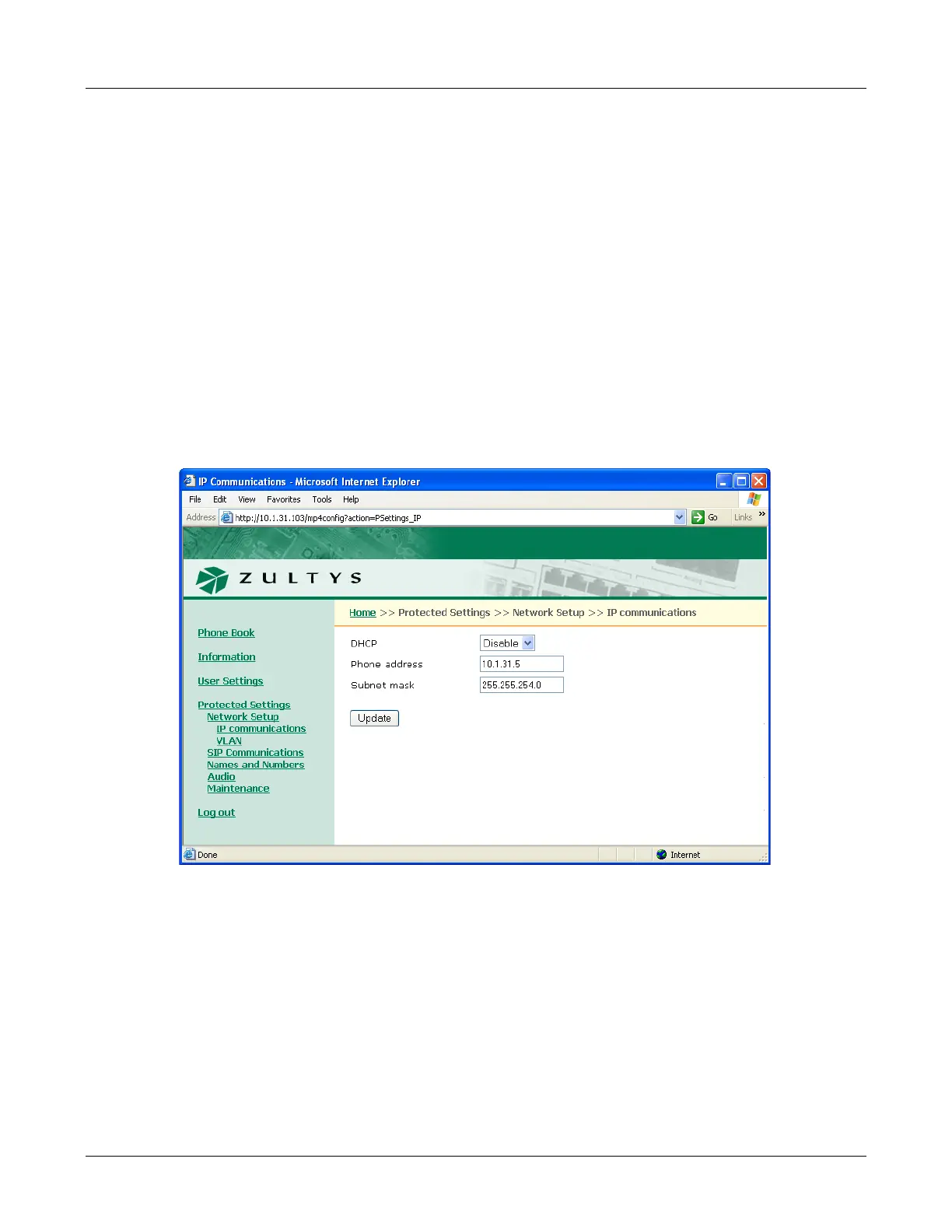

Figure E-17 Protected Settings – IP Communications panel
