3. Installation
15
5. Press the Update button
6. Select Log Out to exit the web interface utility.

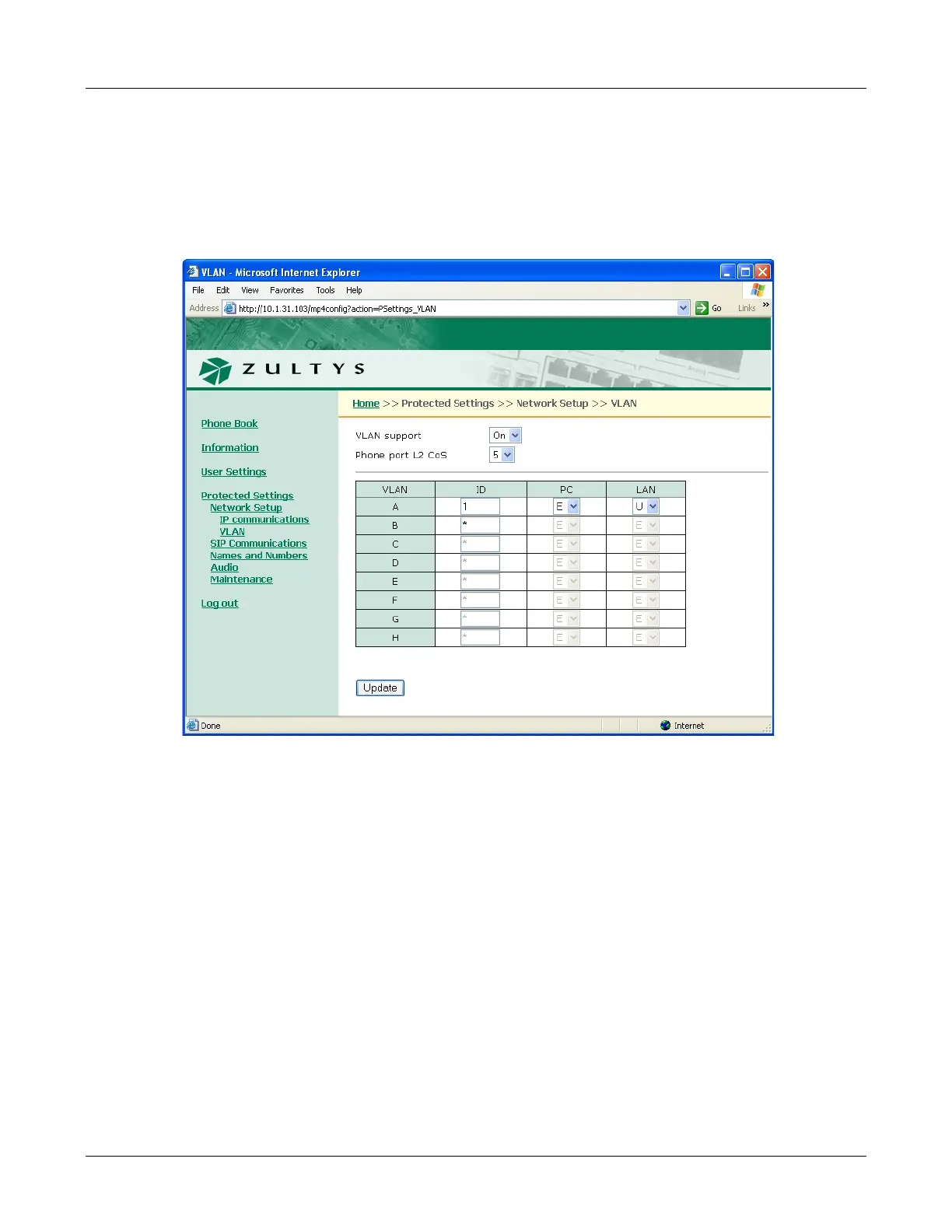

Figure 3-4 displays the Web Interface panel with this configuration. You can perform this
procedure through the phone Menu (section 8.5.4 on page 113) or with configuration file
commands (section C.4.6 on page 151).
3.1.4.5 Using an External Switch Box
You can connect a headset in series with the handset connector as shown in figure 3-5. The switch
box usually has an amplifier that is powered either from an ac outlet or from batteries. This box
allows you to select between using the handset and using a headset.
3.2 Power On
3.2.1 Description
When you power up the phone, it performs a quick power on self test, and typically starts
operation in less than 20 seconds. The exact time depends on your network. The phone tries to
find a DHCP server if DHCP is enabled.
1
The DHCP server points to a TFTP server. The TFTP
Figure 3-4 Disabling Ethernet Circuits
