Zurich ZR15 User Manual

Additional Tests
SYSTEM/ACTUATOR TESTS
36 For technical questions, please call 1-888-866-5797.
1. Select ESIM Forced Monitor Test in the Special Functions menu,
then press ENTER .
n An “instructional” screen displays. Prepare the vehicle for test as
directed:
- Start and idle the engine.
- When repeating the test, allow 30 seconds between tests.
2. Choose Yes to continue.

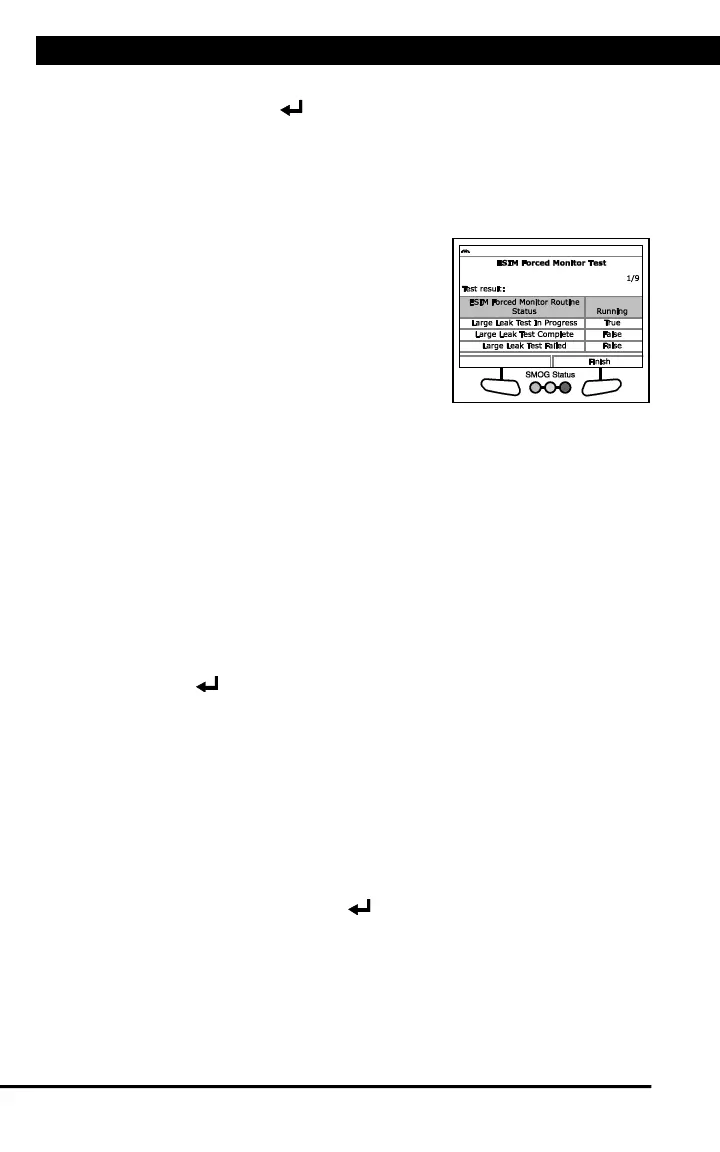

n A “status” screen displays while a
vehicle status check is performed.
3. A “confirmation” screen displays when
the test routine begins.
n A “results” screen displays when the
learn procedure has completed.
Depending on the results returned,
the screen shows one of the following:
- the message “Routine is complete”
- Live Data for NGC Routine Status, Large Leak Monitor
Status, ESIM Switch Closed, Purge Duty Cycle, Purge
AirFlow and ESIM Frozen Test Timer
4. Choose Finish to return to the Special Functions menu.
ETC System Test (001)
The ETC System Test lets you perform an Electronic Throttle Control
(ETC) system test.
1. Select ETC System Test in the Special Functions menu, then press
ENTER .
n An “instructional” screen displays. Prepare the vehicle for test as
directed:
- Turn the ignition on. DO NOT start the engine.
2. Choose Yes to continue.
n A “status” screen displays while a vehicle status check is
performed.
n The Select Throttle Position screen displays.
3. Select Normal, Closed, Open or the desired percentage (from 10%
to 70%), then press ENTER .

Zurich ZR15 Specifications

General

Live Data	Yes
Code Definitions	Yes
Graphing	Yes
Battery Voltage Check	Yes
Internet Updateable	Yes
Display	2.8-inch color LCD
OBDII Protocols	J1850 VPW, J1850 PWM, ISO9141
Functions	Read and clear codes, live data, freeze frame, I/M readiness, O2 sensor test, onboard monitor test, vehicle information
Multilingual Support	English, Spanish, French
