Zurich ZR15 User Manual

Additional Tests
SYSTEM/ACTUATOR TESTS
For technical questions, please call 1-888-866-5797. 69

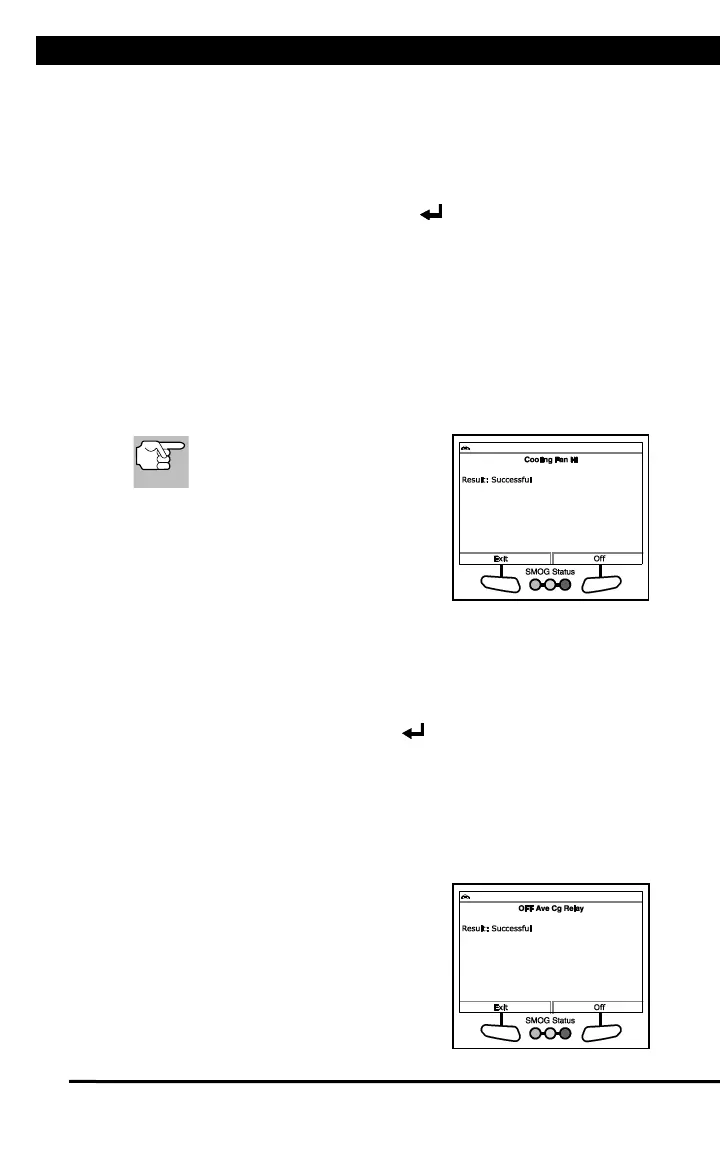

Cooling Fan
The Cooling Fan functions let you control operation of the battery cooling
fan motor.
1. Select Cooling Fan Hi, Cooling Fan Mid, Cooling Fan Lo or
Cooling Fan Stop, in the PCM Actuator Test and Special Function
Menu, as desired, then press ENTER .
n An “instructional” screen displays. Prepare the vehicle for test as
directed:
- Place the transmission in NEUTRAL.
- Verify the Ready Light is ON.
2. Choose Continue to proceed.
n The Control Cooling Fan screen displays.
3. Choose On to turn the cooling fan On. Choose Off to turn the cooling
fan off.
It may take from 3 to 10
seconds for cooling fan speed
to change.
n The display refreshes to show the
results. Repeat as desired.
4. Choose Exit to return to the PCM
Actuator Test and Special Function
Menu.
OFF Ave Cg Relay
The OFF Ave Cg Relay function lets you activate and deactivate the THS
charger adapter relay.
1. Select OFF Ave Cg Relay in the PCM Actuator Test and Special
Function Menu, then press ENTER .
n An “instructional” screen displays. Prepare the vehicle for test as
directed:
- Place the transmission in NEUTRAL.
- Verify the Ready Light is ON.
2. Choose Continue to proceed.
n The Control Relay screen displays.
3. Choose On to activate the relay. Choose
Off to deactivate the relay.
n The display refreshes to show the
results. Repeat as desired.
4. Choose Exit to return to the PCM
Actuator Test and Special Function
Menu.

Zurich ZR15 Specifications

General

Live Data	Yes
Code Definitions	Yes
Graphing	Yes
Battery Voltage Check	Yes
Internet Updateable	Yes
Display	2.8-inch color LCD
OBDII Protocols	J1850 VPW, J1850 PWM, ISO9141
Functions	Read and clear codes, live data, freeze frame, I/M readiness, O2 sensor test, onboard monitor test, vehicle information
Multilingual Support	English, Spanish, French
