Zurich ZR15 - To Perform a Charging System Check

Additional Tests
BATTERY/ALTERNATOR MONITOR
For technical questions, please call 1-888-866-5797. 87

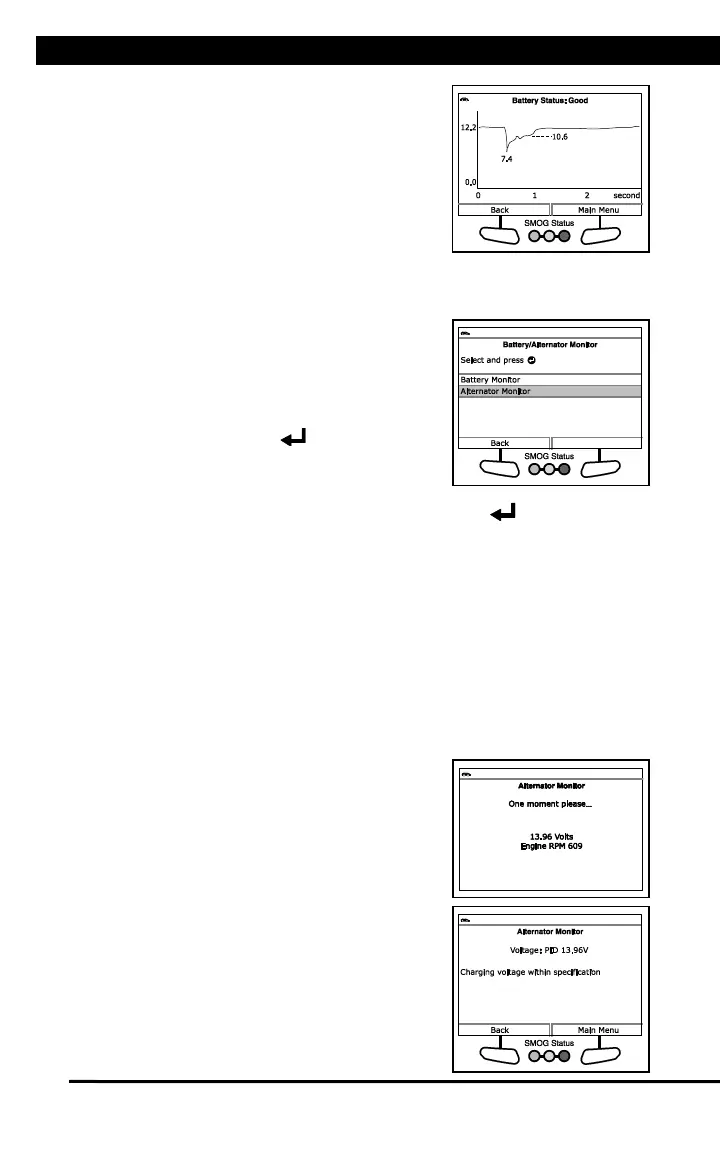

9. When the battery check is complete, a
results screen displays the battery
status. The System Status LEDs provide
a PASS/FAIL indication, as follows:
n Green = Good
n Yellow = Normal
n Red = Warning/Bad
10. Choose Main Menu to return to the Main
Menu.
To perform a charging system check:
1. Press M and release.
n The Main Menu displays.
2. Select Battery/Alternator Monitor,
then press ENTER .
n The Battery/Alternator Monitor Menu
displays.
3. Select Alternator Monitor, then press ENTER .
n An “instructional” message shows.
4. Start and warm the engine to normal operating temperature. Turn on
the headlights. Choose Continue to proceed.
n An “instructional” message shows.
5. Press the accelerator pedal to raise engine speed to 2000 RPM, and
maintain the engine speed.
n When engine speed is within the required range, the alternator
test begins. A progress screen shows.
n When the “countdown” timer expires, an “instructional” message
shows.
6. Turn the vehicle’s headlights off, and
return the engine to idle speed.
n A “One moment please…” message
displays while the test results are
retrieved.
7. When the alternator check is complete,
a results screen shows charging system
voltage and indicates whether or not the
charging system is within acceptable
limits. The System Status LEDs provide
a PASS/FAIL indication, as follows:
n Green = System within limits
Yellow = Over charging or under
charging
