Live Data Mode
LIVE DATA PLAYBACK
26 For technical questions, please call 1-888-866-5797.
- Ensure your vehicle is OBD2 compliant.
- Verify the connection at the DLC, and verify the ignition is ON.
- Turn the ignition OFF, wait 5 seconds, then back ON to reset the
computer.
- Press POWER/LINK to continue.
3. Press UP and DOWN to scroll through the available PIDs.
When a PID you wish to record is highlighted, press ENTER (a
“checkmark” shows to confirm your selection). Repeat until only the
PIDs you want to record are selected.
n To select all PIDs, choose Select All PIDs.
n To deselect a PID, highlight the PID, then press ENTER . The
checkmark is removed.
To record all PIDs, use the UP and DOWN
buttons, as necessary, to highlight Record All PIDs, the
press the LD button to continue.
4. When you are finished making your selections, choose Done to
continue.
n The Record Live Data screen displays.
n Put the engine in the operating condition where the problem
manifests itself.
- If necessary, drive the vehicle until you reach the vehicle speed
at which the problem occurs.

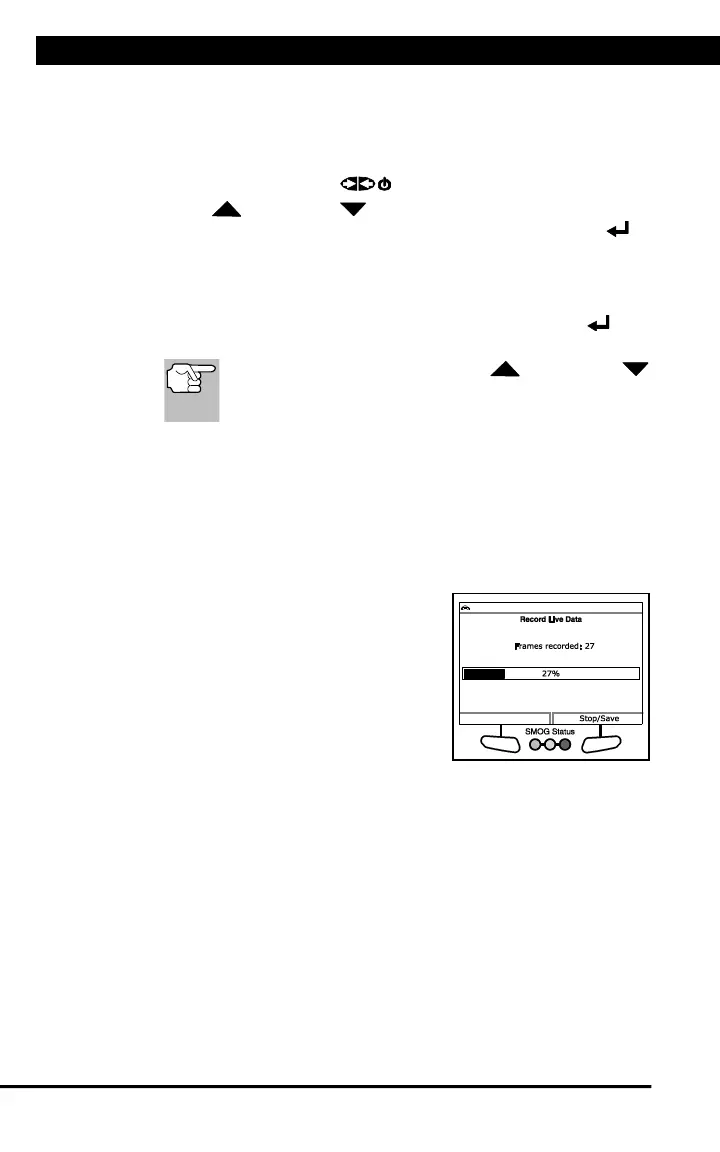

5. When the problem occurs, choose
Record.
n A progress message shows on the
display.
n When recording is complete, a
confirmation screen displays.
Choose Yes to playback Live Data
(see LIVE DATA PLAYBACK on
page 26 for details) or No to return
to the Live Data menu, as desired.
n If recording was not successful, an advisory message displays.
Choose Continue to return to the Live Data menu.
LIVE DATA PLAYBACK
Once Live Data has been recorded, it is saved in the Scan Tool's memory.
You can view recorded Live Data immediately after recording by selecting
Yes from the Record Live Data confirmation screen (see RECORDING
(CAPTURING) LIVE DATA on page 23 for more information), or you can
view it later using the "Playback" function.
