Zurich ZR15 User Manual

Additional Tests
SYSTEM/ACTUATOR TESTS
64 For technical questions, please call 1-888-866-5797.

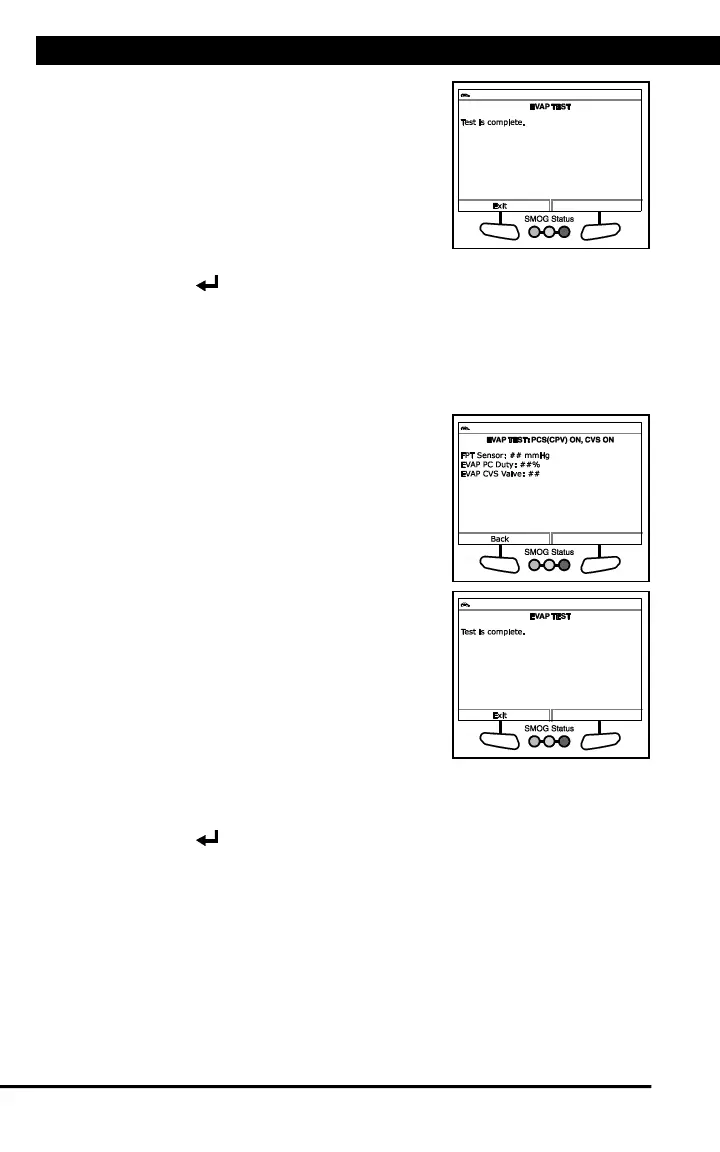

4. Choose Back to exit the test.
n A “Test is complete” message
displays.
5. Choose Exit to return to the EVAP TEST
menu.
To perform the MULTI SOLENOID test:
1. Select MULTI SOLENOID in the EVAP TEST menu, then press
ENTER .
n An “instructional” screen displays. Prepare the vehicle for test as
directed:
- Make sure the battery is fully charged.
- Turn the ignition on. DO NOT start the engine.
2. Choose Continue to proceed.
n The Select Test screen displays.
3. Select the desired test, then choose
Continue.
n A “status” screen displays while the
test is in progress.
n The screen shows the EVAP TEST
selected, the FPT Sensor pressure,
the EVAP PC Duty cycle, and the
EVAP CVS Valve status.
4. Choose Back to exit the test.
n A “Test is complete” message
displays.
5. Choose Exit to return to the EVAP TEST
menu.
To perform the FUNCTION TEST:
1. Select FUNCTION TEST in the EVAP TEST menu, then press
ENTER .
n An “instructional” screen displays. Prepare the vehicle for test as
directed:
- Make sure the battery is fully charged.
- Turn the ignition on. DO NOT start the engine.
2. Choose Continue to proceed.
n The Confirm Fuel Level screen displays.
3. If the fuel tank IS NOT empty, choose No and proceed to step 4.

Zurich ZR15 Specifications

General

Live Data	Yes
Code Definitions	Yes
Graphing	Yes
Battery Voltage Check	Yes
Internet Updateable	Yes
Display	2.8-inch color LCD
OBDII Protocols	J1850 VPW, J1850 PWM, ISO9141
Functions	Read and clear codes, live data, freeze frame, I/M readiness, O2 sensor test, onboard monitor test, vehicle information
Multilingual Support	English, Spanish, French
