CONTROLS AND INDICATORS
2 For technical questions, please call 1-888-866-5797.
CONTROLS AND INDICATORS

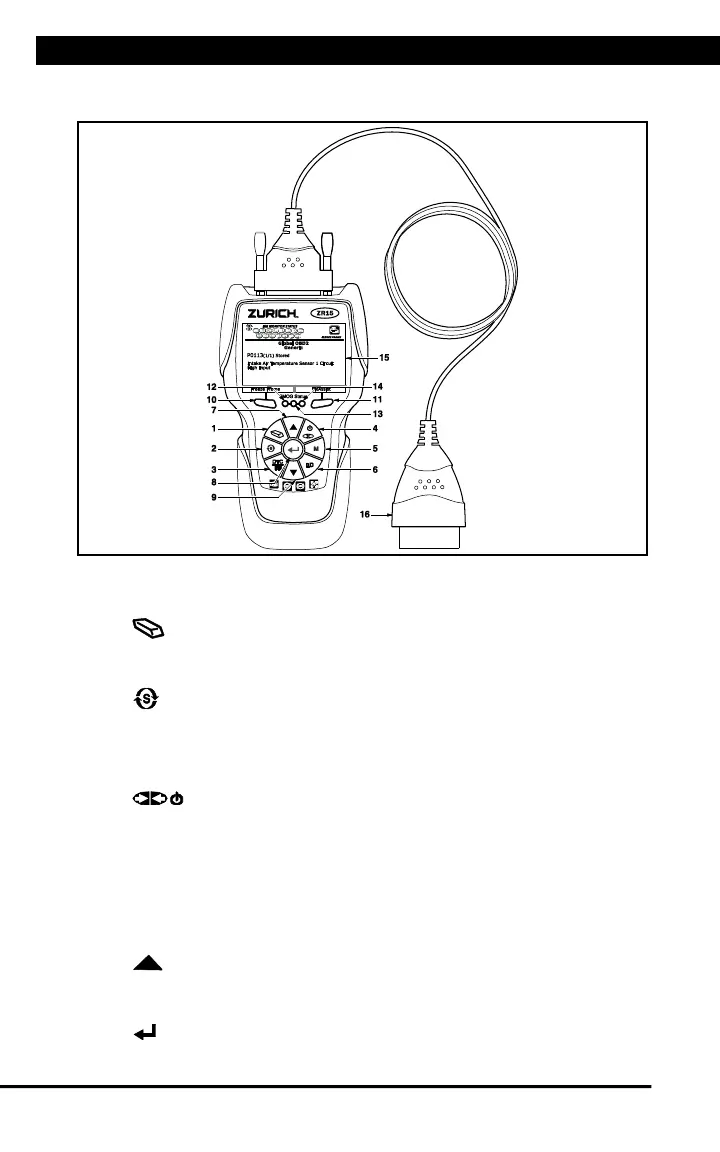

Figure 1. Controls and Indicators
See Figure 1 for the locations of items 1 through 16, below.
1. ERASE button - Erases Diagnostic Trouble Codes (DTCs), and
“Freeze Frame” data from the vehicle’s computer, and resets Monitor
status.
2. SYSTEM MENU button – When pressed, displays the System
Menu.
3. DTC/FF button - Displays the DTC View screen and/or scrolls the
LCD display to view DTCs and Freeze Frame data.
4. POWER/LINK button - When not connected to a vehicle,
turns the Scan Tool “On” and “Off” (press and hold for 3 seconds).
When connected to a vehicle, links the Scan Tool to the vehicle’s
PCM.
5. M button – When pressed, displays the Main Menu.
6. LD button – When pressed while linked to a vehicle, places the Scan
Tool in Live Data mode.
7. UP button – When in MENU mode, scrolls UP through the menu
options. When LINKED to a vehicle, scrolls UP through the current
display screen to display additional data.
8.
ENTER button - When in MENU mode, confirms the selected
option or value.
To Next Page
