Table 15: Electrical Specifications
6.5 Ethernet Connection
Advanced Navigation offers a 3 m industrial Ethernet cable with a MIL-DTL-38999 Series III connector to create
a rugged connection to the unit. This is supplied as part of the 3 Evaluation Kit, and also a recommended
accessory with the standalone unit. The MIL-DTL-38999 Series III RJ45 end is IP67 rated in mated position.

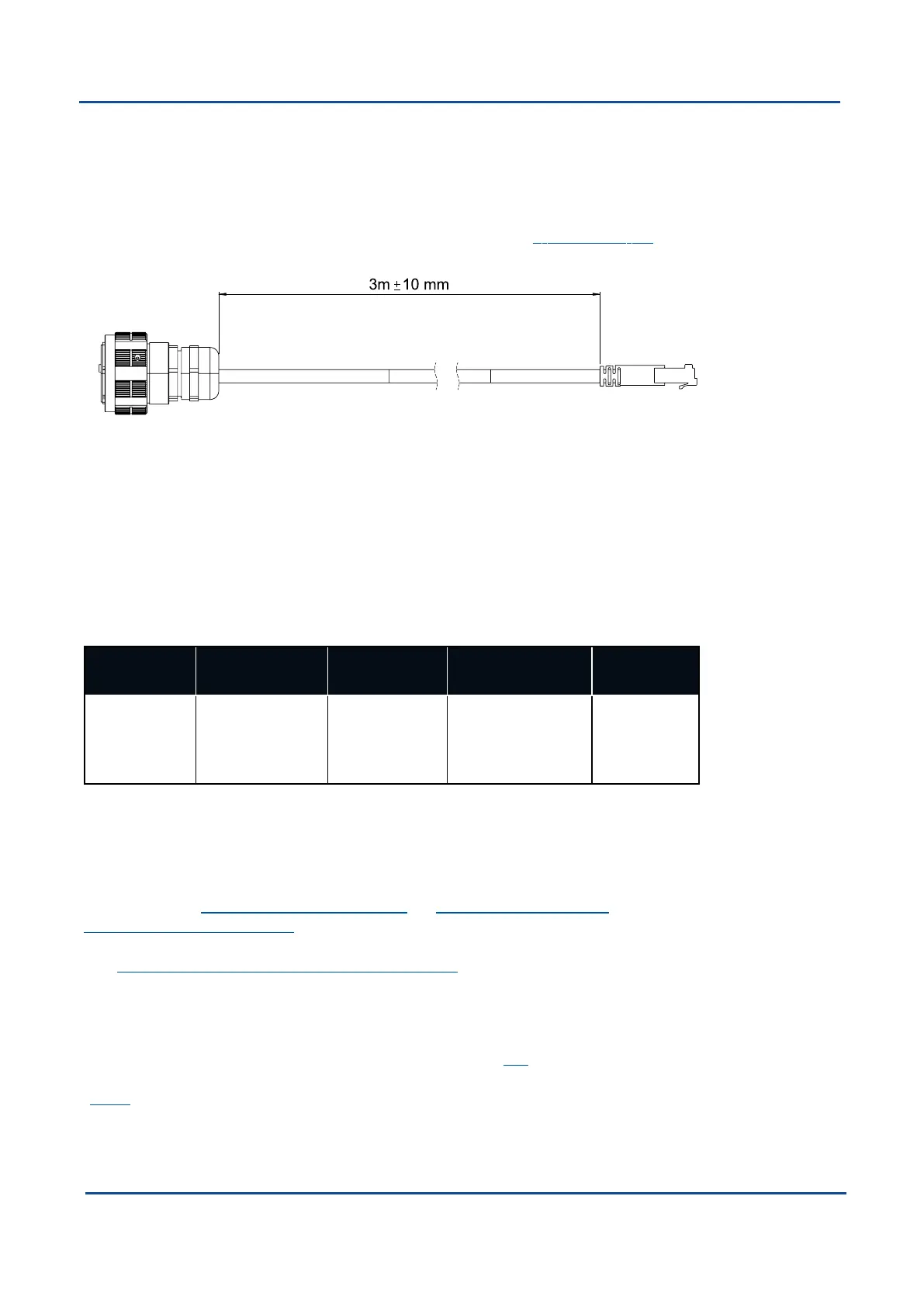

Figure 7: Ethernet Cable
There are several alternatives and options for differing application needs:
l
If a shorter cable is required, it can be either coiled or cut and re-terminated.
l
For evaluation purposes, a standard Cat5e or better Ethernet cable can be used directly into the unit.
l
If a longer cable is required, a standard Cat5e or better cable can be used with an Amphenol RJF-TV
series connector. This connector uses a MIL-DTL-38999 Series III mating connection in a size 19. The
connector has a normal Orientation Key, and is finished in an RoHS-compliant Black Zinc Nickel finish for
high corrosion resistance. Refer to Amphenol documentation for instructions on how to correctly ter-
minate these connectors.
Connector Manufacturer
and Series
Part Number Notes Finish
Cable side
Ethernet con-
nector
Amphenol
Socapex
RJF TV 6M ZN Aluminium,
Straight Plug with
metal gland, Size
19
Black Zinc
Nickel
Table 16: Ethernet Connector
6.6 IO Connection
The IOconnection is used to provide the power supply and access to a range of interface connections. It can be
achieved with an 6.6.1 IO Unterminated Cable, an 6.6.2 IOBreakout Cable or by building your own cable (see
6.6.3 Custom IO Termination).Connection is made through MIL-DTL-38999 Series III connectors, which
provide reliable and rugged connection under demanding conditions and are rated to IP67 in the mated position
(see 7.5 MIL-DTL-38999 Series IIIConnector Mating).
6.6.1 IO Unterminated Cable
An optional 5 m unterminated cable is available for custom connections. Each individual wire in the
unterminated cable is a colour-coded FEP coated wire. See Pin for details on pin out functions. Custom cable
lengths for unterminated types are available subject to minimum order quantities and lead times; contact the
Sales team for more information
