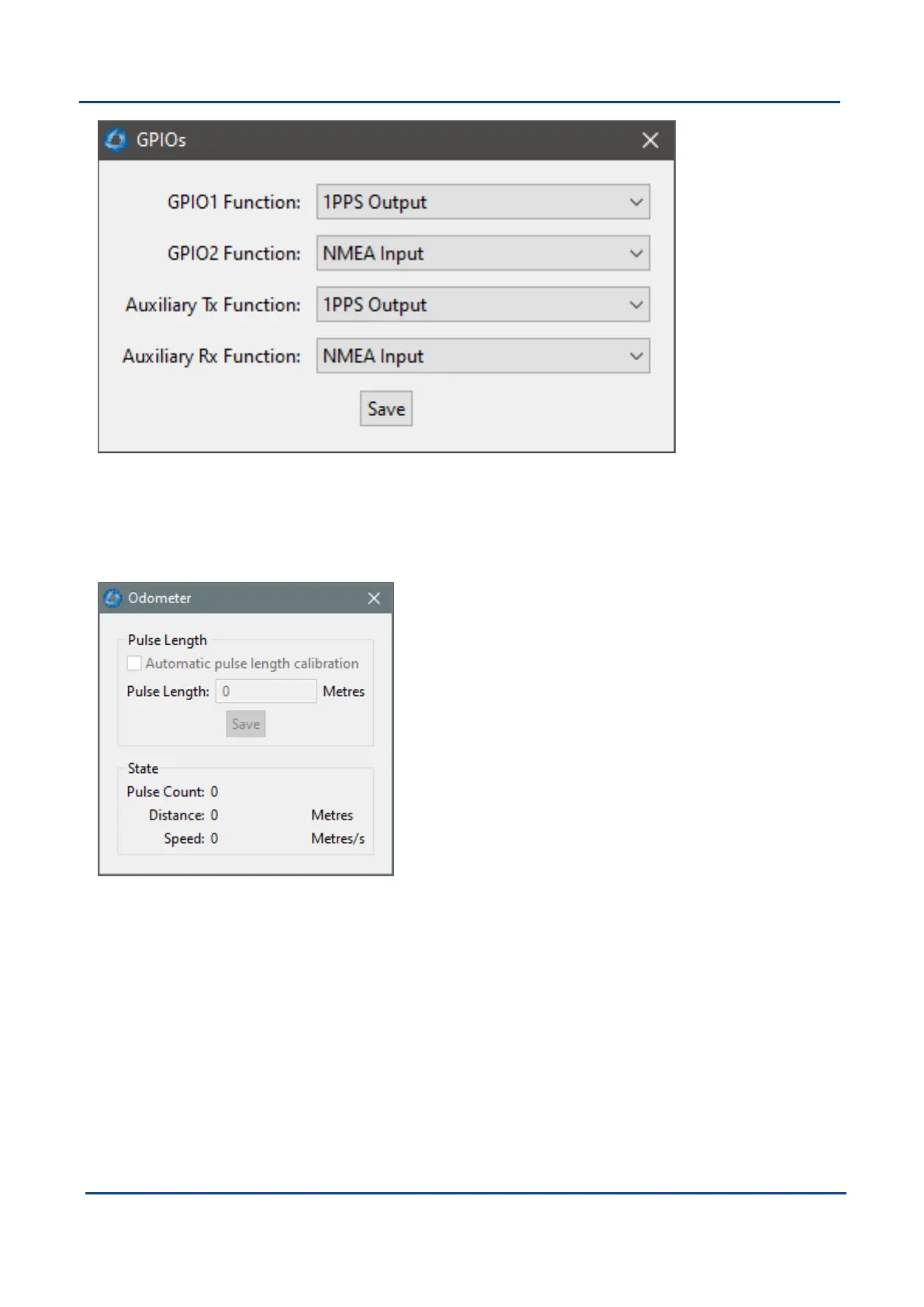

Figure 63: Boreas Manager GPIO configuration Dialogue
9.2.7.5 Odometer
The Odometer dialogue allows the user to configure the odometer pulse length and view the real time odometer
data to verify correct operation.
Figure 64: Boreas Manager Odometer Dialogue
9.2.7.6 GPIO Output
The GPIO output configuration dialogue allows the user to configure the output rates for the GPIO and Auxiliary
RS232/RS422 data functions NMEA, TSS and PASHR.
