R3132 Series Spectrum Analyzer Operation Manual
2.3.8 Spectrum Mask Measurement
2-93
Measurements Using the Spectrum Mask Function
28. Two markers are displayed at both of the adjacent channel positions for each
sweep, and a ratio of the channel leakage power to the channel power within the
carrier bandwidth is displayed for the corresponding adjacent channel.

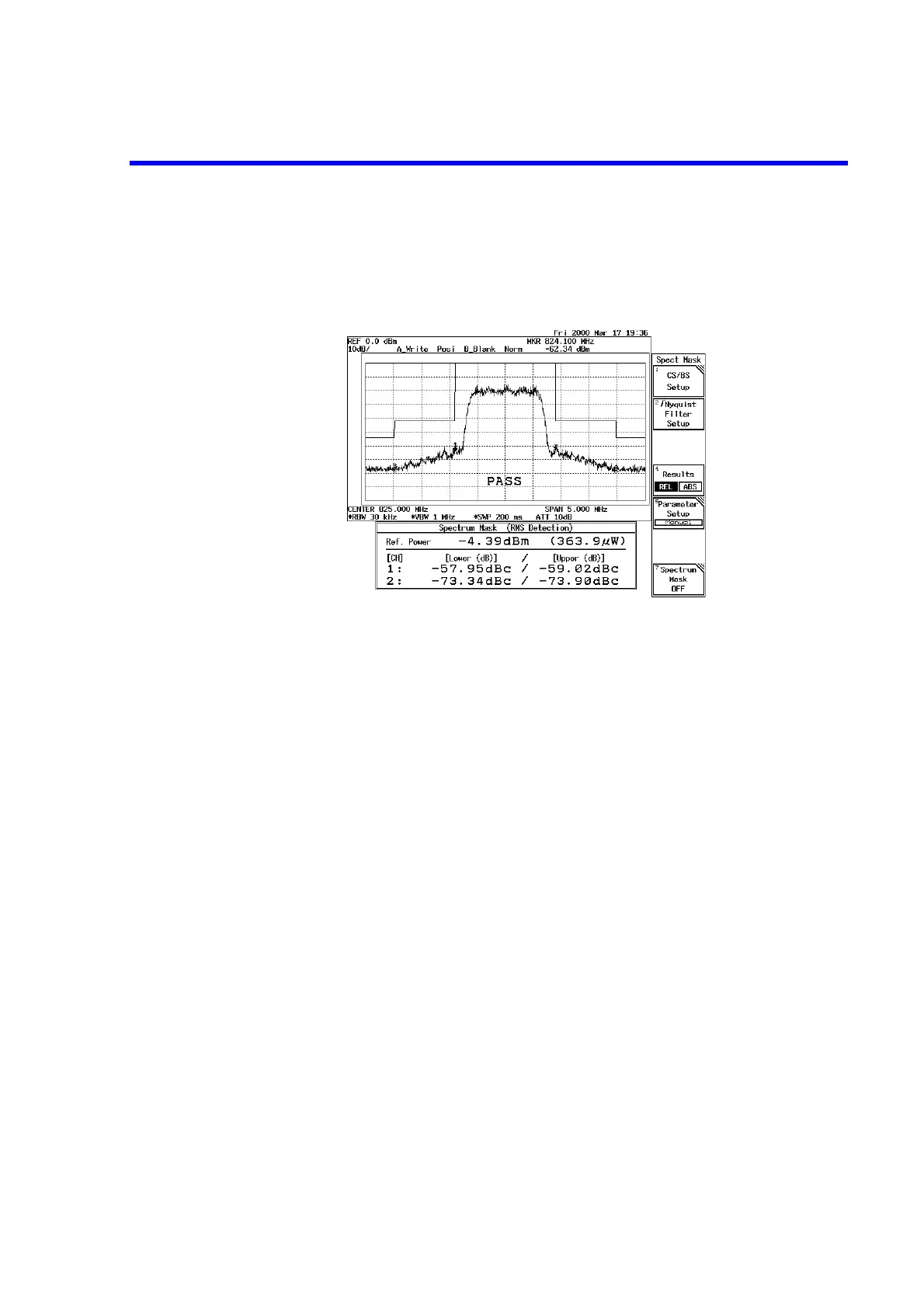

Figure 2-93 Spectrum Mask Measurement Screen
