R3132 Series Spectrum Analyzer Operation Manual
5.2.4 Resolution Bandwidth Switching Uncertainty
5-16
5.2.4 Resolution Bandwidth Switching Uncertainty
This set utilizes the Cal. Signal for measuring the switching uncertainty between resolution bandwidth. At
each resolution bandwidth setting, the displayed amplitude variation of the signal in measured using delta
marker mode.
Specification:
Reference to 300 kHz RBW after auto calibration
±0.5 dB 1 kHz to 3 MHz
Instruments Required:
Procedures:
Connecting the calibration signal
1. On the R3132 series, connect the BNC cable from CAL OUT connector to the
INPUT connector as shown in Figure 5-4.

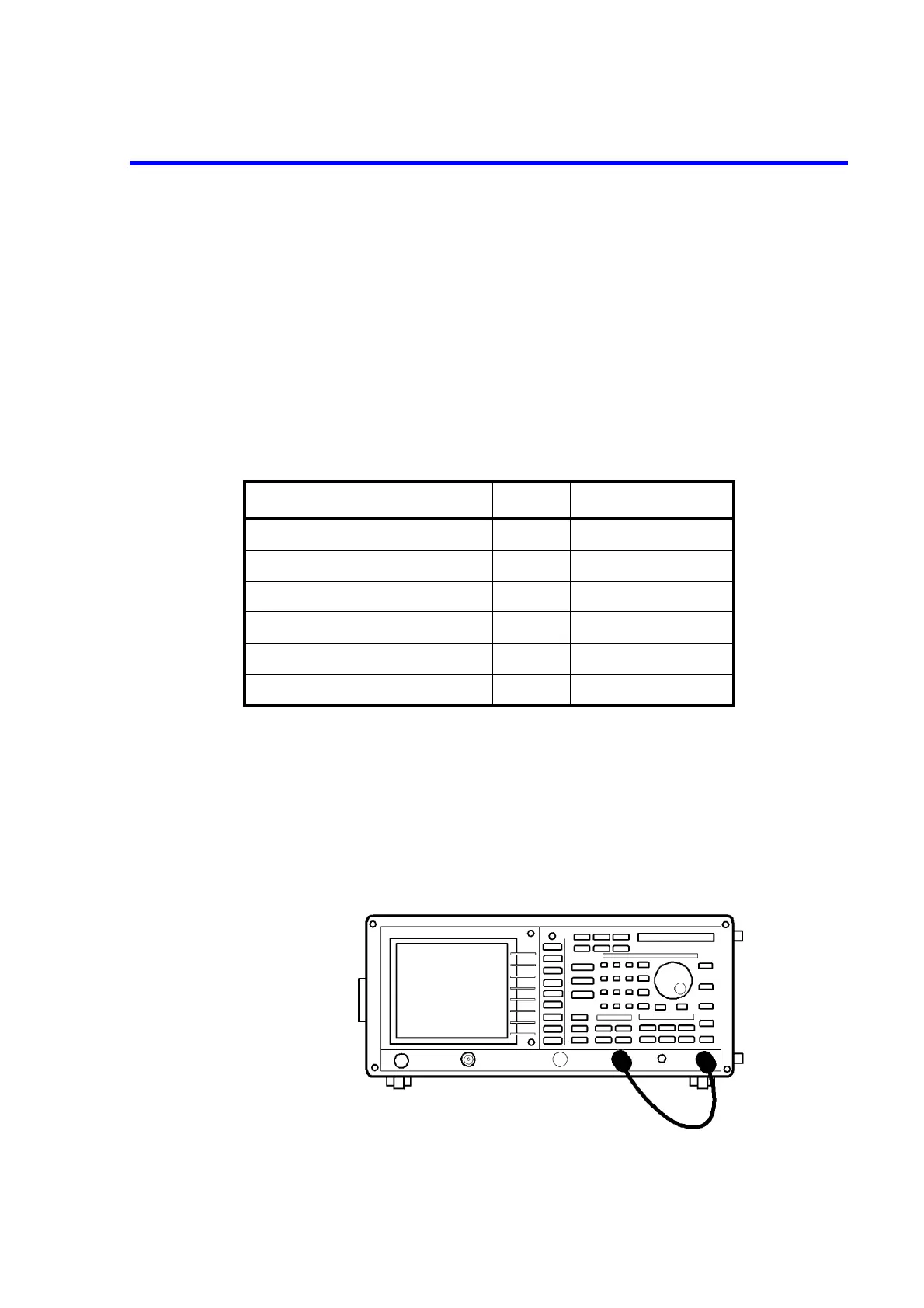

Figure 5-4 Setup of Resolution Bandwidth Switching Uncertainty
Instruments Qty. Recommended Model
RF Cable BNC(m)-BNC(m) 1 A01261-30
RF Cable BNC(m)-BNC(m) 75 Ω 1
*1
A01045
Adapter N(m)-BNC(f) 1
Adapter N(m)-BNC(f) 75 Ω 1
*1
Adapter SMA(f)-SMA(f) 1
*2
Adapter SMA(m)-BNC(f) 1
*2
*1 R3132N Only
*2 R3182 Only
