R3132 Series Spectrum Analyzer Operation Manual
2.4.2 Saving or Recalling Data
2-108

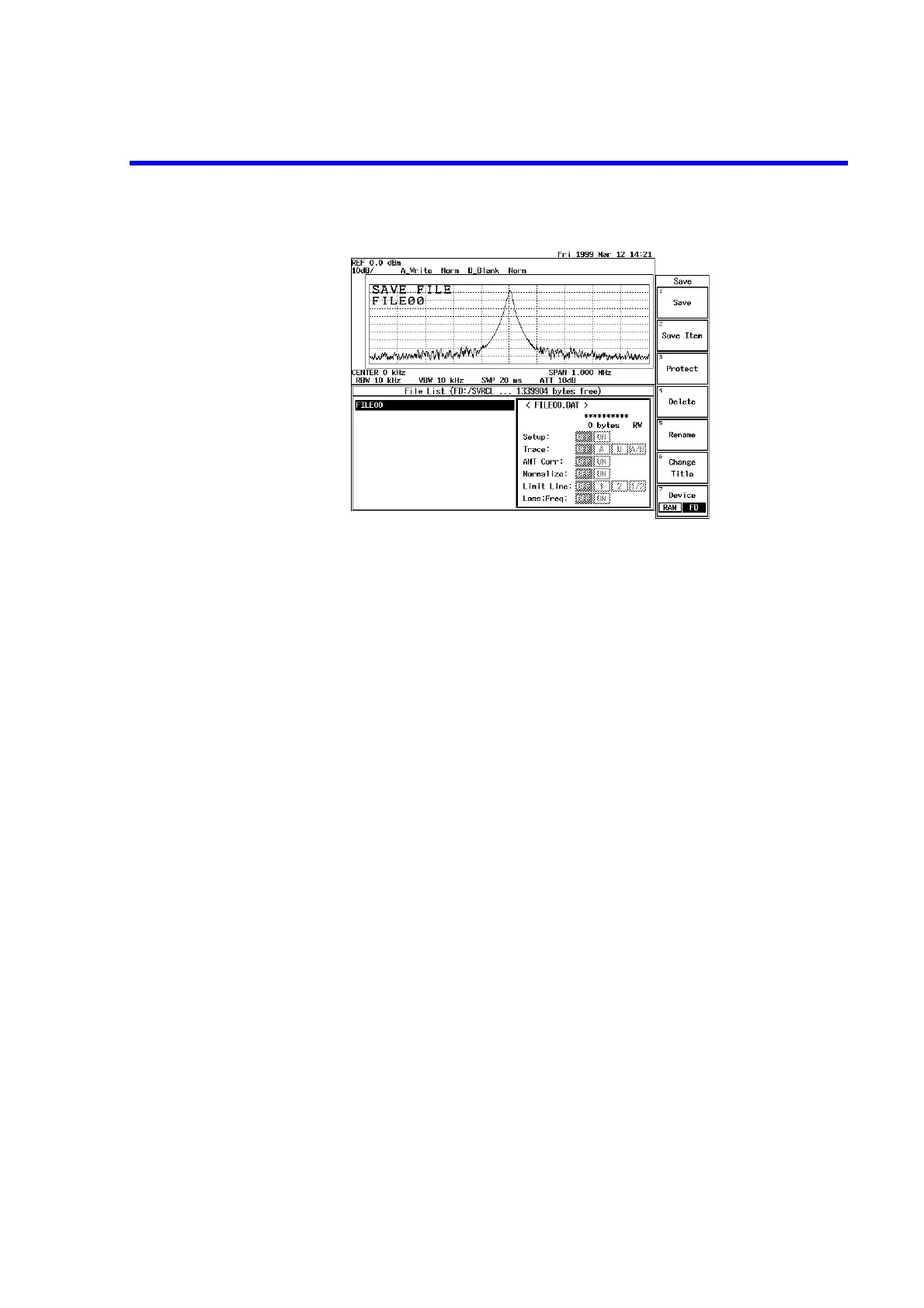

Figure 2-108 Screen Display Showing Floppy Disk as the Destination
Selecting the data to be saved
3. Press Save Item.
The Save Item dialog box is displayed.
4. Select the data you want to save from the Save dialog box.
Setup ON/OFF : current settings
Trace ON/OFF : Trace data being displayed
Ant Corr ON/OFF : Corrected antenna data
Norm Corr ON/OFF : Normalization calibration data (available only when
equipped with OPT74).
Limit Line 1/ 2/ 1/2/ OFF:Limit Line data
Loss:Freq ON/OFF : Loss:Freq table data (Enabled only when the OPT 16,
17, 18 or 19 is installed.)
Trace Level ON/OFF : level values for the trace data (available when trace
data is being saved)
Channel ON/OFF : Channel table data
Spurious ON/OFF : Spurious measurement table data
