R3132 Series Spectrum Analyzer Operation Manual
5.2.8 Input Attenuator Switching Accuracy (R3132/32N/62)
5-29
5.2.8 Input Attenuator Switching Accuracy (R3132/32N/62)
This test measures the input attenuator’s switching accuracy for R3132/32N/62.
The input attenuator switching accuracy is referenced to 10 dB attenuator setting at 30 MHz.
Specification:
With reference to 10 dB input attenuation, at 30 MHz apply for R3132/32N/62
±0.3 dB (0 to 50 dB)
Instruments Required:
Procedures:
Setting the measurement conditions

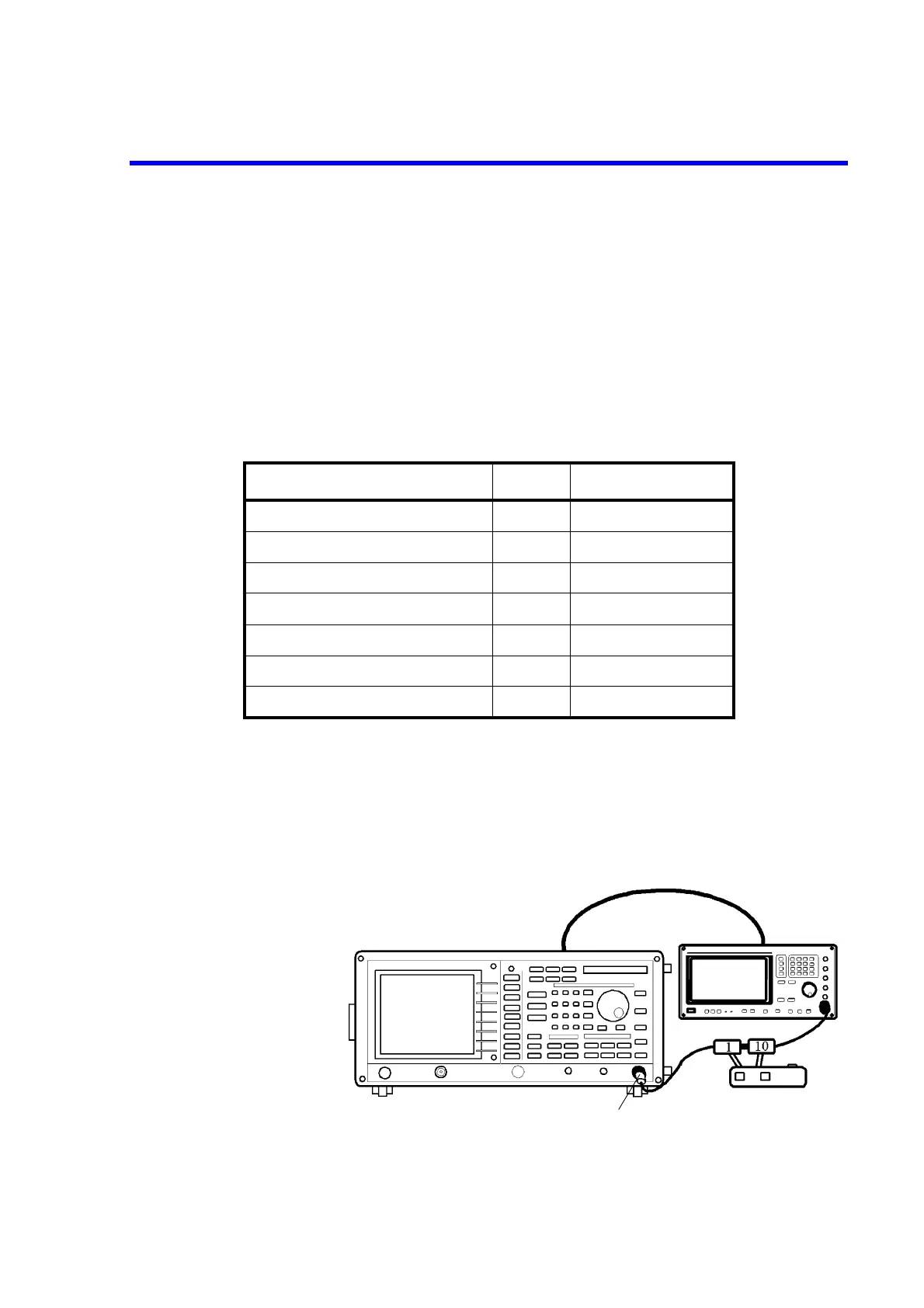

1. Connect the step attenuators as shown in Figure 5-8.
Figure 5-8 Setup of Input Attenuator Switching Accuracy Test (R3132/32N/62)
Instruments Qty. Recommended Model
Signal Generator 1 SMP02
1 dB Step Attenuator 1 HP8494H
10 dB Step Attenuator 1 HP8495H
Attenuator Driver 1 HP11713
Minimum Loss Pad 1
*
HP11852B
RF Cable BNC(m)-BNC(m) 3 MI-09
Adapter N(m)-BNC(f) 4
* R3132N Only
Minimum
Loss Pad (*1)
*1 R3132N only
