2.3.2 Measuring the Occupied Bandwidth (OBW)
2-59
Setting the measurement conditions
This changes the analyzer settings so that the input signal is displayed more clearly.
5. Press FREQ, 1, 8, 9, 5, ., 1, 5 and MHz.
A center frequency of 1895.15 MHz is set.
6. Press SPAN, 8, 0, 0 and kHz.
A frequency span of 800 kHz is set.
Setting the detector mode
7. Press TRACE, Detector and Posi.
The trace is set to positive detector mode.

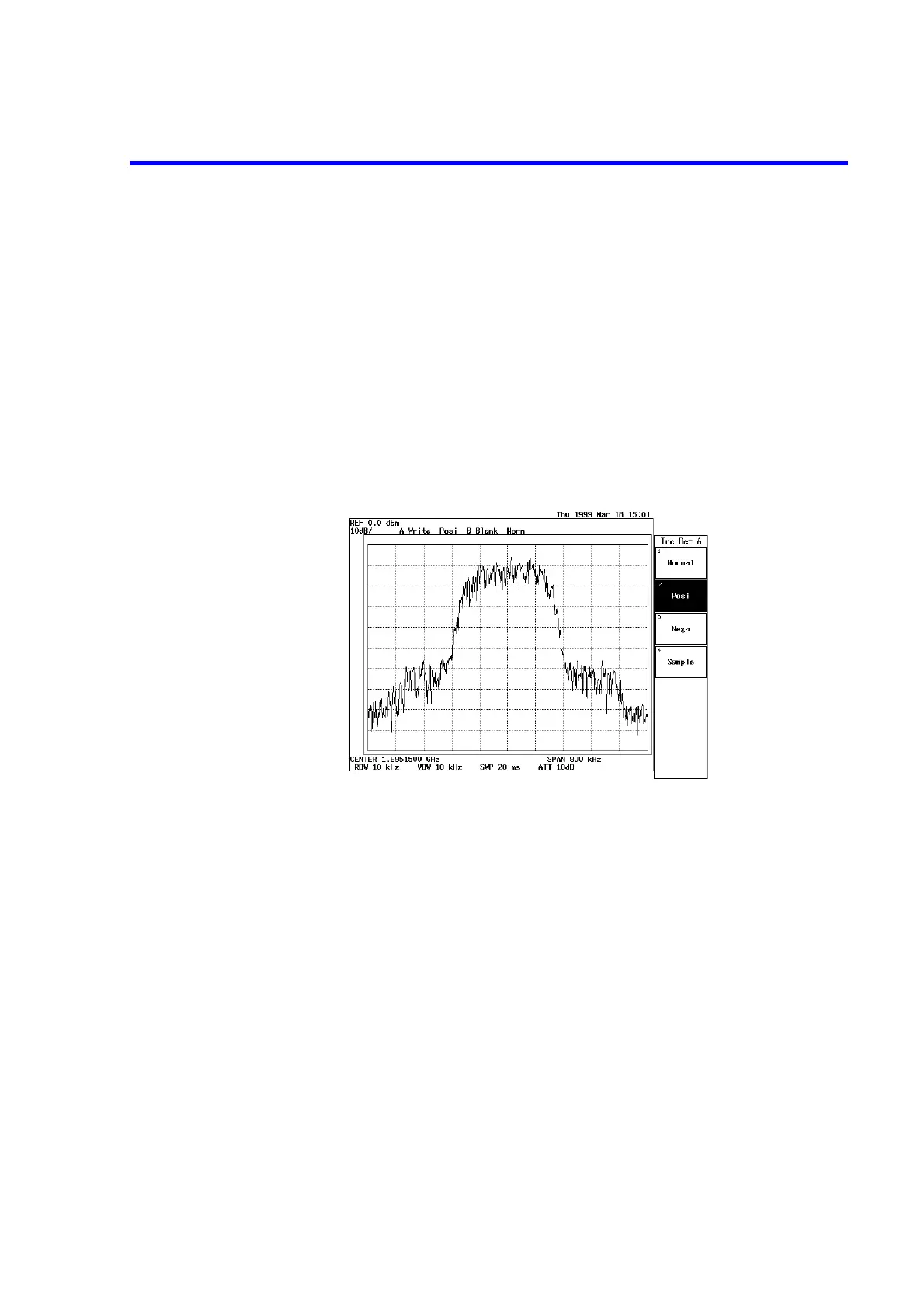

Figure 2-52 Setting the Detector Mode
Measuring the OBW
8. Press POWER MEASURE and OBW.
The OBW measurement is activated and the result displayed.
